0065970 - Generac 2,800 PSI Pressure Washer, CARB (SN: 9156979 - 9961887) (2015) Fuel Tank Parts Diagram

2800 PSI Pressure Washer, CARB

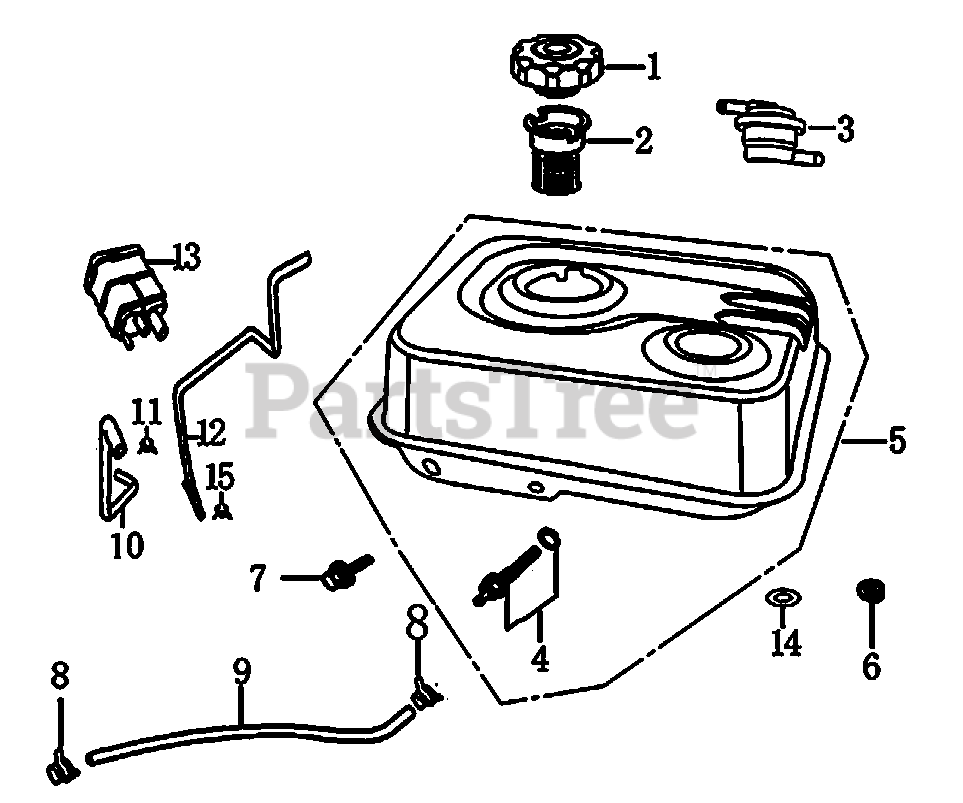

Fuel Tank Parts Diagram

  • Title

1

Generac 0J88870127

CAP COMP., FUEL FILLER

$34.99

$

In Stock, only 3 left!

0

2

Generac 0J35220133

FILTER, FUEL

$4.99

$

In Stock, Qty 20+

0

3

Generac 0J88870128

BREATHER VALVE

$32.99

$

In Stock, Qty 5

0

4

Generac 0J35220132

JOINT ASSY., FUEL TANK

$9.49

$

In Stock, Qty 20+

0

5

Generac 0K10430122

TANK COMP., FUEL

Note: ORDER P/N 0J88870129 FUEL TANK ASSY W/ ROV

$

$

Currently unavailable

6

Generac 0G84420272

NUT, FLANGE

$1.49

$

In Stock, Qty 5

0

7

Generac 0G84420268

BOLT, FLANGE

$1.99

$

In Stock, only 4 left!

0

8

Generac 0J88870130

CLAMP, TUBE

$6.49

$

In Stock, Qty 12

0

9

Generac 0G9757D

TUBE, FUEL

$10.99

$

In Stock, Qty 11

0

10

Generac 0K10470102

PREFORMED HOSE

$7.49

$

Usually ships in 2-12 days

0

11

Generac 0J88870132

CLAMP

$3.49

$

Usually ships in 2-12 days

0

12

Generac 0J35220147

PREFORMED HOSE

$3.49

$

Usually ships in 2-12 days

0

13

Generac 0K10470101

CARBON CANISTER ASSY

$72.99

$

Usually ships in 2-12 days

0

14

Generac 0J35220171

WASHER, RUBBER

$1.49

$

In Stock, Qty 20+

0

15

Generac 0J35220174

CLAMP

$2.99

$

In Stock, only 1 left!

0
