00689100 - Ariens EZT Short Hydro-Gear Transmission Transmission, LH - 00689100 Parts Diagram

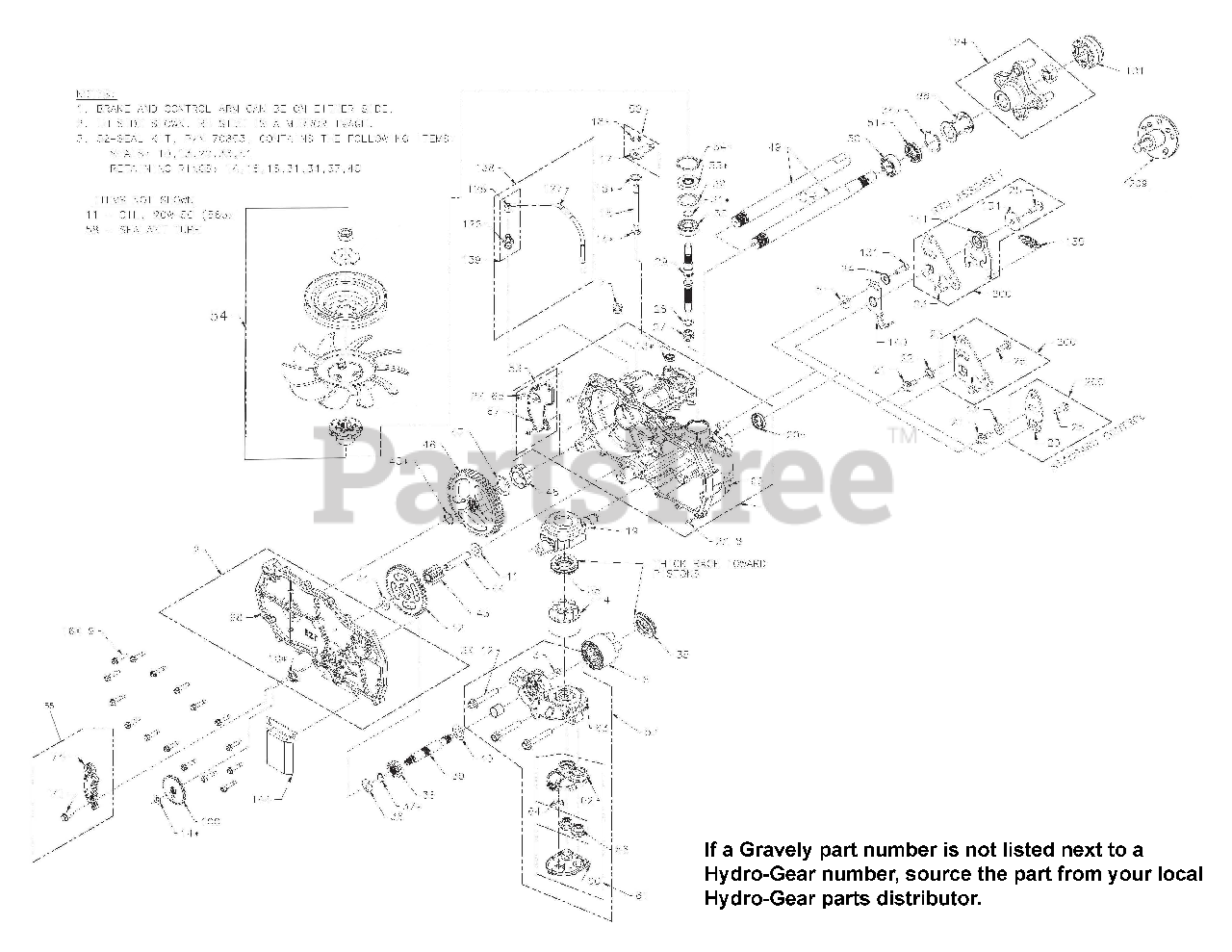

EZT Short Hydro-Gear Transmission

Transmission, LH - 00689100 Parts Diagram

  • Title

1

Ariens 21543985

ASSEMBLY, MAIN HOUSING-LH

Note: INCLUDES ITEMS 8, 65, 66, 37 Hydro-Gear p/n 70862L

$277.99

$

Usually ships in 4-12 days

0

2

Ariens 21548913

HG (70863L)
(Superseded to 21543986)

Note: INCLUDES ITEM 68 Hydro-Gear p/n 70863L

$659.99

$

Usually ships in 4-12 days

0

(2)

BUSHING, .711 X .789 X .778

$

$

Not available

(3)

PLATE, BYPASS

$

$

Not available

4

Ariens 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$145.99

$

Usually ships in 4-12 days

0

5

Ariens 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

6

Ariens 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$103.99

$

Usually ships in 4-12 days

0

7

PLUG, 9/1 6- 18

Note: (METAL) Hydro-Gear p/n 9005110-5600

$

$

Not available

9

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: (SELF TAPPING) Hydro-Gear p/n 53246

$2.99

$

In Stock, only 3 left!

0

10

SEAL, LIP .625 X 1.000 X .250

$

$

Not available

10

SEAL, LIP .50 X .88 X .25

$

$

Not available

11

OIL, 20W-50

Note: 56oz NOT SHOWN

$

$

Not available

(12)

BOLT, HEX FLAGE3/8- 24 X 2.5

$

$

Not available

13

SEAL, LIP .375 X .75 X .25

$

$

Not available

14

RING, RETAINING .375 EXT

$

$

Not available

15

Ariens 21543844

ROD, BYPASS

Note: Hydro-Gear p/n 51625

$

$

Not available

16

RING, RETAINING .750 INT

$

$

Not available

18

RING, RETAINING .375 EXT

Note: (PUSHNUT)

$

$

Not available

19

Ariens 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

20

SEAL, LIP 18 X 32 X 7

$

$

Not available

24

Ariens 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

(26)

ASSEMBLY, FITTING 9/16

$

$

Not available

27

Ariens 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

(27)

HOSE, EXP TANK

$

$

Not available

28

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

(28)

CAP, BARBED VENT

$

$

Not available

29

Ariens 21543785

SHAFT, INPUT

Note: Hydro-Gear p/n 51062

$106.99

$

Usually ships in 4-12 days

0

30

Ariens 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$21.99

$

Usually ships in 4-12 days

0

31

RING, RETAINING WIRE .561 ID

$

$

Not available

32

Ariens 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$6.49

$

In Stock, only 1 left!

0

33

SEAL, LIP 1 7 X 40 X 7

$

$

Not available

34

RING, RETAINING

$

$

Not available

35

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$19.99

$

Usually ships in 4-12 days

0

36

Ariens 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

38

Ariens 21543807

GEAR, 13T PINNION

Note: Hydro-Gear p/n 51130

$5.99

$

Usually ships in 4-12 days

0

(38)

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Not available

39

Ariens 21543849

SHAFT, MOTOR

Note: Hydro-Gear p/n 51632

$54.99

$

Usually ships in 4-12 days

0

(39)

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Not available

40

Ariens 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

41

Ariens 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

42

Ariens 21543806

GEAR, 10T/48T

Note: Hydro-Gear p/n 51129

$44.99

$

In Stock, only 1 left!

0

43

Ariens 21543781

GEAR, 10T JACKSHAFT

Note: Hydro-Gear p/n 51043

$

$

Not available

44

Ariens 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

45

RING, SPIRAL RETAINING

$

$

Not available

46

GEAR, 52T BULL

Note: Hydro-Gear p/n 52541

$

$

Not available

47

WASHER, I.018 X I.57 X .I05

Note: Hydro-Gear p/n 52532

$

$

Not available

48

SLEEVE BEARING

Note: (INBOARD) Hydro-Gear p/n 52542

$

$

Not available

49

SHAFT, AXLE

Note: Hydro-Gear p/n 53705

$

$

Not available

50

BEARING, SLEEVE, I.00 X I.57 X .62

Note: Hydro-Gear p/n 51517

$

$

Not available

51

SEAL, LIP 1.00 X 1.57 X .25

$

$

Not available

51

SEAL, LIP .375 X .75 X .25

$

$

Not available

52

Ariens 21543935

KIT, SEALS AND RETAINING

Note: Hydro-Gear p/n 70853

$82.99

$

In Stock, Qty 5

0

53

Ariens 21543987

KIT, EXPANSION PLATE LH

Note: INCLUDES ITEMS 65, 67 Hydro-Gear p/n 70868L

$14.99

$

Usually ships in 4-12 days

0

54

Ariens 21543736

FAN PULLEY KIT 4.5X1.625

Note: INCLUDES ITEMS 119, 120, 121, 122, 123 Hydro-Gear p/n 72134

$87.99

$

In Stock, Qty 20+

0

55

Ariens 00951000

BRAKE ARM, EZT #70865
(Superseded to 51517600)

Note: Hydro-Gear p/n 70865

$29.99

$

In Stock, only 1 left!

0

(56)

CHECK PLUG ASSEMBLY , .027, WASHER

$

$

Not available

57

KIT, CENTER SECTION, W/FILTER - LH

Note: Hydro-Gear p/n 71529

$

$

Not available

58

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

59

Ariens 21543937

KIT, BYPASS ARM

Note: Hydro-Gear p/n 70891

$12.99

$

Usually ships in 4-12 days

0

(60)

ASSEMBLY, COVER

$

$

Not available

61

Ariens 21543958

KIT, FILTER

Note: Hydro-Gear p/n 71497

$19.99

$

Usually ships in 4-12 days

0

(62)

FILTER, BASE

$

$

Not available

(63)

CENTER SECTION, LH, 7P

$

$

Not available

(64)

MAGNET

$

$

Not available

(71)

BOLT, 1/4-20 X 1 SHOULDER W/PATCH

$

$

Not available

(74)

ARM, BRAKE

$

$

Not available

98

TUBE, AXLE

Note: Hydro-Gear p/n 53730

$

$

Not available

100

Ariens 21543851

DISC, COG BRAKE

Note: Hydro-Gear p/n 51635

$22.99

$

In Stock, only 2 left!

0

101

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

124

Ariens 21544061

KIT, HUB 4 BOLT

Note: Hydro-Gear p/n 71446

$96.99

$

Usually ships in 4-12 days

0

(126)

ASSEMBLY, FITTING 9/I6

$

$

Not available

(127)

HOSE, EXP TANK

$

$

Not available

(128)

CAP, BARBED VENT

$

$

Not available

131

KIT, RTN SCREWS

Note: Hydro-Gear p/n 71341

$

$

Not available

135

Ariens 21543876

SPRING, EXTENSION

Note: Hydro-Gear p/n 52401

$4.99

$

In Stock, Qty 15

0

138

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Not available

139

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Not available

140

Ariens 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$22.99

$

Usually ships in 4-12 days

0

200

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear p/n 71592

$

$

Not available

209

Ariens 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: (UNIVERSAL) Hydro-Gear p/n 72320

$461.99

$

Usually ships in 4-12 days

0
