01-08K802 (C-81) - Toro Garden Tractor (1981) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

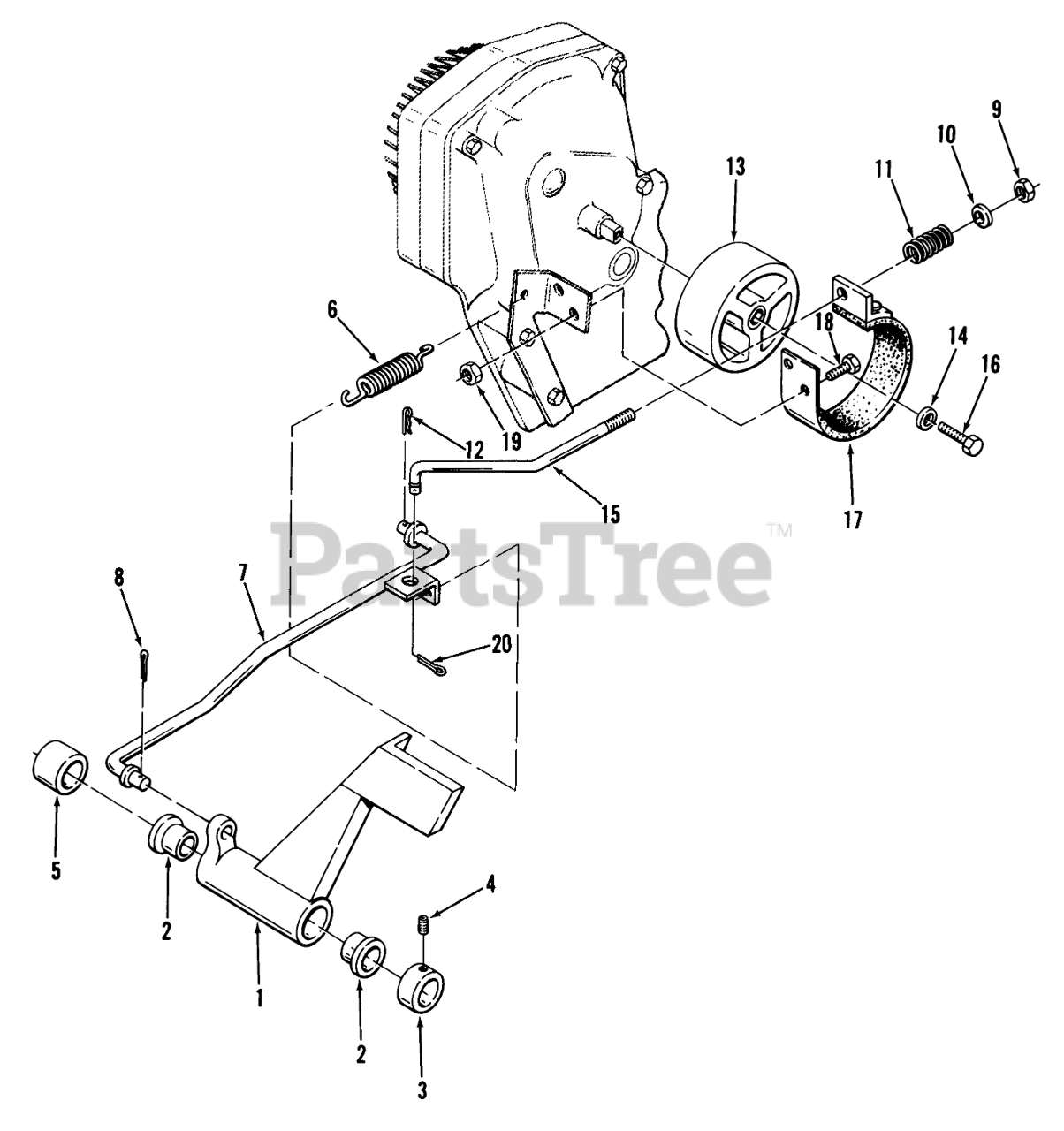

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 102747

PEDAL R

$

$

Not available

2

Toro 6254

BUSHING

$21.99

$

In Stock, only 2 left!

0

3

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

4

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

5

Toro 4064

Spacer
(Superseded to 703269)

$130.99

$

Usually ships in 3-6 days

0

6

Toro 108514

SPRING-EXTENSION

$

$

Not available

7

Toro 108318

Brake Rod-Front

$

$

Not available

8

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 108680

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

12

Toro 933503

USE 933503P PIN

$6.49

$

Usually ships in 3-6 days

0

13

Toro 106719

DRUM-BRAKE

$116.99

$

Usually ships in 3-6 days

0

14

Toro 920228

WASHER -4

$

$

Not available

15

Toro 108495

Brake Rod-Rear

$

$

Not available

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

17

Toro 9593

BRAKE BAND ASM

$165.99

$

In Stock, only 1 left!

0

18

Toro 908001

Bolt
(Superseded to 321-2)

$3.99

$

In Stock, only 3 left!

0

19

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

20

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0
