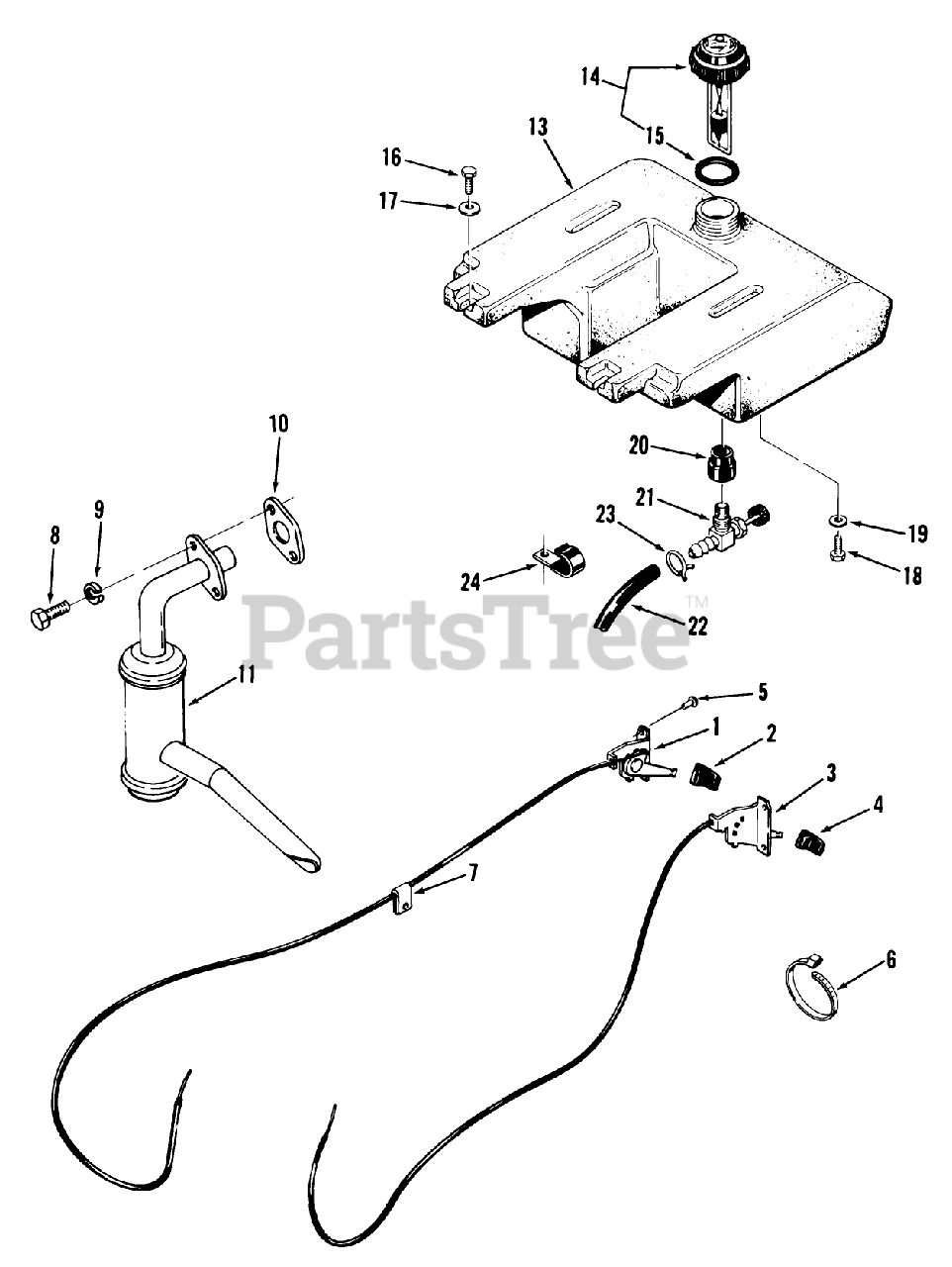

01-11B803 (1100) - Toro Special Garden Tractor (1980) Fuel And Exhaust System Parts Diagram

Special Garden Tractor

Fuel And Exhaust System Parts Diagram

  • Title

1

Toro 101835

DISCONTINUED

$

$

Not available

2

Toro 108509

KNOB-THROTTLE

$8.49

$

In Stock, only 2 left!

0

3

Toro 106752

CONTROL-CHOKE

$

$

Not available

4

Toro 108510

KNOB-CHOKE

$10.99

$

In Stock, Qty 8

0

5

Toro 932795

Pip Rivet

$

$

Currently unavailable

6

Toro 100571

DISCONTINUED

$

$

Not available

7

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

8

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

9

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

10

Toro 107763

USE BRIGGS #270917

$

$

Not available

11

Toro 108626

DISCONTINUED

$

$

Not available

13

Toro 106234

TANK-FUEL

$497.99

$

Usually ships in 3-6 days

0

14

Toro 106945

ASSY-GAUGE CAP

$34.99

$

In Stock, only 2 left!

0

15

Toro 106931

DISCONTINUED

$

$

Not available

16

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$

$

Not available

17

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

19

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 2 left!

0

22

Toro 108085

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

23

Toro 950154

DISCONTINUED

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0
