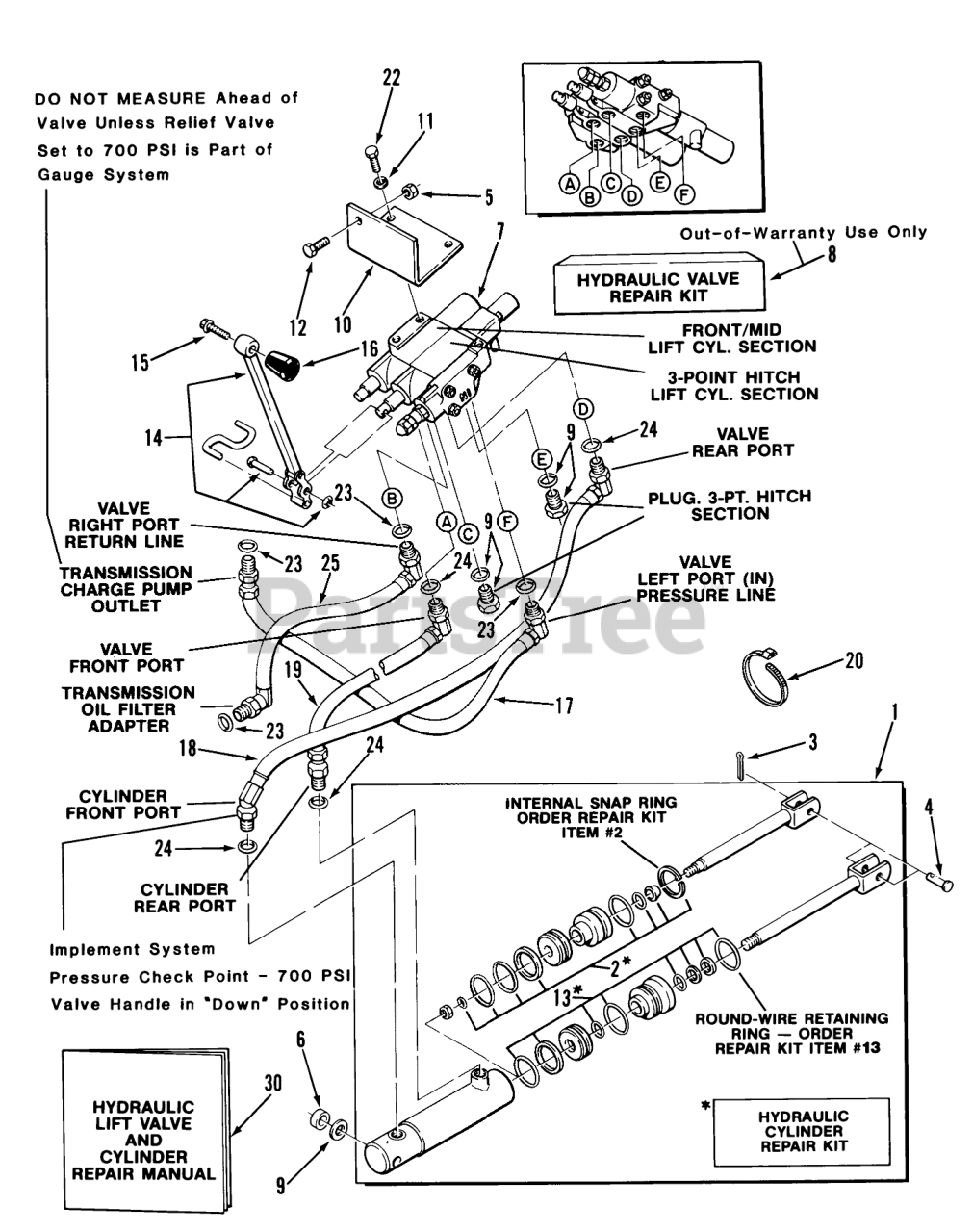

01-19KE01 (C-195) - Toro Garden Tractor (1982) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 108872

CYLINDER

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$135.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 932997

CLEVIS PIN

$

$

Not available

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

6

Toro 4064

Spacer
(Superseded to 703269)

$108.99

$

Usually ships in 3-6 days

0

7

Toro 109679

Hydraulic Valve

$

$

Not available

8

Toro 105178

S.A. Repair Kit
(Superseded to 110976)

$

$

Not available

9

Toro 109718

Plug (With 973310 0-Ring)

$

$

Not available

10

Toro 109750

Mounting Bracket

$

$

Not available

11

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

13

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

14

Toro 105145

S/A HANDLE&HARDWARE

$

$

Not available

15

Toro 960154

SCREW

$

$

Not available

16

Toro 102892

KNOB

$31.99

$

Usually ships in 3-6 days

0

17

Toro 106651

ASSY-HYDRAULIC HOSE

$

$

Not available

18

Toro 102765

Hydraulic Hose Assy

$

$

Not available

19

Toro 101421

HYD HOSE ASSY

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 926696

Bolt
(Superseded to 9266964)

$7.99

$

Usually ships in 3-6 days

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

24

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

25

Toro 109757

Hose-Transmission To Valve

$

$

Not available

30

Toro 810242R1

Repair Manual

$

$

Currently unavailable
