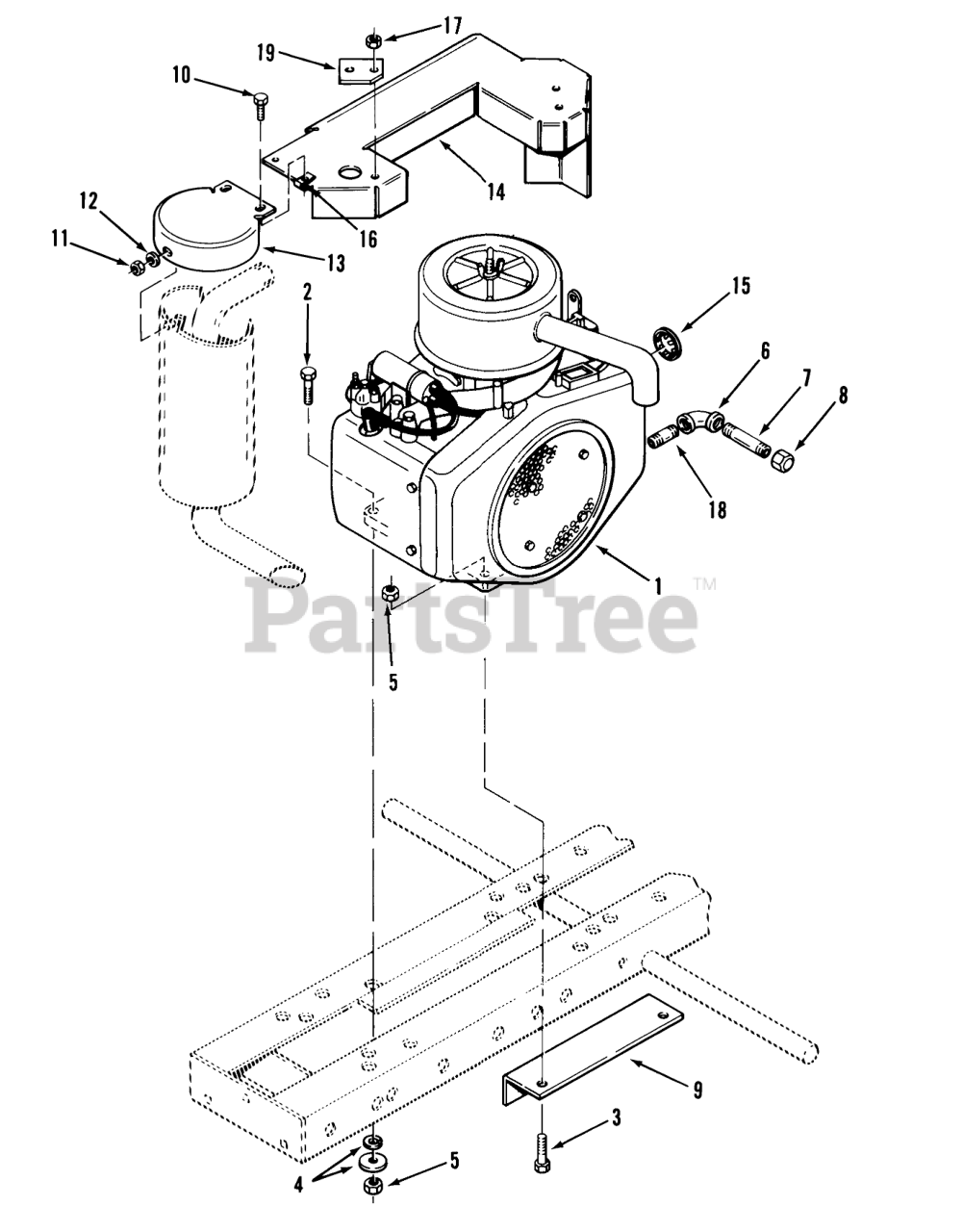

01-19KE01 (C-195) - Toro Garden Tractor (1982) TWIN CYLINDER ENGINE Parts Diagram

Garden Tractor

TWIN CYLINDER ENGINE Parts Diagram

  • Title

1

Toro 109680

Engine (Illustrated) 19 HP Kohler KT-19S Spec 49110-01-19KE01 Only

Note: Engines and Engine Parts are available through the engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part

$

$

Currently unavailable

1

Toro 110090

Engine 19 HP Kohler KT-19S Spec 49146-01-19KE02 Only

Note: Engines and Engine Parts are available through the engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part

$

$

Currently unavailable

2

Toro 911436

Bolt 3/8-16 x 1 1/2 Grade 8-01-19KE01 Only

$

$

Currently unavailable

2

Toro 911435

Bolt 3/8-16 x 1
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

3

Toro 911435

Bolt 3/8-16 x 1
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

4

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

5

Toro 110238

Nut 3/8-16 Grade 8

$

$

Not available

6

Toro 943023

Elbow 3/8

$

$

Not available

7

Toro 943335

Nipple 3/8 x 5

$

$

Not available

8

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

9

Toro 109677

Engine Support

$

$

Not available

10

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

12

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

13

Toro 106864

CAP-MUFFLER SHIELD

$

$

Not available

14

Toro 106865

Heat Shield

$

$

Not available

14

Toro 110079

ASSY HEAT SHIELD

$

$

Not available

15

Toro 935103

Plug Button

$

$

Not available

16

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

17

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

18

Toro 943326

Nipple 3/8 x 1 1/2

$

$

Not available

19

Toro 110121

Cover (Used on 01-19KE01 with 110079 Shield-Illustrated)

$

$

Not available
