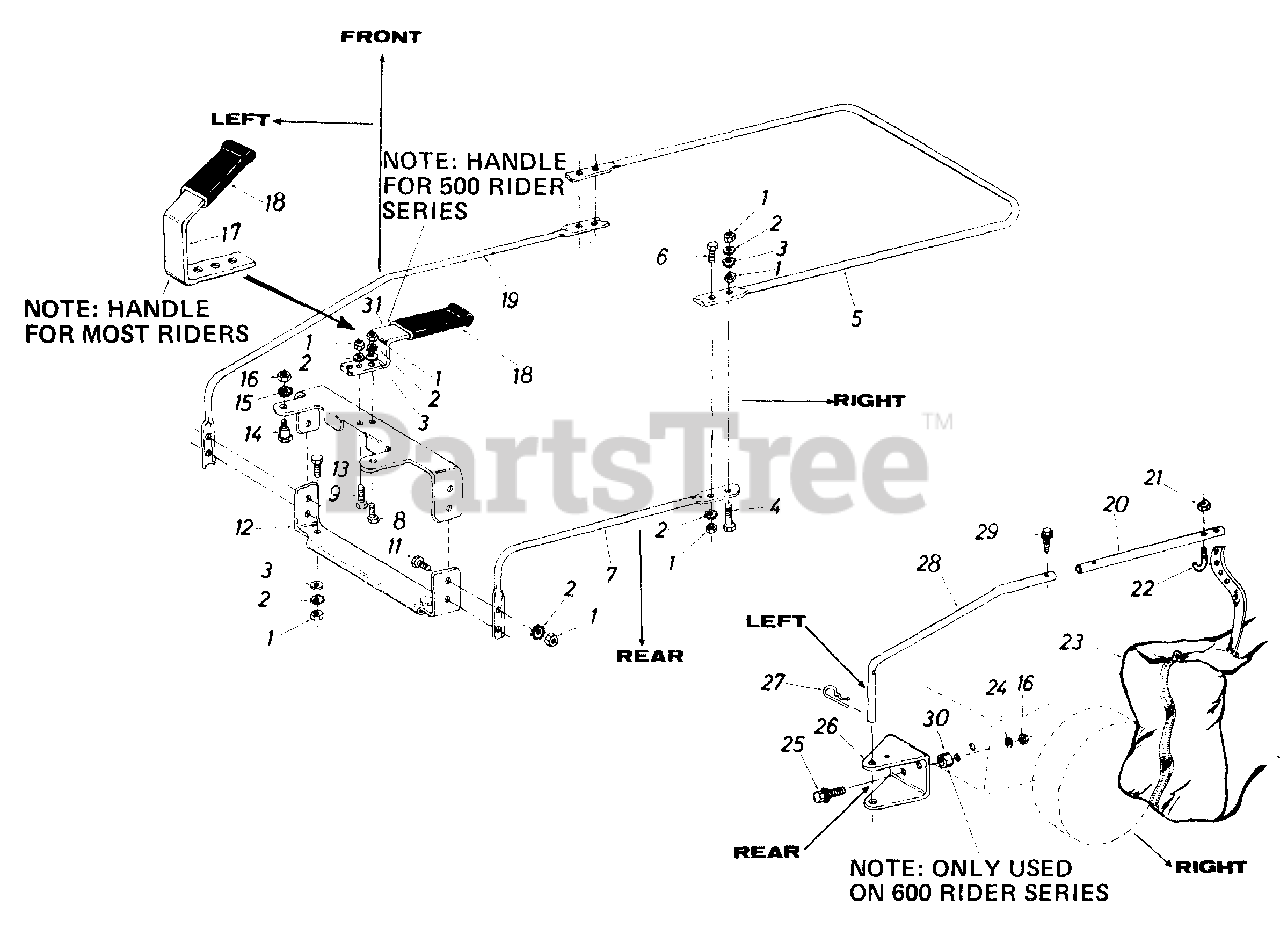

015 (194-015-100) - Cub Cadet Grass Catcher (1984) Grass Catcher Parts Diagram

Grass Catcher

Grass Catcher Parts Diagram

  • Title

1

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0222

Ext. L-Wash. 1/4" Scr.

$6.49

$

In Stock, only 3 left!

0

3

Cub Cadet 736-0142

Fl-Wash. .281 I.D. x .50 O.D.

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.

$5.99

$

In Stock, only 2 left!

0

5

Cub Cadet 11706

Upper Frame Half

$

$

Not available

6

Cub Cadet 710-0597

Hex Scr. 1/4-20 x 1.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 11705

Lower Frame Tubing

$

$

Currently unavailable

8

Cub Cadet 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0252

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$4.49

$

In Stock, Qty 20+

0

?10

Cub Cadet 11703

Upper Opening Support

$

$

Not available

11

Cub Cadet 710-0597

Hex Scr. 1/4-20 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 11702

Lower Opening Support

$

$

Not available

13

Cub Cadet 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

14

Cub Cadet 738-0141

Shld. Scr. .437 Dia. x .350
(Superseded to 938-0141)

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0607

Ext. L-Wash. 5/16" Scr.

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 11707

Handle

$

$

Not available

18

Cub Cadet 720-0142

Grip-Black

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 11704

Lower Frame Arm

$

$

Not available

20

Cub Cadet 11710

Upper Holding Arm

Variations

11710-0637

Cub Cadet 11710-0637

ARM-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 711-0576

Hook

$

$

Not available

23

Cub Cadet 764-0121

Grass Catcher Bag

$

$

Not available

24

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

Cub Cadet 710-0442

Hex Sems Bolt 5/16-18 x 1.50" Lg."
(Superseded to 710-0805A)

Note: (For 600 Rider Series Only)

$4.99

$

In Stock, Qty 7

0

26

Cub Cadet 11708

Hitch Bracket

$

$

Not available

27

Cub Cadet 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 12

0

28

Cub Cadet 11709

Lower Holding Arm

$

$

Not available

29

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 22550

Spacer

$

$

Not available

31

Cub Cadet 15498

Handle

Note: (500 Rider Series Only)

$

$

Not available
