01597900 - Ariens Hydro-Gear Transmission Transmission, RH - 01597900 Parts Diagram

Hydro-Gear Transmission

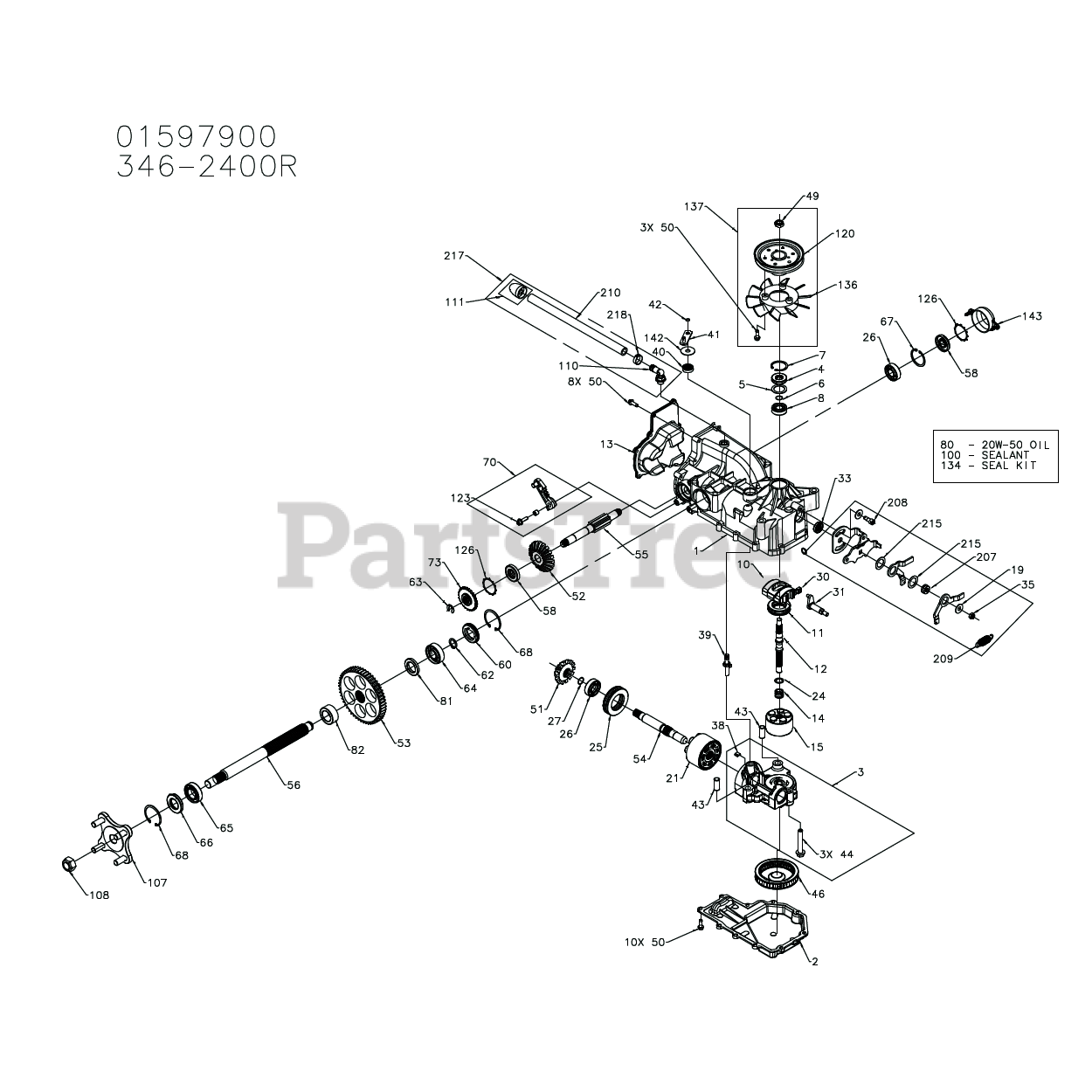

Transmission, RH - 01597900 Parts Diagram

  • Title

1

Ariens 21543915

KIT, SHAFT-MAIN HOUSING

$

$

Not available

2

Ariens 21543983

HSG, IZT LOWER

$

$

Not available

3

Ariens 21543916

KIT, C-SECTION

$290.99

$

Usually ships in 4-12 days

0

4

Ariens 21543998

SEAL, LIP 15X35X7

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 21543964

WASHER .98X1.37X.04

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 08613300

RING, WIRE RETAINING

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 08608800

RING. RETAINING

$

$

Not available

8

Ariens 08613200

BEARING, SHAFT BALL

$

$

Not available

10

Ariens 08609000

SWASHPLATE. VARIABLE

$

$

Not available

11

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

12

Ariens 21543719

SHAFT, INPUT

$92.99

$

Usually ships in 4-12 days

0

13

Ariens 21543984

COVER, END IZT

$

$

Not available

14

Ariens 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

15

Ariens 21543889

KIT, 10 CC BLOCK

$103.99

$

Usually ships in 4-12 days

0

19

WASHER .34 X .88 X .06

Note: HG44130

$

$

Not available

21

ASSEMBLY BLOCK

Note: HG70082

$

$

Not available

24

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

25

Ariens 21543747

BRG, THRUST BALL 42X68X16

$

$

Not available

26

Ariens 21543738

BRG, BALL 17X40X12

$21.99

$

Usually ships in 4-12 days

0

27

Ariens 21543960

RING, RET WIRE .561 ID

$1.99

$

In Stock, only 2 left!

0

30

Ariens 08610700

GUIDE. SLOT

$

$

Not available

31

Ariens 08610800

ARM. TRUNNION TAPERED SQUARE

$58.99

$

Usually ships in 4-12 days

0

33

Ariens 21543997

SEAL, LIP 12X25X7

$

$

Not available

35

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

38

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

39

Ariens 08609800

ACTUATOR, BYPASS

$

$

Not available

40

Ariens 08613800

SEAL, LIP

$

$

Not available

41

Ariens 08611100

ARM. BYPASS

$

$

Not available

42

RING, RETAINING

Note: HG44870

$

$

Not available

43

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

44

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

46

Ariens 21543779

FILTER

$73.99

$

Usually ships in 4-12 days

0

49

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

50

Ariens 21543759

HFHCS 1/4-20X.75

$2.49

$

Usually ships in 4-12 days

0

51

Ariens 21543754

GEAR, BEVEL 14T

$

$

Not available

52

Ariens 21543755

GEAR, BEVEL 19T

$

$

Not available

53

Ariens 21543756

GEAR, SPUR 53T

$

$

Not available

54

Ariens 21543761

SHAFT, MOTOR

$67.99

$

Usually ships in 4-12 days

0

55

Ariens 21543827

SHAFT, BRAKE

$

$

Not available

56

Ariens 21543757

AXLE, 1.0X12.3

$160.99

$

In Stock, only 1 left!

0

58

Ariens 21543816

SEAL, LIP 17X40X7

$15.99

$

Usually ships in 4-12 days

0

60

Ariens 21543780

PLUG, SEAL 1.86

$8.49

$

Usually ships in 4-12 days

0

62

Ariens 21543762

RING, RET .75 EXT

$

$

Not available

63

Ariens 21543800

RING, RET .440 EXT

$2.49

$

Usually ships in 4-12 days

0

64

Ariens 21543753

BRG, BALL 20X47X14

$

$

Not available

65

Ariens 21543752

BRG, BALL 25X47X12

$30.99

$

In Stock, only 2 left!

0

66

Ariens 21543758

SEAL, LIP 25X47X7

$7.99

$

In Stock, Qty 6

0

67

Ariens 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

68

Ariens 21543763

RING, RET 1.87 INT

$3.99

$

Usually ships in 4-12 days

0

70

Ariens 00372000

BRAKE ARM,RH IZT
(Superseded to 51514200)

$56.99

$

In Stock, only 2 left!

0

73

Ariens 21543760

BRAKE, PARK SPLINE

$14.99

$

Usually ships in 4-12 days

0

80

Ariens 00058100

FLUID, HYDRO 20W50 QT

Note: Optional Oil Approximatley 77 oz

$14.99

$

Usually ships in 4-12 days

0

80

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Reccomended Oil Approximatley 77 oz

$14.99

$

In Stock, Qty 20+

0

81

Ariens 21543864

SPACER

$6.49

$

Usually ships in 4-12 days

0

82

Ariens 21543865

SPACER

$

$

Not available

100

Ariens 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

107

ASSEMBLY, HUB

Note: HG70314

$

$

Not available

108

NUT, HEX LOCK 3/4-16

Note: HG50863

$

$

Not available

110

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

111

Note: Not Available Separate, Included In Item Number 70

$

$

Not available

120

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

123

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

126

Ariens 21543828

RING, RET 1.43"

$

$

Not available

134

Ariens 21543905

KIT, SEAL

$63.99

$

Usually ships in 4-12 days

0

136

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

137

KIT, FAN/PULLEY

Note: HG70591

$

$

Not available

142

Ariens 21543855

WASHER, .392 X 1.250 X .0

$

$

Not available

143

Ariens 21543853

CAP, BRAKE

$

$

Not available

207

Ariens 08616400

SPACER, TRUNNION

$

$

Not available

208

Ariens 21543832

SHCS 5/16-24X.75

$

$

Not available

209

Ariens 21543876

SPRING, EXTENSION

$4.99

$

In Stock, only 2 left!

0

210

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

215

Ariens 21543834

WASHER

$

$

Not available

216

Ariens 21543910

KIT, RTN SCISSOR

$

$

Not available

217

Ariens 21543939

BREATHER ASSEMBLY

$33.99

$

Usually ships in 4-12 days

0

218

Note: Not Available Separate, Included In Item Number 217

$

$

Not available
