01815-0 - Briggs & Stratton 12kW Home Standby Generator Control Panel (192390) Parts Diagram

12kW Home Standby Generator

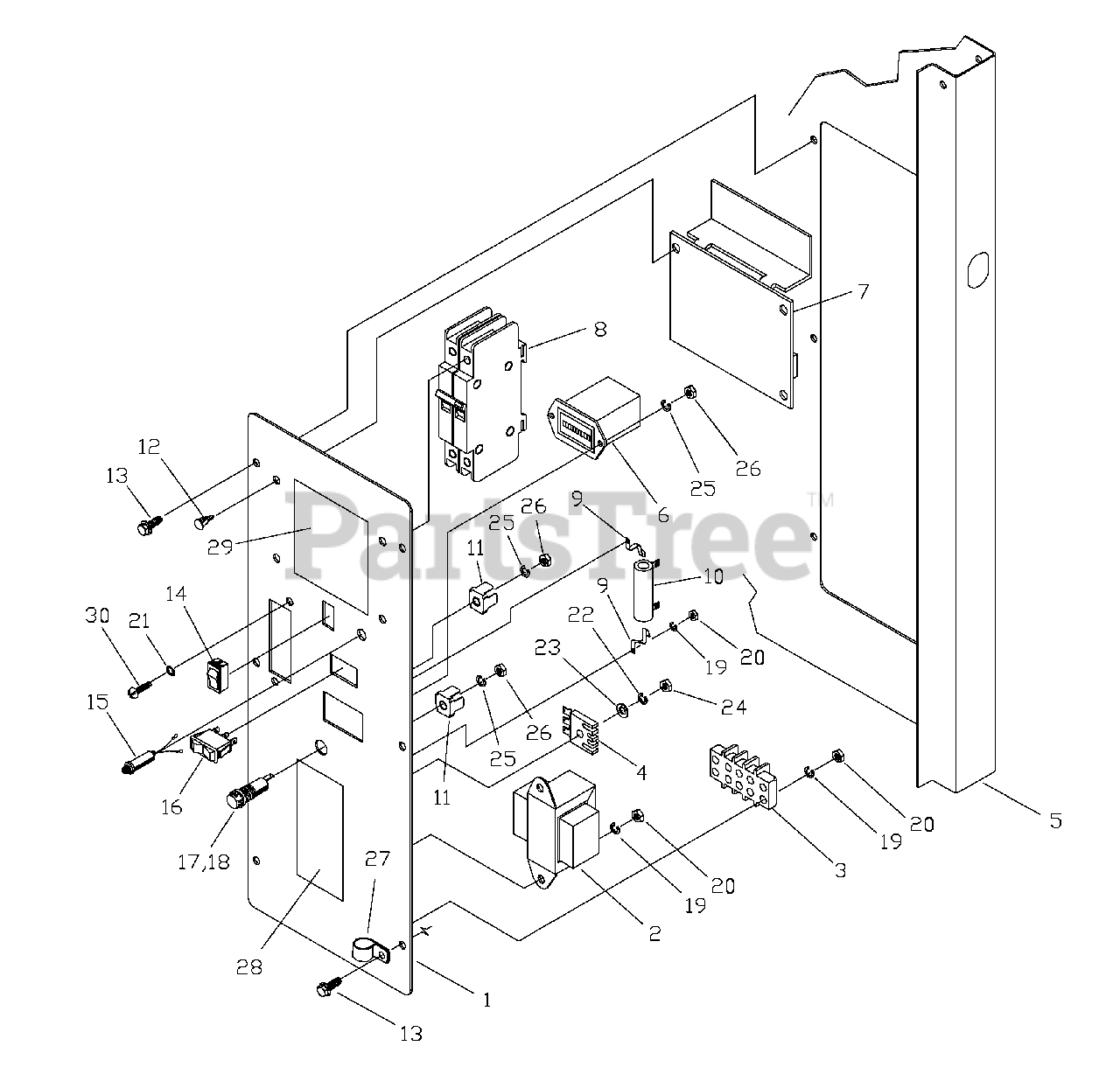

Control Panel (192390) Parts Diagram

  • Title

1

Briggs & Stratton 190902GS

Control Panel, with Silk Screen

$

$

Currently unavailable

2

Briggs & Stratton 192366GS

Transformer

$87.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192320GS

Strip, Terminal

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 65795GS

Rectifier, Battery Charge

$

$

Not available

5

Briggs & Stratton H185967GS

Bulkhead, Engine Side

$341.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 77604GS

Hour Meter

$112.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191652GS

Control Board

$439.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 190818LGS

Circuit Breaker, 60 Amp

$142.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4893GS

Bracket, Resistor

$

$

Not available

10

Briggs & Stratton B4867GS

Resistor, 25W, .5 Ohm

$91.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 57345GS

Neutral, 4 Prong

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186413GS

Standoff, Control Board

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B4300GS

Bolt, Swage, 1/4"- 20
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 87799GS

Switch, Set Exercise

$7.49

$

In Stock, Qty 15

0

15

Briggs & Stratton B5133GS

Diode, Light

$16.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 186443GS

Switch, Auto/Off/Manual

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 191302GS

Holder, Fuse

$

$

Not available

18

Briggs & Stratton 22676GS

Fuse, 15 Amp AGC

$6.49

$

In Stock, only 1 left!

0

19

-----

* Lock Washer, M4

$

$

Not available

20

-----

* Nut, M4 - 0.7

$

$

Not available

21

-----

* Washer, Int. Shakeproof, #6

$

$

Not available

22

-----

* Lock Washer, M5

$

$

Not available

23

-----

* Flat Washer, M5

$

$

Not available

24

-----

* Nut, M5 - 0.8

$

$

Not available

25

-----

* Lock Washer, M3

$

$

Not available

26

-----

* Nut, M3 - 0.5

$

$

Not available

27

Briggs & Stratton 187060GS

Clamp, Cable 3/4" I.D.
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186645GS

Decal, Caution Electrical Shock
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186648GS

Decal, Control Panel Fault Description
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

PPHMS, #6 - 32 x 1/2"
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201057GS

Assy, Connector Service

Note: (Not Illustrated)

$59.99

$

Usually ships in 2-12 days

0
