01815-0 - Briggs & Stratton 12kW Home Standby Generator Enclosure (192389) Parts Diagram

12kW Home Standby Generator

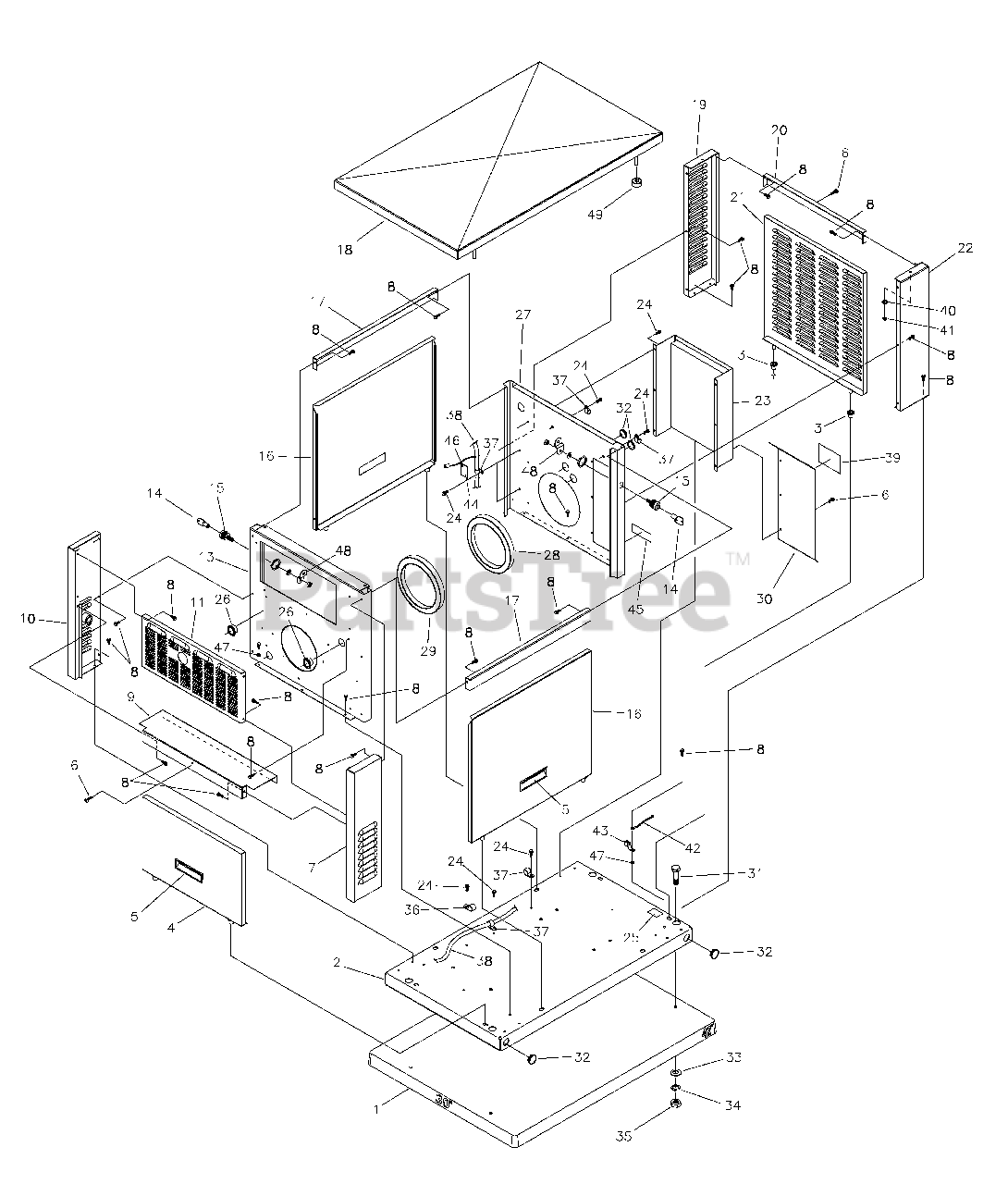

Enclosure (192389) Parts Diagram

  • Title

1

Briggs & Stratton 186564GS

Pad, Foundation Base w/ Holes
(Superseded to 186104GS)

$278.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton H185972GS

Base, Mounting

$566.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 186061GS

Bushing, Stem

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191410GS

Assy, Door, Alt., SRV

Note: (Includes 2 of Item 3, 1 of Item 5)

$154.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186049GS

Handle, Door, Recessed Pull

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 189792GS

Pphms, #10-32 x 5/8"

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191408GS

Assy, Corner, RH, SRV

Note: (Includes Insulation)

$224.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4300GS

Swag Bolt, 1/4" - 20
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton H185968GS

Baffle, Horizontal, Alt. Side

$178.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 191409GS

Assy, Corner, LH, SRV

Note: (Includes Insulation)

$201.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton H185965GS

Panel, Muffler Air Out

$224.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton H191972GS

Bulkhead, Alternator Side

$162.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B5053GS

Key, Lock

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 186172GS

Assy, Lock/Doors

$102.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 191406GS

Assy, Door, SRV

Note: (Includes Insulation, 2 of Item 3, 1 of Item 5)

$111.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton H186046GS

Rail, Support Upper Front/Back

$103.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton H187234GS

Roof, with Insulation

$387.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton H185963GS

Corner, Engine Air Inlet Right

$217.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton H186047GS

Rail, Support Upper Engine Side

$89.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton H185969GS

Door, Engine Air Inlet

$267.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton H185964GS

Corner, Engine, Left Side

$193.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton H187235GS

Baffle, with Insulation

$59.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 74908GS

Taptite, M5

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B4986AGS

Decal, Ground
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 186173GS

Bushing, Snap, 1" I.D.

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton H185967GS

Bulkhead, Engine Side

$341.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186065GS

Seal, Foam Engine Air Inlet
(Superseded to 770801)

$122.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 191994GS

Seal, Foam Alternator Air Inlet
(Superseded to 770802)

$52.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton H186760GS

Cover, Control Panel

$116.99

$

Usually ships in 2-12 days

0

31

-----

* HHCS, 3/8" - 16 x 1"

$

$

Not available

32

Briggs & Stratton 185976GS

Plug, Hole 1-1/8"

$3.99

$

Usually ships in 2-12 days

0

33

-----

* Flatwasher, 3/8"

$

$

Not available

34

-----

* Lockwasher, 3/8"

$

$

Not available

35

-----

* Nut, 3/8"

$

$

Not available

36

Briggs & Stratton 187060GS

Clamp, 3/4" Nylon
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 192767GS

Clamp, 1/4" Nylon

$2.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192344GS

Wire Harness, Engine

$193.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B5082AGS

Decal, Danger High Voltage

$2.99

$

Usually ships in 2-12 days

0

40

-----

* Flatwasher, M6

$

$

Not available

41

Briggs & Stratton 67885GS

Nut, Nylock M6 x 1.0

$6.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 186790AGS

Wire, Ground, To Control Panel

$17.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186345GS

Lug, Ground

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 186642GS

Decal, LP/Natural Gas
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 192467GS

Decal, Terminal Strip

$4.99

$

Usually ships in 2-12 days

0

46

-----

* Tie Wrap, 4" Black

$

$

Not available

47

-----

* Washer, Ext. M6 - 1/4" Shakeproof

$

$

Not available

48

Briggs & Stratton 186174GS

Cambar, Lock

$23.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 194415GS

Rubber Washer

$5.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187008GS

Kit, Door Seal

Note: (Not Illustrated)

$29.99

$

Usually ships in 2-12 days

0
