01815-0 - Briggs & Stratton 12kW Home Standby Generator Main Unit (192386) Parts Diagram

12kW Home Standby Generator

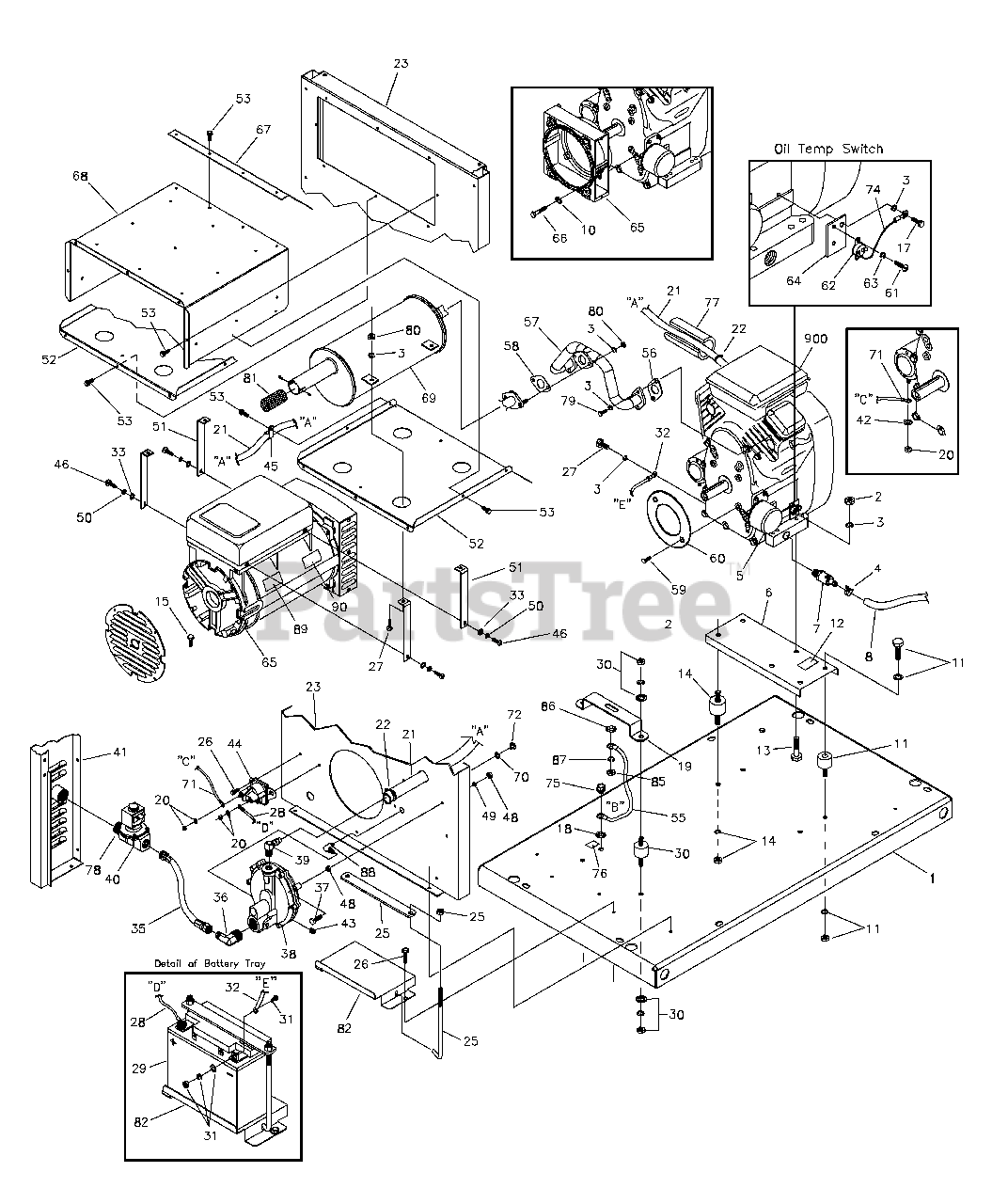

Main Unit (192386) Parts Diagram

  • Title

1

Briggs & Stratton H185972GS

Base, Mount

$566.99

$

Usually ships in 2-12 days

0

2

-----

* Nut, 5/16" - 18

$

$

Not available

3

-----

* Lockwasher, 5/16" - M8

$

$

Not available

4

Briggs & Stratton 48031JGS

Clip, Hoseband

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 492932S

Filter, Oil

$12.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton H186285GS

Pan, Engine Mounting

$97.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 186071GS

Valve, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 186430GS

Hose, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

10

-----

* Lockwasher, 3/8"

$

$

Not available

11

Briggs & Stratton 194254GS

Kit, Vibration Mount

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186649GS

Decal, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

13

-----

* HHCS, 5/16" - 18 x 1-3/4"

$

$

Not available

14

Briggs & Stratton 194259GS

Kit, Vibration Mount

$7.49

$

Usually ships in 2-12 days

0

15

-----

* HHCS, M10 - 1.5 x 30 Lg

$

$

Not available

17

-----

* HHCS, M8 - 1.25 x 12

$

$

Not available

18

-----

* Washer, 3/8 Ext., Shakeproof

$

$

Not available

19

Briggs & Stratton H188046GS

Support, Alt.

$38.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194251GS

Kit, Starter Contact Hardware

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186152GS

Hose, Gas Regulator to Engine

$74.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 57822GS

Clamp, Hose

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton H191972GS

Bulkhead, Alternator Side

$162.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 194250GS

Kit, J-Bolt & Battery Strap

$32.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B4300GS

Swage Bolt, 1/4" - 20 x 1/2"
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

27

-----

* HHCS, M8 1.25 x 16

$

$

Not available

28

Briggs & Stratton 188574GS

Cable, Battery Positive

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188443GS

Battery, 33AH, w/Hardware

$229.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 194253GS

Kit, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 194252GS

Kit, Battery Hardware

$12.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 188573GS

Cable, Battery Negative

$20.99

$

Usually ships in 2-12 days

0

33

-----

* Washer, Flat, #10

$

$

Not available

35

Briggs & Stratton 186148GS

Hose, Gas - Regulator

$76.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 186151GS

Elbow, Brass, 3/4" NPT x 1/2" Gas

$19.99

$

Usually ships in 2-12 days

0

37

-----

* HHCS, M6 - 1.0 x 30

$

$

Not available

38

Briggs & Stratton 193291GS

Regulator, Gas Fuel
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 186150GS

Elbow, Brass 3/8 NPT

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4773GS

Solenoid, Gas Fuel
(Superseded to 194683GS)

$386.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 191409GS

Assy, Corner, LH, SRV

$201.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 96137GS

Plug, 1/8" - 27

$2.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 691656

Solenoid, Bracket

$31.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 192669GS

Clamp, Hose, "J"

$2.49

$

Usually ships in 2-12 days

0

46

-----

* HHCS, #10 - 32 x 3/4" Lg.

$

$

Not available

47

Briggs & Stratton 187049GS

Plug, Dome

$8.49

$

Usually ships in 2-12 days

0

48

-----

* Nut, M6 - 1.0

$

$

Not available

49

-----

* Lockwasher, M6 - 1/4"

$

$

Not available

50

-----

* Lock Washer, #10

$

$

Not available

51

Briggs & Stratton H186125GS

Bracket, Muffler

$41.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton H186030GS

Base, Muffler Box

$131.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 56893GS

Crimptite, 10 - 24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton A6344GS

Fitting, Barbed, 90°, 1/8" NPT

$15.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 186790DGS

Wire, Ground

$7.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 806425

Gasket, Manifold

$5.49

$

In Stock, only 3 left!

0

57

Briggs & Stratton 195143GS

Kit, Manifold With Gaskets

$63.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 186062GS

Gasket, Manifold, Muffler

$7.49

$

Usually ships in 2-12 days

0

59

-----

* HHCS, 5/16" x 3/4" Sems

$

$

Not available

60

Briggs & Stratton B4260GS

Disk, Air Blocker

$48.99

$

Usually ships in 2-12 days

0

61

-----

* PPHMS, #4 - 40 x .019"

$

$

Not available

62

Briggs & Stratton 186205GS

Switch, Thermodisk Oil Temp.

$107.99

$

Usually ships in 2-12 days

0

63

-----

* Lockwasher, #4 Int. Tooth

$

$

Not available

64

Briggs & Stratton 186206GS

Plate, Oil Temp Switch

$6.49

$

Usually ships in 2-12 days

0

65

-----

Assy, Alternator

$

$

Not available

66

-----

* HHCS, 3/8 - 16 x 1-1/4"

$

$

Not available

67

Briggs & Stratton H186320GS

Deflector, 45° Muffler Box

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton H186038GS

Box, Muffler

$224.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 192676GS

Muffler

$169.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 189295GS

Washer, .432 x 1 x .064
(Superseded to 22304GS)

$3.49

$

In Stock, only 1 left!

0

71

Briggs & Stratton 185939CGS

Cable, Starter

$

$

Not available

72

Briggs & Stratton 189294GS

E-Ring

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 186790CGS

Wire, Ground

$17.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 59637GS

Taptite, 3/8" - 16 x 3/4"
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

76

Briggs & Stratton B4986AGS

Decal, Ground, Green
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 186551GS

Insulation, Fuel Hose

$13.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 26915GS

Nipple, 3/4" NPT

$3.49

$

Usually ships in 2-12 days

0

79

-----

* SHCS, M8 - 1.25 x 20

$

$

Not available

80

-----

* Nut, M8 - 1.25

$

$

Not available

81

Briggs & Stratton 187277GS

Screen, Spark Arrestor w/Screws

$12.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton H189951GS

Tray, Battery Support

$56.99

$

Usually ships in 2-12 days

0

85

-----

* Nut, M10 - 1.5

$

$

Not available

86

-----

* Washer, Shakeproof, M10

$

$

Not available

87

-----

* Lockwasher, M10

$

$

Not available

88

Briggs & Stratton A6344GS

Fitting, Barb, 90°

$15.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 186647GS

Decal, Warning Outdoor Use Only
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 193506GS

Decal, Hot Surface

$7.99

$

Usually ships in 2-12 days

0

900

-----

** Engine

$

$

Not available

--

Briggs & Stratton 191041GS

Kit, Led Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

Cap, Funnel, Oil Bottle

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B5053GS

Assy, Key

Note: (Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B5478GS

Paint, Touch-Up

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 190824GS

Hose, Flex

Note: (Not Illustrated)

$125.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193873GS

Kit, Sound Shield

Note: (Not Illustrated)

$134.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195200GS

Decal, Attn Standby Equipment

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 01915

Warmer, Battery, 240 Volt

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 01916

Warmer, Oil, 240 Volt

Note: (Optional Accessory)

$310.99

$

Usually ships in 2-12 days

0
