01938-0 - Briggs & Stratton 10kW Home Standby Generator Alternator Parts Diagram

10kW Home Standby Generator

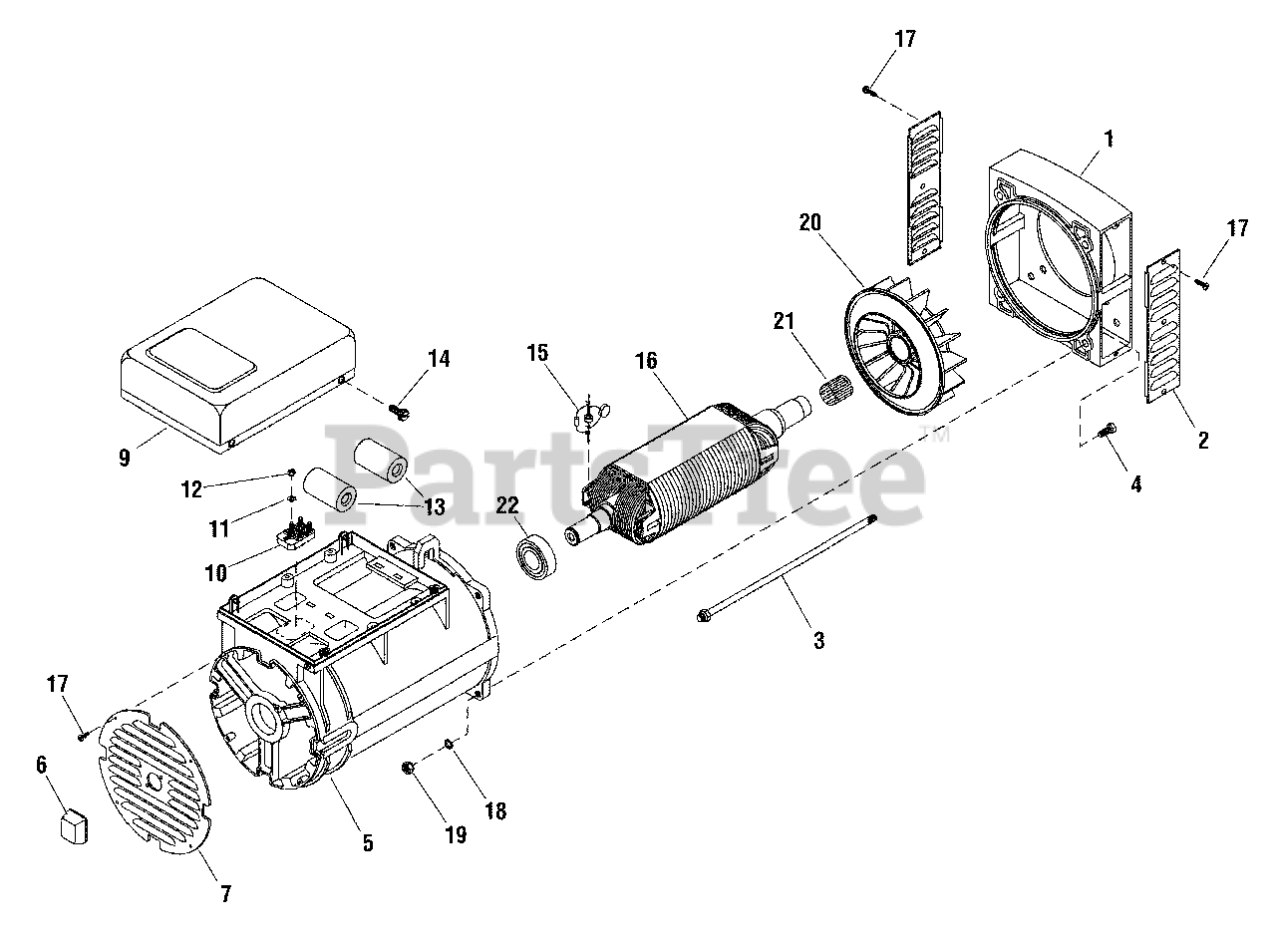

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 192970GS

ADAPTER, Engine

$143.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 192973GS

GRID

$29.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209142GS

BOLT

$121.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 31183GS

SCREW

$8.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192969GS

STATOR

$1394.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192962GS

PLUG

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192966GS

COVER, Rear Bearing

$26.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192967GS

COVER, Capacitor

$63.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192968GS

BLOCK, Terminal

$41.99

$

Usually ships in 2-12 days

0

11

* WASHER, Flat, #10-M5

$

$

Not available

12

* NUT, 10-32

$

$

Not available

13

Briggs & Stratton 312699GS

KIT, Capacitor

$186.99

$

In Stock, only 1 left!

0

14

* SCREW, Phillips Head, 10-32 x 3/4

$

$

Not available

15

Briggs & Stratton 192972GS

DIODE
(Superseded to 194579GS)

$99.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192971GS

ROTOR

$682.99

$

Usually ships in 2-12 days

0

17

* SCREW, M8 x 1.25 x 35mm

$

$

Not available

18

* WASHER, Shakeproof, EXT. M6-1/4

$

$

Not available

19

* NUT, 1/4-20

$

$

Not available

20

Briggs & Stratton 206897GS

FAN

$139.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 206927GS

RING, Fixing

$23.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206594GS

BEARING

$91.99

$

Usually ships in 2-12 days

0
