01938-0 - Briggs & Stratton 10kW Home Standby Generator Control Panel Parts Diagram

10kW Home Standby Generator

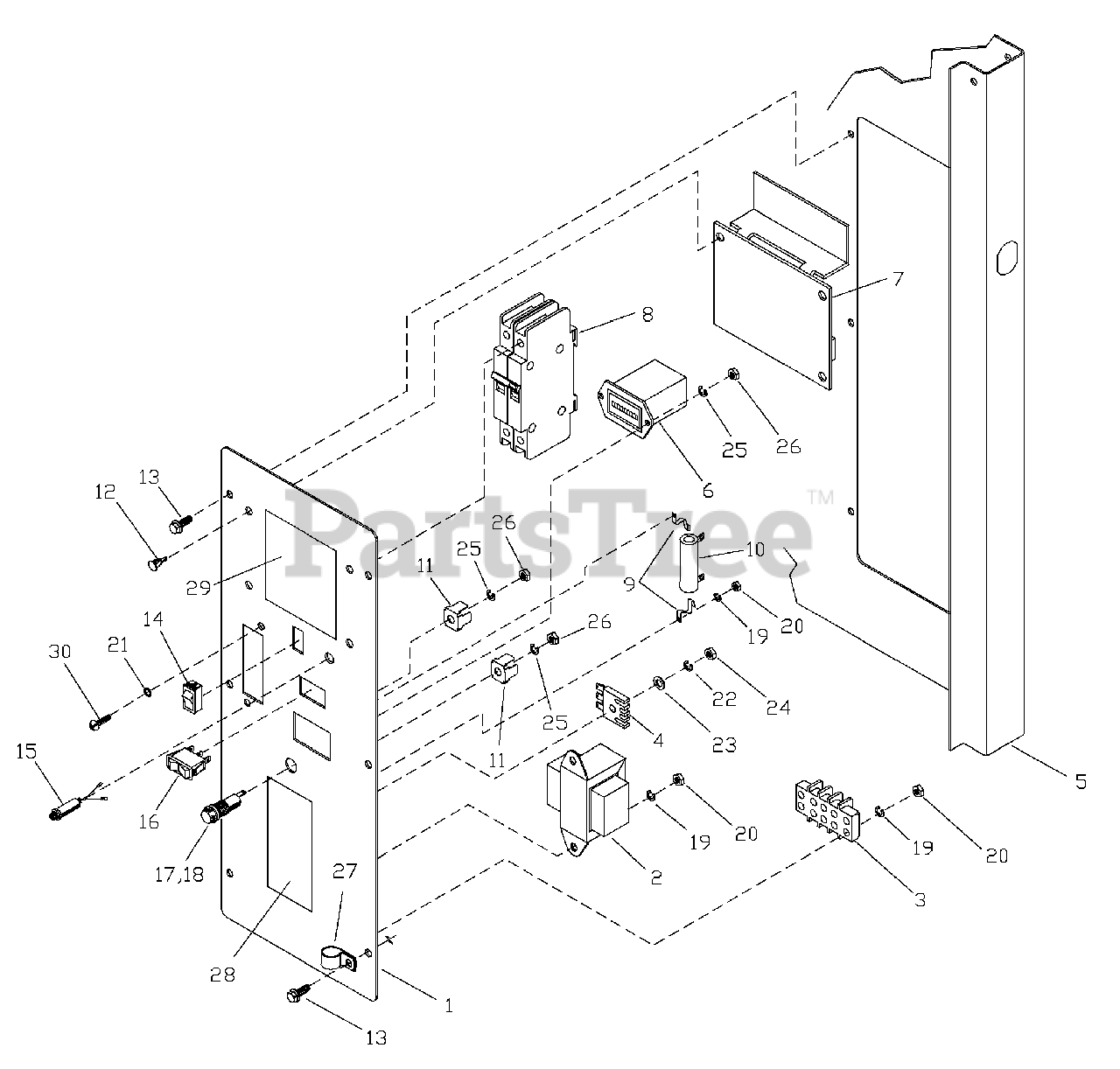

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 190902GS

PANEL

$

$

Currently unavailable

2

Briggs & Stratton 192366GS

TRANSFORMER

$87.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192320GS

TERMINAL

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

5

Briggs & Stratton H185967GS

BULKHEAD, Engine

$341.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 202602GS

HOURMETER

$97.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191652GS

BOARD, Circuit

$439.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 208790GS

BREAKER, Circuit, 50A

$115.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4893GS

BRACKET

$

$

Not available

10

Briggs & Stratton B4867GS

RESISTOR

$91.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 57345GS

LUG

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186413GS

STANDOFF

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 87799GS

SWITCH, ON/OFF

$7.49

$

In Stock, Qty 15

0

15

Briggs & Stratton B5133GS

LAMP, LED

$16.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 186443GS

SWITCH, ON/OFF/ON

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 191302GS

HOLDER, Fuse

$

$

Not available

18

Briggs & Stratton 22676GS

FUSE

$6.49

$

In Stock, only 1 left!

0

19

* WASHER, Lock, M4

$

$

Not available

20

* NUT, M4-0.7

$

$

Not available

21

* WASHER, Shakeproof, INT. #6

$

$

Not available

22

* WASHER, Lock, M5

$

$

Not available

23

* WASHER, Flat, M5

$

$

Not available

24

* NUT, M5-0.8

$

$

Not available

25

* WASHER, Lock, M3

$

$

Not available

26

* NUT, M3-0.5

$

$

Not available

27

Briggs & Stratton 187060GS

CLAMP
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186645GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186648GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

30

* SCREW, Phillips Head, #6-32 x 1/2

$

$

Not available

--

Briggs & Stratton 201057GS

Assy, Connector Service

Note: (Not Illustrated)

$59.99

$

Usually ships in 2-12 days

0
