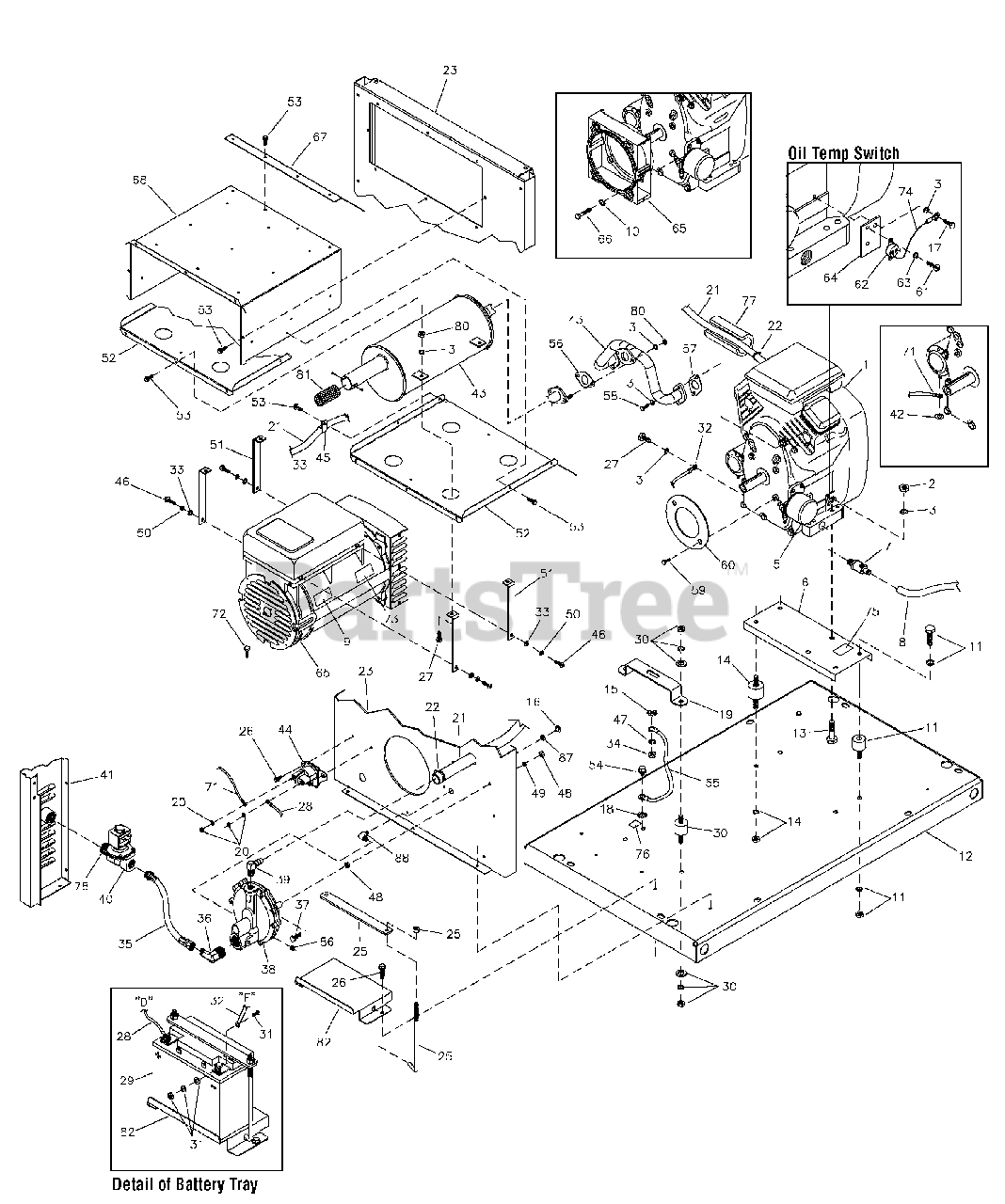

01938-0 - Briggs & Stratton 10kW Home Standby Generator Main Unit Parts Diagram

10kW Home Standby Generator

Main Unit Parts Diagram

  • Title

1

** ENGINE

$

$

Not available

2

* NUT, 5/16-18

$

$

Not available

3

* WASHER, Lock, M8 5/16

$

$

Not available

5

Briggs & Stratton 492932S

FILTER-OIL

$12.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton H186285GS

SUPPORT-ENGINE

$97.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 204025GS

VALVE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 186430GS

HOSE
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 186647GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

10

* WASHER, Lock, 3/8

$

$

Not available

11

Briggs & Stratton 194254GS

MOUNT, Vibration

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton H185972GS

BASE

$566.99

$

Usually ships in 2-12 days

0

13

* CAPSCREW, Hex, Head, 5/16-18 x 1-3/4

$

$

Not available

14

Briggs & Stratton 194259GS

MOUNT, Vibration

$7.49

$

Usually ships in 2-12 days

0

15

* WASHER, Shakeproof, M10

$

$

Not available

16

Briggs & Stratton 189294GS

E-RING

$3.49

$

Usually ships in 2-12 days

0

17

* CAPSCREW, Hex, Head, M8-1.25 x 12

$

$

Not available

18

* WASHER, Shakeproof, 3/8 EXT.

$

$

Not available

19

Briggs & Stratton H188046GS

SUPPORT, Alternator

$38.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194251GS

KIT, Hardware

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186152GS

HOSE, Flex, NG/LPG

$74.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 57822GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 191972GS

BULKHEAD, Alternator
(Superseded to H191972GS)

$162.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 194250GS

KIT, Hardware, Battery

$32.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

27

* CAPSCREW, Hex, Head, M8 1.25 x 16

$

$

Not available

28

Briggs & Stratton 188574GS

WIRE

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188443GS

BATTERY

$229.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 194253GS

MOUNT, Vibration

$11.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 194252GS

KIT, Hardware, Battery Terminal

$12.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 188573GS

WIRE

$20.99

$

Usually ships in 2-12 days

0

33

* WASHER, Flat, #10

$

$

Not available

34

* NUT, M10-1.5

$

$

Not available

35

Briggs & Stratton 186148GS

HOSE

$76.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 186151GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

37

* CAPSCREW, Hex, Head, M6-1 x 30

$

$

Not available

38

Briggs & Stratton 193291GS

REGULATOR, NG/LPG
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 186150GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 191409GS

CORNER, HGS

$201.99

$

Usually ships in 2-12 days

0

42

* WASHER, Shakeproof, EXT M6

$

$

Not available

43

Briggs & Stratton 205626GS

KIT, Exhaust

$223.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 192669GS

CLAMP

$2.49

$

Usually ships in 2-12 days

0

46

* CAPSCREW, Hex, Head, #10-32 x 3/4

$

$

Not available

47

* WASHER, Lock, M18

$

$

Not available

48

* NUT, M6-1

$

$

Not available

49

* WASHER, Lock, M6-1/4

$

$

Not available

50

* WASHER, Lock, #10

$

$

Not available

51

Briggs & Stratton H191993GS

BRACKET

$38.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton H186030GS

BASE

$131.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 59637GS

TAPTITE
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

55

Briggs & Stratton 186790AGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 186062GS

GASKET, Exhaust

$7.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

58

* CAPSCREW, Socket Head, M8-1.25 x 20

$

$

Not available

59

* CAPSCREW, Hex, Head, SEMS, 5/16 x 3/4

$

$

Not available

60

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

61

* SCREW, Phillips Head, #4-40 x .019

$

$

Not available

62

Briggs & Stratton 186205GS

SWITCH, Temp

$107.99

$

Usually ships in 2-12 days

0

63

* G499INT. TOOTH

$

$

Not available

64

Briggs & Stratton 186206GS

PLATE, Temp Switch

$6.49

$

Usually ships in 2-12 days

0

65

ALTERNATOR, Complete

$

$

Not available

66

* CAPSCREW, Hex, Head, 3/8-16 x 1-1/4

$

$

Not available

67

Briggs & Stratton H186320GS

COLLECTOR

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton H186038GS

BOX, Muffler Top

$224.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 185939CGS

WIRE

$

$

Not available

72

* CAPSCREW, Hex, Head, M10-1.5 x 30

$

$

Not available

73

Briggs & Stratton 193506GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 186790CGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 186551GS

INSULATION

$13.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 26915GS

FITTING

$3.49

$

Usually ships in 2-12 days

0

80

* NUT, M8-1.25

$

$

Not available

81

Briggs & Stratton 187277GS

ARRESTOR, Spark

$12.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton H189951GS

TRAY, Battery

$56.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 96137GS

PLUG

$2.49

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 189295GS

WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, only 1 left!

0

88

Briggs & Stratton A6344GS

FITTING

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP, Funnel

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192385GS

MANUAL, Installation

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192384GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277106

MANUAL, Engine
(Superseded to 276344TRI)

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B5053GS

KEY, Latch

Note: (Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B5478GS

PAINT, Touch Up, Tan

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195022GS

KIT, LED Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0
