02-11BH01 (SB-371) - Toro Lawn Tractor (1982) Frame, Sheet Metal And Covers 2 Parts Diagram

Lawn Tractor

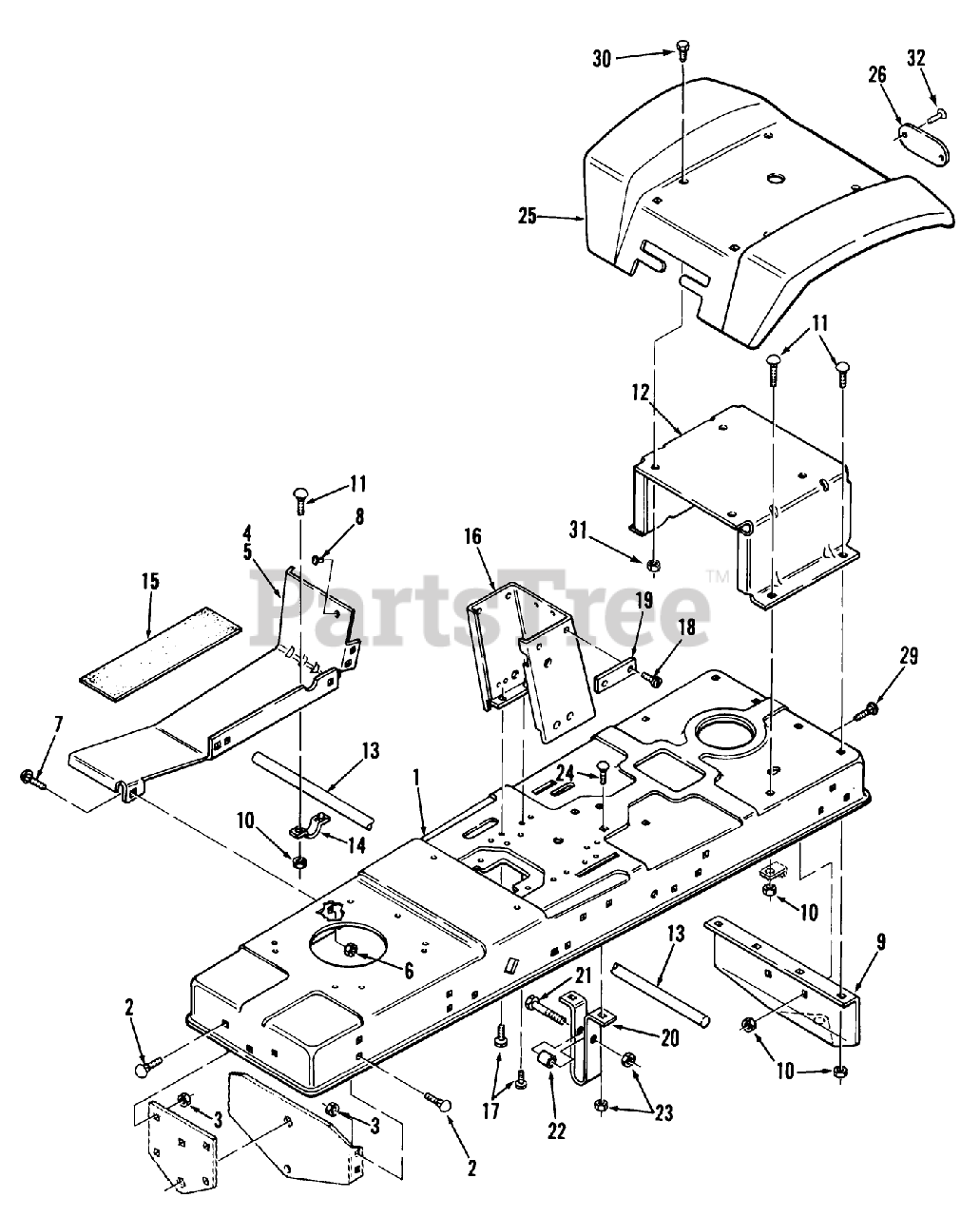

Frame, Sheet Metal And Covers 2 Parts Diagram

  • Title
1

Toro 109156

DISCONTINUED

$

$

Not available

2

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

3

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

4

Toro 107672

DISCONTINUED

$

$

Not available

5

Toro 107673

DISCONTINUED

$

$

Not available

6

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

7

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

8

Toro 103887

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

9

Toro 109349

DISCONTINUED

$

$

Not available

10

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

12

Toro 108249

SUPPORT-SEAT *R

$96.99

$

Usually ships in 3-6 days

0

13

Toro 106308

SHAFT-REAR

$

$

Not available

14

Toro 106288

CLAMP

$

$

Not available

15

Toro 106488

PAD-FOOTREST

$42.99

$

Usually ships in 3-6 days

0

16

Toro 108236

DISCONTINUED

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 926496

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

19

Toro 9775

DISCONTINUED

$

$

Not available

20

Toro 109608

GUIDE-MOWER

$

$

Not available

21

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

22

Toro 106615

DISCONTINUED

$

$

Not available

23

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

24

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

25

Toro 108474

DISCONTINUED

$

$

Not available

26

Toro 108547

DISCONTINUED
(Superseded to 106557)

$

$

Not available

29

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

30

Toro 908015

See Supercession: 322-1
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

31

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

32

Toro 109193

See Supercession: 3290-282
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 7

0
