02-11BH01 (SB-371) - Toro Lawn Tractor (1982) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor

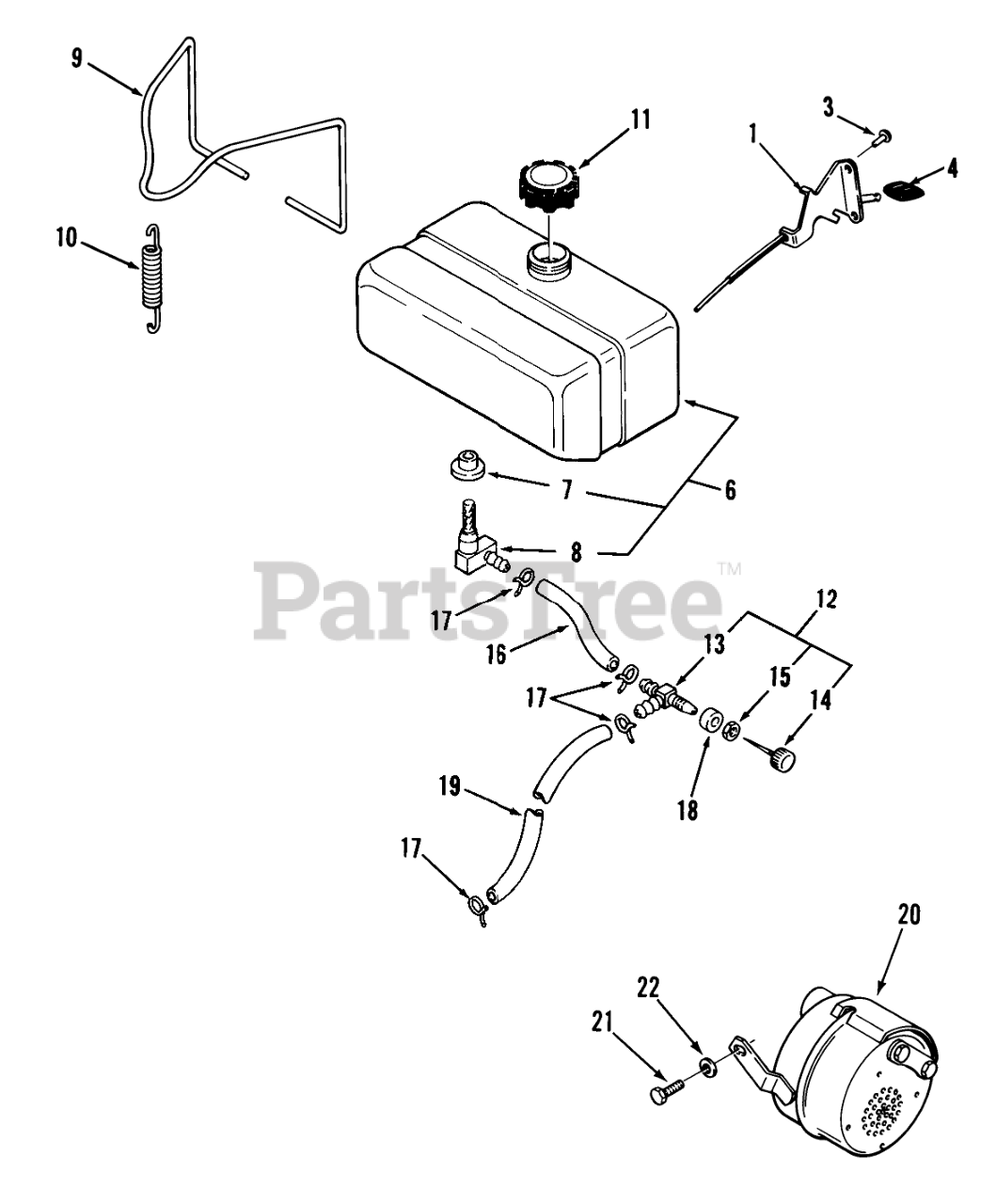

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Toro 108916

Assy-Choke/Throttle Control

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108917

KNOB-THROTTLE

$2.99

$

In Stock, only 2 left!

0

6

Toro 104067

ASSY-FUEL TANK

$269.99

$

Usually ships in 3-6 days

0

7

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

8

Toro 104071

FITTING FUEL TANK

$

$

Not available

9

Toro 100147

Hold Down Wire

$

$

Not available

10

Toro 9170

SPRING-EXTENSION

$

$

Not available

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

12

Toro 8023

S/A FUEL VALVE

$87.99

$

Usually ships in 3-6 days

0

13

Toro 100748

VALVE BODY

$

$

Not available

14

Toro 100749

STEM

$

$

Not available

15

Toro 100750

NUT

$

$

Not available

16

Toro 107927

Fuel Hose 3.8 in. (9.7 cm)
(Superseded to 101338)

$

$

Not available

17

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

18

Toro 5189

SPACER

$

$

Not available

19

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

20

Toro 108614

ASSY-MUFFLER

$

$

Not available

21

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

22

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
