02-11BP03 (B-115) - Toro Lawn Tractor (1981) Fuel And Exhaust Systems Parts Diagram

Lawn Tractor

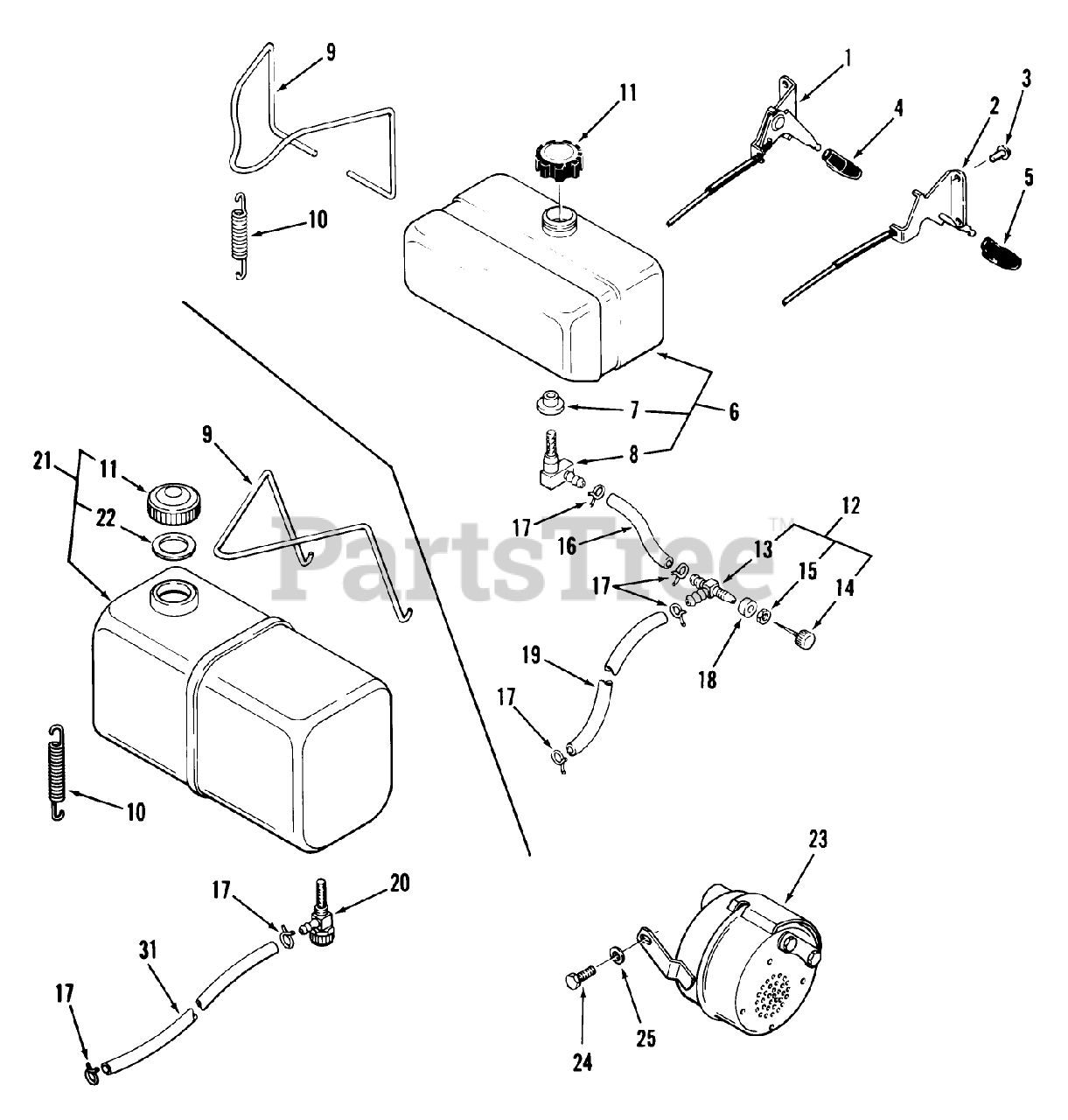

Fuel And Exhaust Systems Parts Diagram

  • Title

1

Toro 103519

DUP PART SEE $BOOK

$

$

Not available

1

Toro 108916

DISCONTINUED

$

$

Not available

2

Toro 108549

CONTROL THROTTLE

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108509

KNOB-THROTTLE

$8.49

$

In Stock, only 2 left!

0

4

Toro 108917

KNOB-THROTTLE

$3.99

$

In Stock, Qty 8

0

5

Toro 108510

KNOB-CHOKE

$10.99

$

In Stock, Qty 8

0

6

Toro 104067

ASSY-FUEL TANK

$355.99

$

Usually ships in 3-6 days

0

7

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

8

Toro 104071

FITTING FUEL TANK

$

$

Not available

9

Toro 100147

DISCONTINUED

$

$

Not available

10

Toro 9170

DISCONTINUED

$

$

Not available

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

12

Toro 8023

S/A FUEL VALVE

$

$

Not available

13

Toro 100748

VALVE BODY

$

$

Not available

14

Toro 100749

STEM

$

$

Not available

15

Toro 100750

NUT

$

$

Not available

16

Toro 107927

See Supercession: 101338
(Superseded to 101338)

$

$

Not available

17

Toro 108898

DISCONTINUED
(Superseded to 950154)

$

$

Not available

18

Toro 5189

DISCONTINUED

$

$

Not available

19

Toro 105442

See Supercession: 100061
(Superseded to 100061)

$

$

Not available

23

Toro 108614

DISCONTINUED

$

$

Not available

24

Toro 908001

See Supercession: 321-2
(Superseded to 321-2)

$3.99

$

In Stock, only 4 left!

0

25

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

1

Toro 108548

CONTROL-THROTTLE

$

$

Not available

1

Toro 108240

CONTROL-THROTTLE

$72.99

$

Usually ships in 3-6 days

0

2

Toro 108241

DISCONTINUED

$

$

Not available

9

Toro 108456

DISCONTINUED

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

$

$

Not available

11

Toro 108415

DISCONTINUED
(Superseded to 55-4700)

$

$

Not available

20

Toro 4941

DISCONTINUED

$

$

Not available

21

Toro 108413

DISCONTINUED

$

$

Not available

22

Toro 108416

DISCONTINUED

$

$

Not available

31

Toro 8215

Fuel Hose

$

$

Currently unavailable

31

Toro 105442

See Supercession: 100061
(Superseded to 100061)

$

$

Not available
