02-11BX01 (B-112) - Toro Lawn Tractor (1980) Frame, Sheet Metal And Covers 2 Parts Diagram

Lawn Tractor

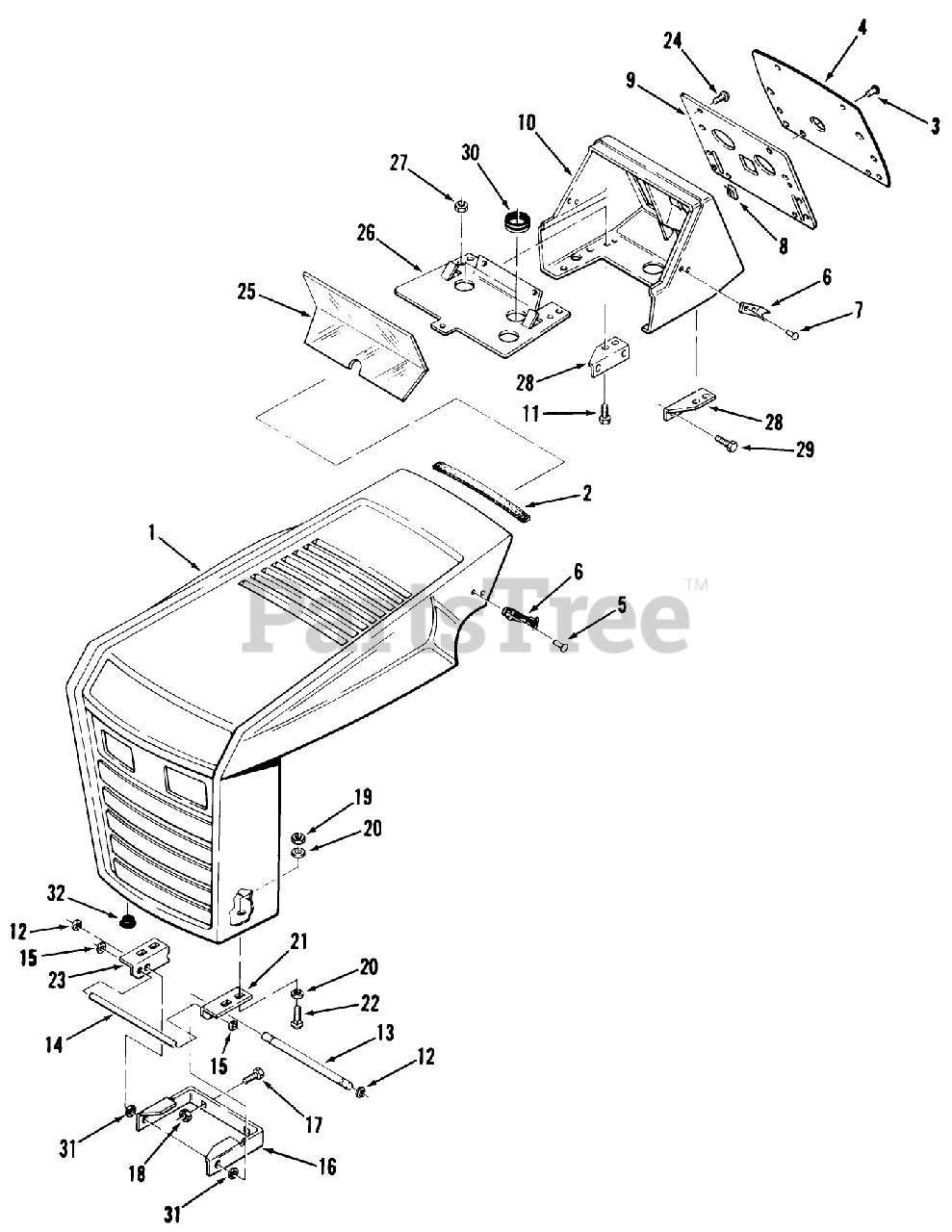

Frame, Sheet Metal And Covers 2 Parts Diagram

  • Title

1

Toro 108244

DISCONTINUED

$

$

Not available

2

Toro 108134

TRIM-CONSOLE

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108280

DISCONTINUED

$

$

Not available

5

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 7

0

6

Toro 106825

ASSY-FLEX DRAW LATCH

$56.99

$

In Stock, only 2 left!

0

7

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 7

0

8

Toro 5442

DISCONTINUED

$

$

Not available

9

Toro 108116

DISCONTINUED

$

$

Not available

10

Toro 108025

See Supercession: 109315
(Superseded to 109315)

$

$

Not available

11

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 6

0

12

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 17

0

13

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

14

Toro 108243

ROD-HOOD STOP

$

$

Not available

15

Toro 5466

DISCONTINUED

$

$

Not available

16

Toro 108222

See Supercession: 108764
(Superseded to 108764)

$

$

Not available

17

Toro 900038

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, only 2 left!

0

18

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

19

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

20

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

21

Toro 108053

DISCONTINUED

$

$

Not available

22

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 5

0

23

Toro 108052

DISCONTINUED

$

$

Not available

24

Toro 102168

DISCONTINUED

$

$

Not available

25

Toro 101446

CONTROL PROTECTOR

$

$

Not available

26

Toro 108412

DISCONTINUED

$

$

Not available

27

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

28

Toro 108238

DISCONTINUED

$

$

Not available

28

Toro 108239

DISCONTINUED

$

$

Not available

29

Toro 926496

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

30

Toro 101971

DISCONTINUED

$

$

Not available

31

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

32

Toro 5667

GROMMET

$5.49

$

In Stock, Qty 5

0
