020 (211-020-100) - Cub Cadet Front-Tine Tiller (1991) Tiller Part 1 Parts Diagram

Front-Tine Tiller

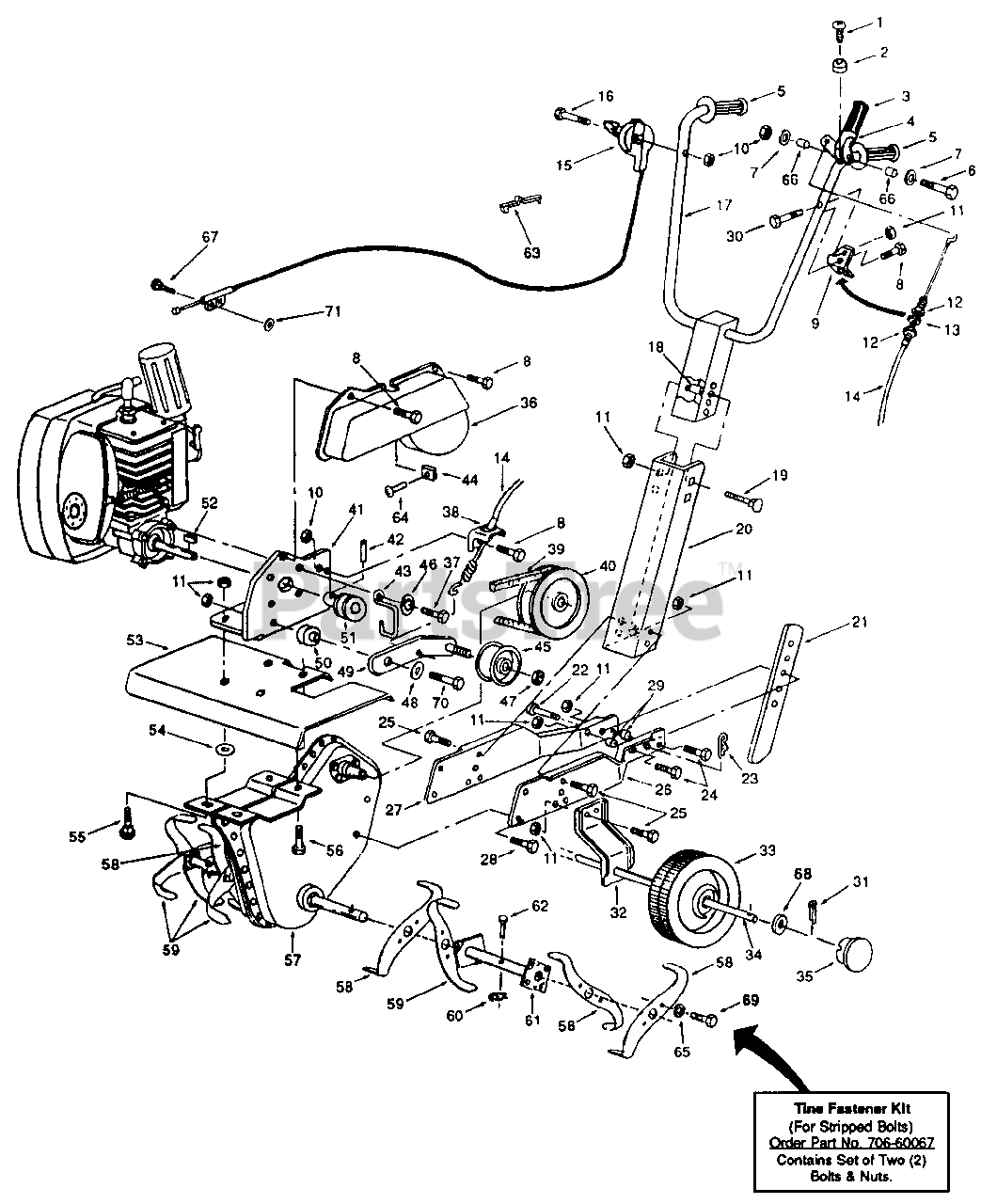

Tiller Part 1 Parts Diagram

  • Title

1

Cub Cadet 710-1167

SCREW-TAP 10X16X.50

$

$

Not available

2

Cub Cadet 720-0263

BUMPER-RECESS

$

$

Not available

3

Cub Cadet 731-0473

VINYL-PLASTIC

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 686-0002

LEVER ASSY-CLUTCH
(Superseded to 686-0002-0637)

Variations

Cub Cadet 686-0002-0637

LEVER ASSY-CLUTCH - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 720-0233

GRIP-LIFT HANDLE
(Superseded to 920-0233)

$

$

Not available

6

Cub Cadet 710-0501

SCREW-HEX 1/4-20 X 2.00

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-3090

WASHER-FL

$6.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-1201

SCREW-SLOT PL-250-20X0.50

$

$

Not available

9

Cub Cadet 15093C

BRACKET-CLUTCH

$

$

Not available

10

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0256

NUT-HEX JAM 5/16-24

$

$

Not available

13

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 746-0509

CABLE-CLUTCH
(Superseded to 946-0926)

$39.99

$

In Stock, Qty 5

0

15

Cub Cadet 746-0774

CONTROL-THROTTLE (TILLER)

$

$

Not available

16

Cub Cadet 710-0606

SCREW-HEX 1/4-20 X 1.50

$4.99

$

In Stock, Qty 15

0

17

Cub Cadet 649-0153

HANDLE ASSY-TILLER

Variations

Cub Cadet 649-0153-0637

UPPER HAND - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 750-0848

SPACER

$

$

Not available

19

Cub Cadet 710-0572

BOLT-CARRIAGE 5/16-18 X 2.50

$3.99

$

In Stock, Qty 5

0

20

Cub Cadet 786-0013

FRAME-CHANNEL HDL

Variations

Cub Cadet 786-0013-0637

FRAME-CHANNEL HDL POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 04764

BAR-DEPTH

$

$

Not available

22

Cub Cadet 711-0653

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-0145

PIN-INTERN COT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 18

0

25

Cub Cadet 710-0759

SCREW-HEX 5/16-18 X .62

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-0010

FRAME HALF-RH

$

$

Not available

27

Cub Cadet 786-0011

FRAME HALF-LH

$

$

Not available

28

Cub Cadet 710-0607

SCREW-TAP 5/16-18X.62

$6.49

$

In Stock, Qty 20+

0

29

Cub Cadet 750-0845

SPACER-.34 X .50 X .31
(Superseded to 750-0808)

$

$

Not available

30

Cub Cadet 710-1090

SCREW-HEX-.312-18X1.250

$3.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 714-3017

PIN-COTTER-3/32 DIA X 1.00
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 786-0012

BRACKET-WHEEL
(Superseded to 786-0012-0637)

$

$

Not available

33

Cub Cadet 634-0013

WHEEL-6"

$

$

Not available

34

Cub Cadet 738-0855

AXLE-WHEEL (MINI TILLER)

$

$

Not available

35

Cub Cadet 720-0258

HUB CAP

$

$

Not available

36

Cub Cadet 731-1249

COVER-BELT SEARS

$

$

Currently unavailable

37

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 786-0017

BRACKET-CLUTCH LEVER

$

$

Currently unavailable

39

Cub Cadet 754-0425

BELT-V

$

$

Not available

40

Cub Cadet 756-0287

PULLEY

$

$

Not available

41

Cub Cadet 786-0015

PLATE-ENGINE MTG

$

$

Currently unavailable

42

Cub Cadet 710-3006

SCREW-SET 5/16-18 X 3/8 LG

$4.49

$

In Stock, only 1 left!

0

43

Cub Cadet 747-0797

RETAINER-BELT

$

$

Not available

44

Cub Cadet 712-0410

CLIP-TINNERMAN

$

$

Not available

45

Cub Cadet 756-0199

PULLEY-IDLER-FLAT W/FLANGES

$23.99

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0498

WASHER-INTERN L 1/4

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

48

Cub Cadet 736-0275

WASHER-FL (#46041)

$6.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 686-0003

ARM ASSY-IDLER (TILLER)

$

$

Not available

50

Cub Cadet 750-0847

SPACER-IDLER ARM

$

$

Currently unavailable

51

Cub Cadet 756-0596

PULLEY-ENGINE

$

$

Not available

52

Cub Cadet 714-0206

KEY-SQ .125 X .750

$

$

Not available

53

Cub Cadet 786-0016

SHIELD-TINE (RED)

$

$

Currently unavailable

54

Cub Cadet 750-0796

SPACER

$

$

Not available

55

Cub Cadet 710-0276

BOLT-CARRIAGE 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 04924A

CASE ASSY-CHAIN COMP

$

$

Currently unavailable

58

Cub Cadet 742-0568

TINE-10IN-RH

$

$

Not available

59

Cub Cadet 742-0569

TINE-LH-10IN

$

$

Not available

60

Cub Cadet 714-0149B

PIN-COTTER

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 686-0001

ADAPTOR ASSY-TINE

$

$

Not available

62

Cub Cadet 711-0702

PIN-CLEVIS

$

$

Not available

63

Cub Cadet 726-0306

TIE-PLASTIC

$

$

Not available

64

Cub Cadet 710-1128

SCREW-PH-RD-#10-16 X .750

$

$

Not available

65

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

66

Cub Cadet 750-0846

SPACER-SPLIT

$

$

Not available

67

Cub Cadet 710-1202

SCREW-PH 8-32X1.000

$

$

Not available

68

Cub Cadet 736-0185

WASHER-FL-.406 ID X .74 OD X .063

$3.49

$

In Stock, Qty 17

0

69

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, only 3 left!

0

71

Cub Cadet 736-3005

WASHER-FL-.20 X .395

$

$

Not available

Cub Cadet 706-60067

Tine Fastener Kit

Note: For Stripped Bolts. Contains Set of Two (2) Bolts & Nuts.

$

$

Currently unavailable
