020 (211-020-100) - Cub Cadet Front-Tine Tiller Engine (1991) Tec 2 HP TCH300-3304-Carburetor Parts Diagram

Front-Tine Tiller Engine

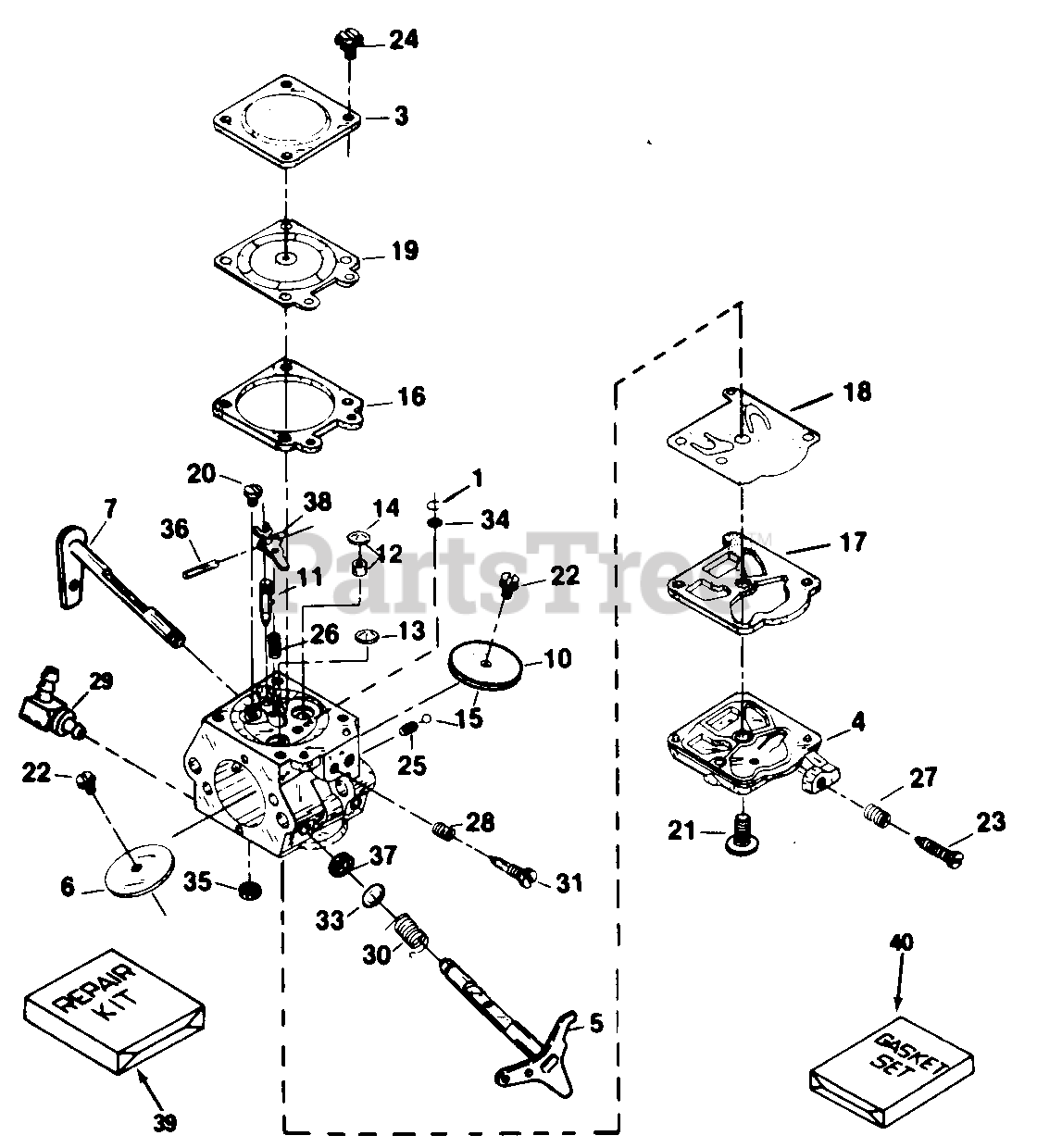

Tec 2 HP TCH300-3304-Carburetor Parts Diagram

  • Title

1

Cub Cadet TC-632287

Ring, Screen Retaining

$

$

Currently unavailable

3

Cub Cadet TC-632289

Cover, Metering Diaphragm

$

$

Currently unavailable

4

Cub Cadet TC-632290

Cover, Pump

$

$

Currently unavailable

5

Cub Cadet TC-632418

Shaft Ass'y., Throttle

$

$

Not available

6

Cub Cadet TC-632292

Shutter, Throttle

$

$

Not available

7

Cub Cadet TC-632475

Shaft Ass'y., Choke

$

$

Currently unavailable

10

Cub Cadet TC-632294

Shutter, Choke

$7.49

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-632295

Valve, Inlet Needle

$

$

Currently unavailable

12

Cub Cadet TC-632296

Nozzle Ass'y., Check Valve

Note: (Incl. No. 14)

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-632297

Plug, Welch (5/16")

$

$

Currently unavailable

14

Cub Cadet TC-632298

Plug, Welch (1/4")

$

$

Currently unavailable

15

Cub Cadet TC-632299

Ball, Choke Friction

$

$

Currently unavailable

16

Cub Cadet TC-632300A

Gasket, Diaphragm

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet TC-632301

Gasket, Pump

$3.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-632476

Diaphragm, Pump

$

$

Currently unavailable

19

Cub Cadet TC-632303

Diaphragm Ass'y.

$22.99

$

In Stock, only 1 left!

0

20

Cub Cadet TC-632304

Screw, Metering Lever Pin

$

$

Currently unavailable

21

Cub Cadet TC-632305

Screw, Pump Cover

$

$

Currently unavailable

22

Cub Cadet TC-650506

Screw, Shutter

$1.49

$

In Stock, Qty 17

0

23

Cub Cadet TC-632306

Screw, Idle Speed

$

$

Currently unavailable

24

Cub Cadet TC-650506

Screw, Metering Cover

$1.49

$

In Stock, Qty 17

0

25

Cub Cadet TC-632307

Spring, Choke Friction

$

$

Currently unavailable

26

Cub Cadet TC-632376

Spring, Metering Lever

$

$

Currently unavailable

27

Cub Cadet TC-632309

Spring, Idle Speed Screw

$

$

Currently unavailable

28

Cub Cadet TC-632310

Spring, Idle Needle

$

$

Currently unavailable

29

Cub Cadet TC-632488

Fitting, Fuel Line

$19.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-632311

Spring, Torsion

$

$

Currently unavailable

31

Cub Cadet TC-632312

Needle, Idle

$9.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-632313

Washer, Throttle Shaft

$

$

Currently unavailable

34

Cub Cadet TC-632314

Screen, Check Valve

$

$

Not available

35

Cub Cadet TC-632315A

Screen, Fuel Inlet

$

$

Not available

36

Cub Cadet TC-632316

Pin, Metering

$

$

Currently unavailable

37

Cub Cadet TC-632317

Seal, Throttle Shaft

$

$

Currently unavailable

38

Cub Cadet TC-632318

Lever, Metering

$

$

Currently unavailable

39

Cub Cadet TC-632377A

Repair Kit

Note: (Incl. Items Marked)

$71.99

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-632320A

Gasket Kit

Note: (Incl. Items Marked)

$27.99

$

Usually ships in 3-12 days

0
