020207-0 - Troy-Bilt 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

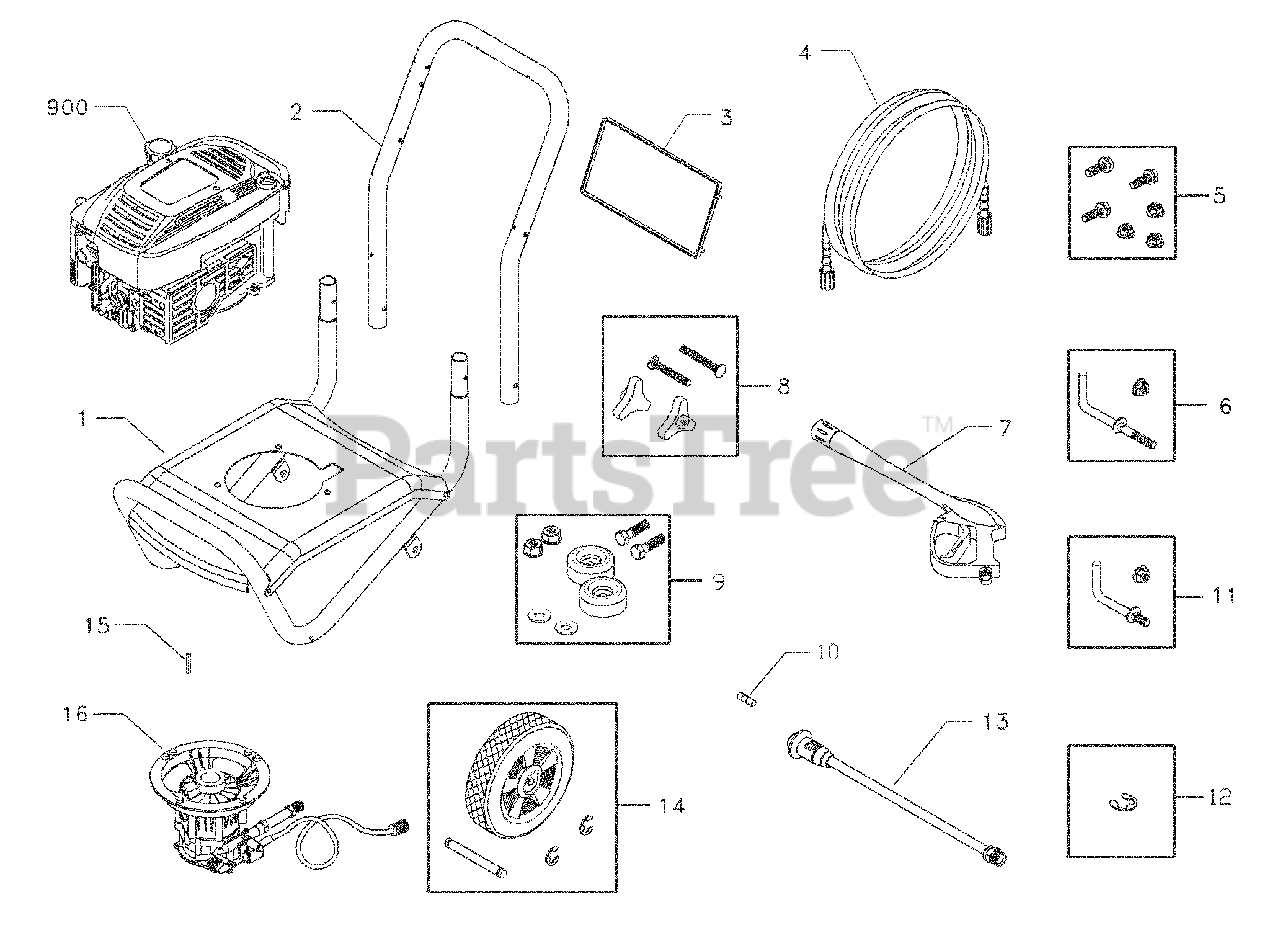

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 192422GS

BASE
(Superseded to 192419GS)

$220.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B191874GS

HANDLE

$60.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193998GS

BILLBOARD

$48.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192645GS

KIT, Pump Mounting Hardware

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192128GS

KIT, Hook
(Superseded to 194264GS)

$5.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 21760GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192309GS

KIT, Hook

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 188792HGS

WAND,Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 192311GS

KIT,Wheel

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194258GS

ASSY, Pump
(Superseded to 207365GS)

Note: (see "Pump") illustration and part list

$234.99

$

In Stock, only 2 left!

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 193996GS

MANUAL, Owner's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT,Warning Tag
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 8

0
