020208-0 - Troy-Bilt 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

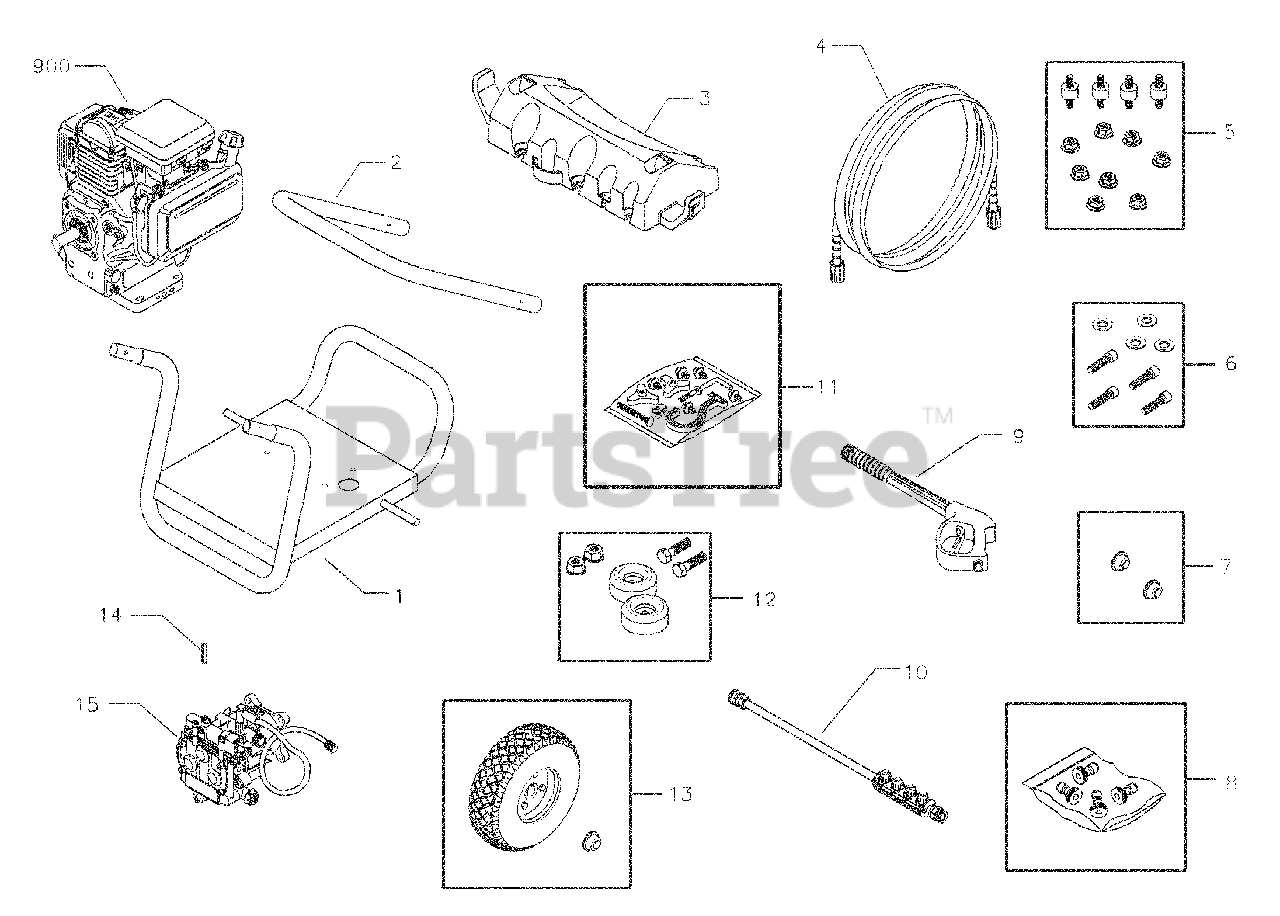

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B190156GS

BASE

$276.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B187602GS

HANDLE

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187606GS

BILLBOARD

$82.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192134GS

KIT, Engine Mounting Hardware

$31.99

$

In Stock, Qty 6

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$6.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 194062GS

PUSHNUT

$

$

Not available

8

Briggs & Stratton B4150GS

KIT, Spray Tips
(Superseded to 197291GS)

$68.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B1862GS

GUN

$99.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 192199GS

ASSY, Extension
(Superseded to 207796GS)

$56.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 190668GS

KIT, Handle Connector
(Superseded to 191429GS)

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192553GS

KIT,Vibration Mount

$17.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 192526GS

KIT,Wheel

$

$

Not available

14

Briggs & Stratton 23139DGS

KEY

$4.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 194106GS

ASSY, Pump

Note: (see "Pump) illustration and part list

$484.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 194018GS

MANUAL, Owner's

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 194260GS

KIT, Decals

Note: Items Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 20+

0
