020210-1 - Troy-Bilt 3,700 PSI Pressure Washer Main Unit Parts Diagram

3,700 PSI Pressure Washer

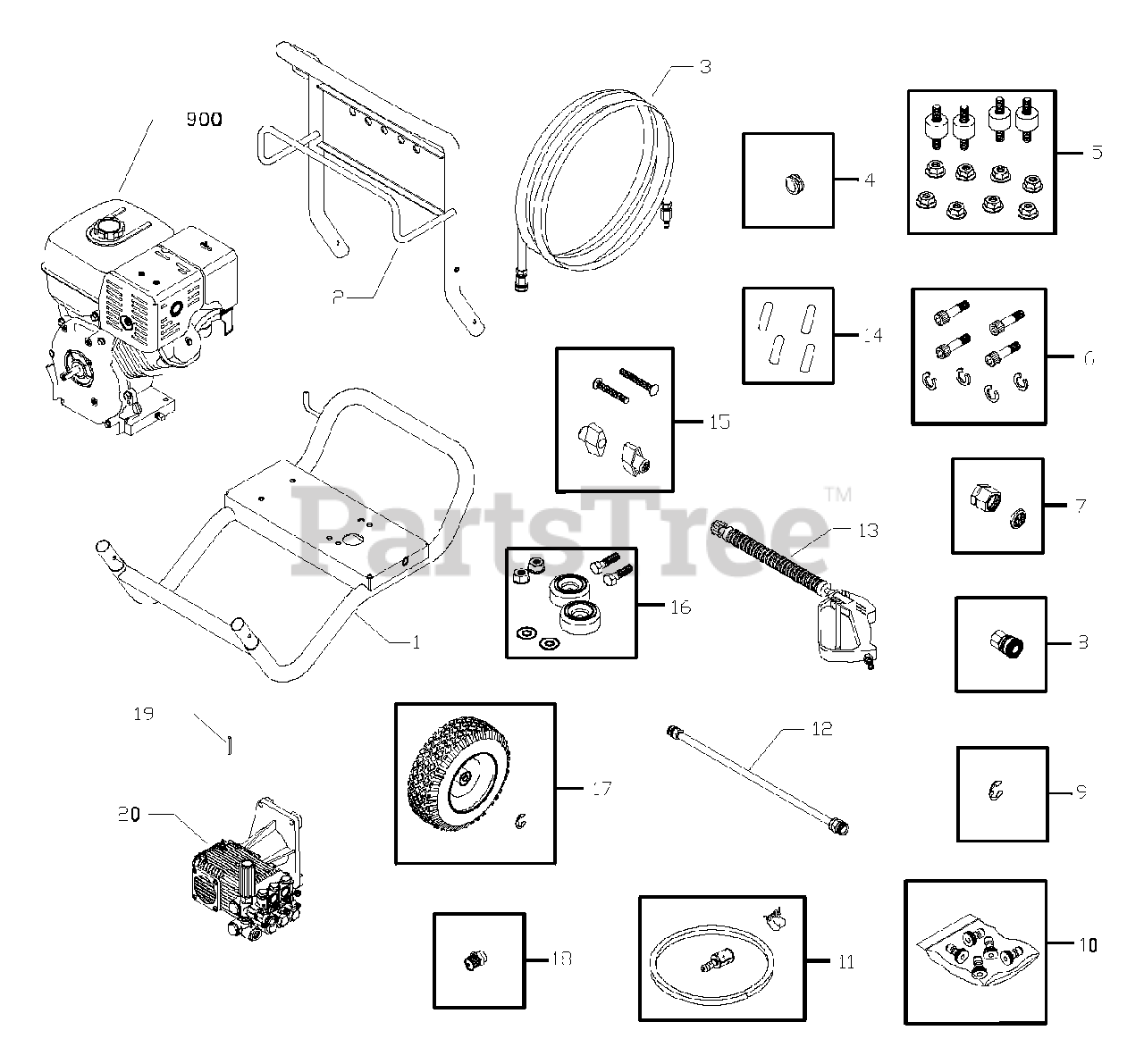

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B194424GS

BASE

$229.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B196133GS

HANDLE

$164.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 195294GS

KIT, Engine Mounting Hardware

$23.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 192132GS

KIT, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194004GS

KIT, Garden Hose Inlet

$15.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 95458GS

CONNECT, Quick
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 196233GS

KIT, Spray Tips
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192796GS

KIT, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 196315GS

ASSY, Extension
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 192126GS

CAP,Vinyl

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

17

Briggs & Stratton 194411GS

KIT, Wheel

$87.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195016GS

VALVE, Thermal

$25.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

20

Briggs & Stratton 195110GS

ASSY, Pump

Note: (see "Pump")

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196314GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196990GS

KIT, Decals, Srv

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 191267RGS

AXLE

Note: Not Illustrated

$44.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195983AGS

NOZZLE, QC, Red

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983BGS

NOZZLE, QC,Yellow

Note: Not Illustrated

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983CGS

NOZZLE, QC, Green

Note: Not Illustrated

$11.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195983DGS

NOZZLE, QC,White

Note: Not Illustrated

$11.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Black
(Superseded to 195846ZZGS)

Note: Not Illustrated

$11.99

$

Usually ships in 2-12 days

0
