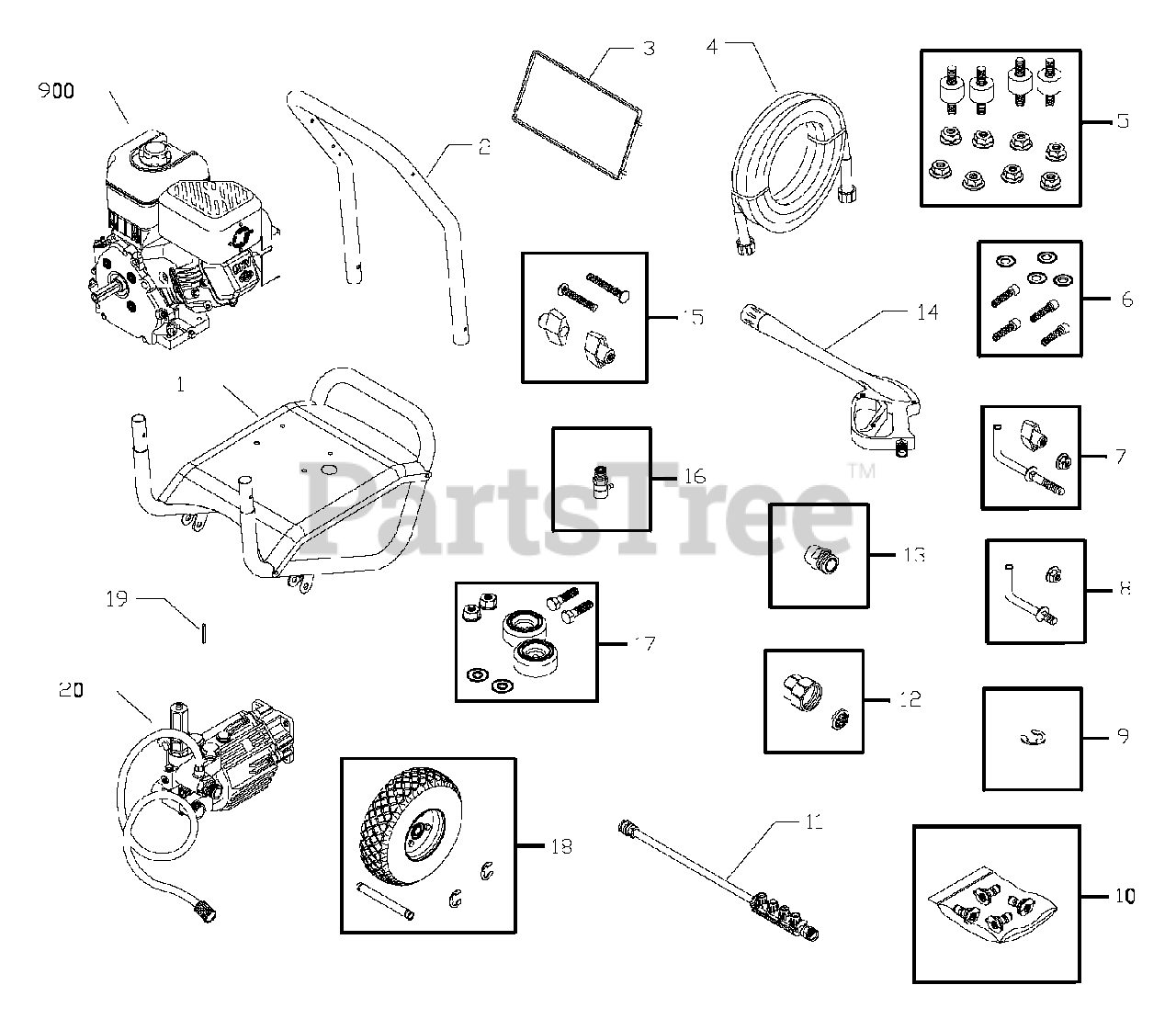

020212-1 - Speed Clean 2,800 PSI Pressure Washer Main Unit Parts Diagram

2,800 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 197722GS

BASE

$

$

Not available

2

Briggs & Stratton B194718GS

HANDLE

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 194377GS

ASSY, Billboard

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194564GS

HOSE
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 192134GS

KIT, Engine Mounting Hardware

$29.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191265GS

KIT, E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 196902GS

KIT, Spray Tip
(Superseded to 202514GS)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195851ZZGS

Nozzle, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983WGS

Nozzle, Red

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983XGS

Nozzle,Yellow

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 195983ZGS

Nozzle,White

$10.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 192199GS

ASSY, Extension
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194004GS

KIT, Inlet, Hose, Grdn, Srv

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 95457GS

ADAPTER

$7.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 17

0

17

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 192317GS

KIT,Wheel

$53.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194003GS

ASSY, Pump
(Superseded to 202005GS)

Note: (see "Pump")

$719.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 197714GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 194482GS

KIT, Decal Srv

Note: Not Illustrated

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 100516GS

KIT-O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
