020224-1 - Briggs & Stratton 2,700 PSI Pressure Washer Pump Parts Diagram

2,700 PSI Pressure Washer

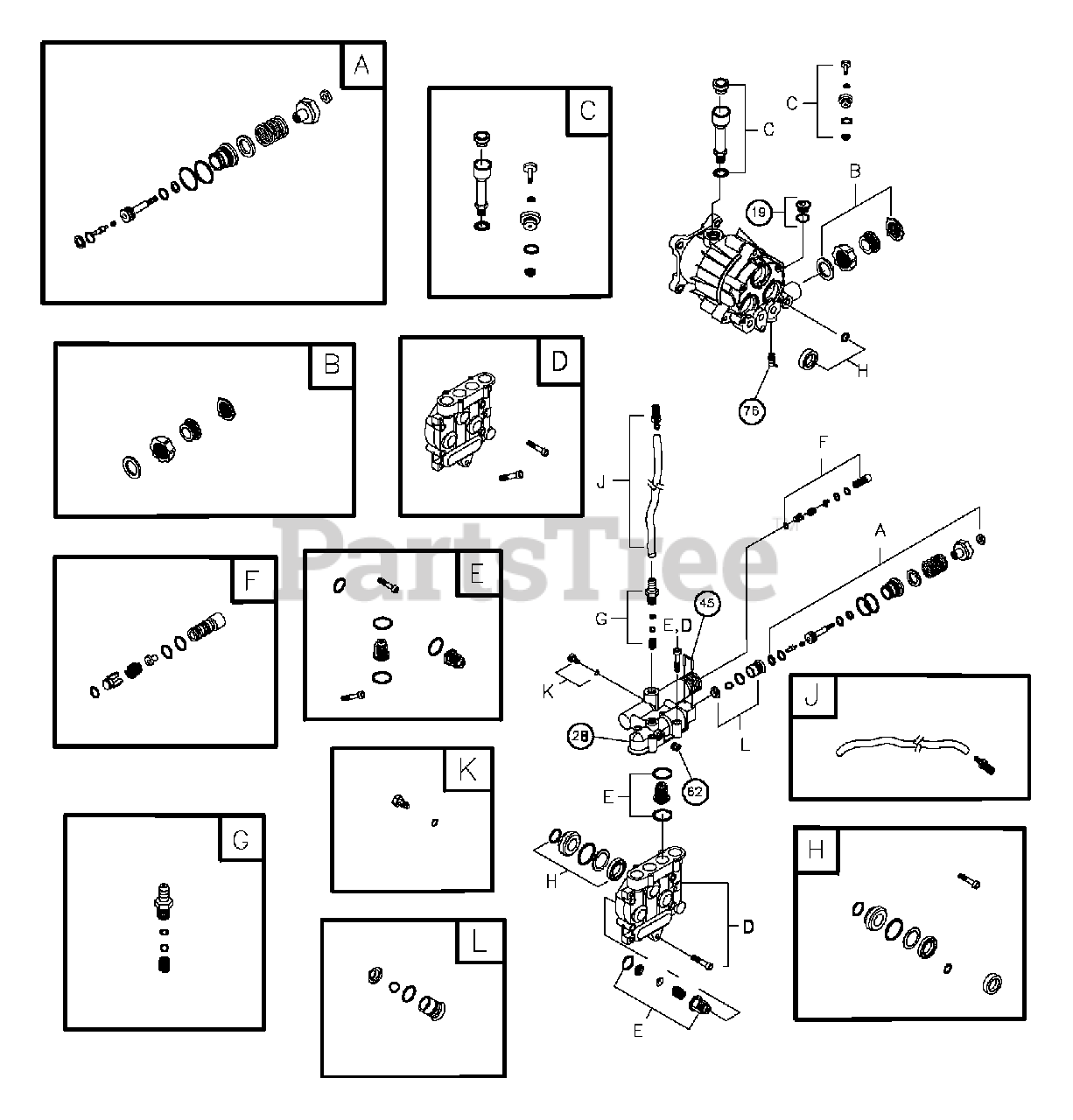

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 198102GS

MANIFOLD
(Superseded to 190673GS)

$

$

Not available

45

Briggs & Stratton 190578GS

PIN

$6.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 17

0

A

Briggs & Stratton 190594GS

KIT, Unloader

Note: Service kits include all parts shown within the box.

$81.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 190670GS

KIT, Water Inlet

Note: Service kits include all parts shown within the box.

$40.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 190669GS

KIT, Breather Tube

Note: Service kits include all parts shown within the box.

$47.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 193808GS

KIT, Head Brass

Note: Service kits include all parts shown within the box.

$145.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 193806GS

KIT, Check Valves

Note: Service kits include all parts shown within the box.

$35.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 190592GS

KIT, Inlet Check

Note: Service kits include all parts shown within the box.

$20.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 190593GS

KIT, Chemical Injection

Note: Service kits include all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 193807GS

KIT, Seal Set

Note: Service kits include all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, Chemical Hose

Note: Service kits include all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 193971GS

KIT, Pipe Fitting

Note: Service kits include all parts shown within the box.

$7.99

$

In Stock, only 1 left!

0

L

Briggs & Stratton 193972GS

KIT, Unloader Seat

Note: Service kits include all parts shown within the box.

$62.99

$

In Stock, only 1 left!

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Not Illustrated

$4.49

$

In Stock, only 3 left!

0

Briggs & Stratton 190586GS

OIL BOTTLE

Note: Not Illustrated

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 186452GS

FILTER, Inlet, Bag of 10

Note: Not Illustrated

$97.99

$

Usually ships in 2-12 days

0
