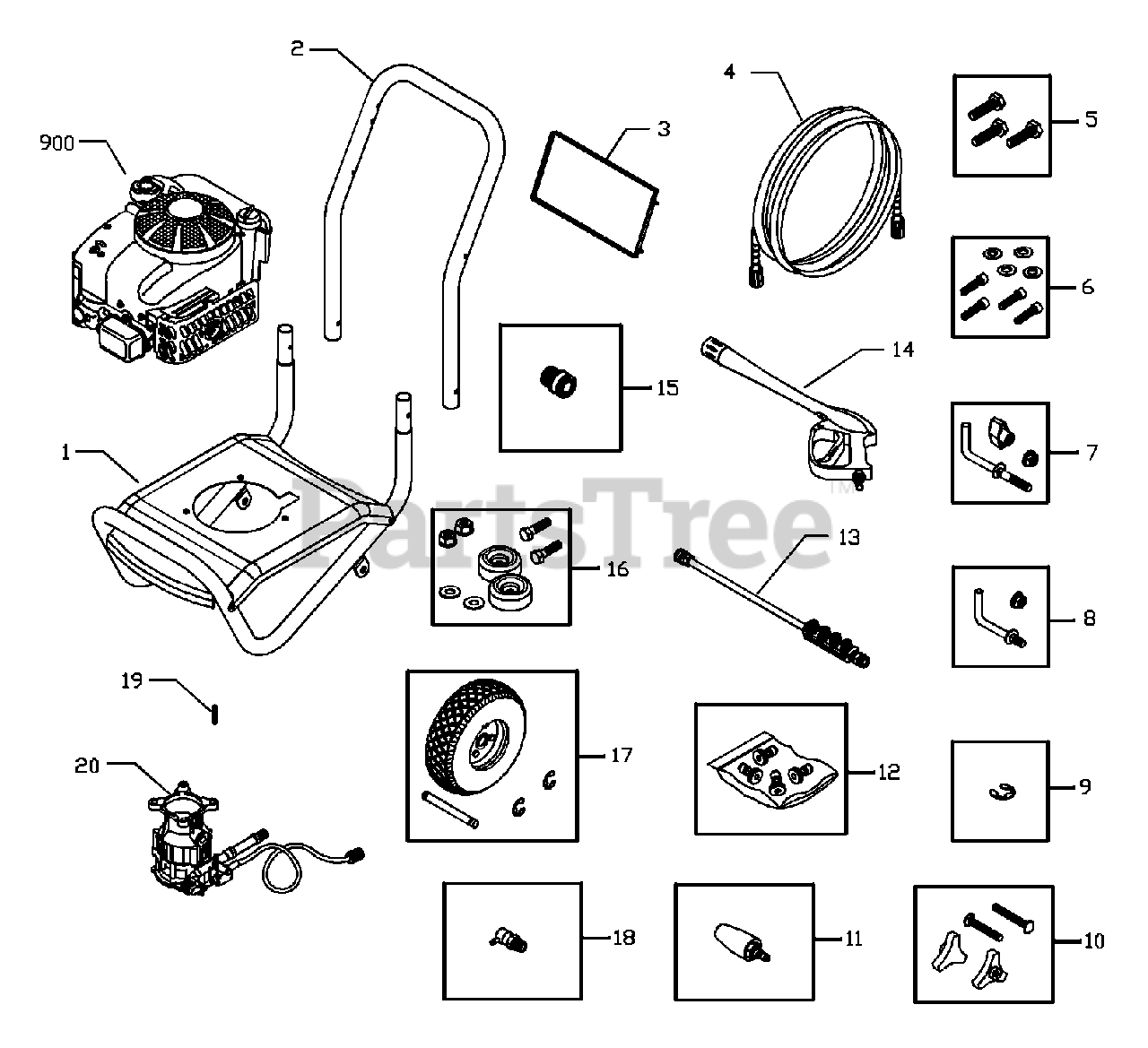

020226-0 - Generac 2,650 PSI Pressure Washer Main Unit (195108) Parts Diagram

2,650 PSI Pressure Washer

Main Unit (195108) Parts Diagram

  • Title

1

Briggs & Stratton 192646GS

BASE

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B194718GS

HANDLE

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195098GS

ASSY, Billboard/Decals

$48.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 185877GS

HOSE
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 192133GS

KIT, Engine Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195192GS

KIT, Hook, Handle
(Superseded to 194262GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

11

Briggs & Stratton 194236CGS

NOZZLE, Turbo

$70.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B5646GS

KIT, Spray Tips

$60.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192199GS

ASSY, Extension w/ Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B3263AGS

GUN

$58.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 95518GS

CONNECT, Quick
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 5

0

17

Briggs & Stratton 192317GS

KIT, Wheel

$53.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

19

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194059GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 194256GS

KIT, Tag, Warning with Clip
(Superseded to 705752)

Note: Not illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195104GS

MANUAL, Owner's

Note: Not illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton MS5578

MANUAL, Engine

Note: Not illustrated

$

$

Not available
