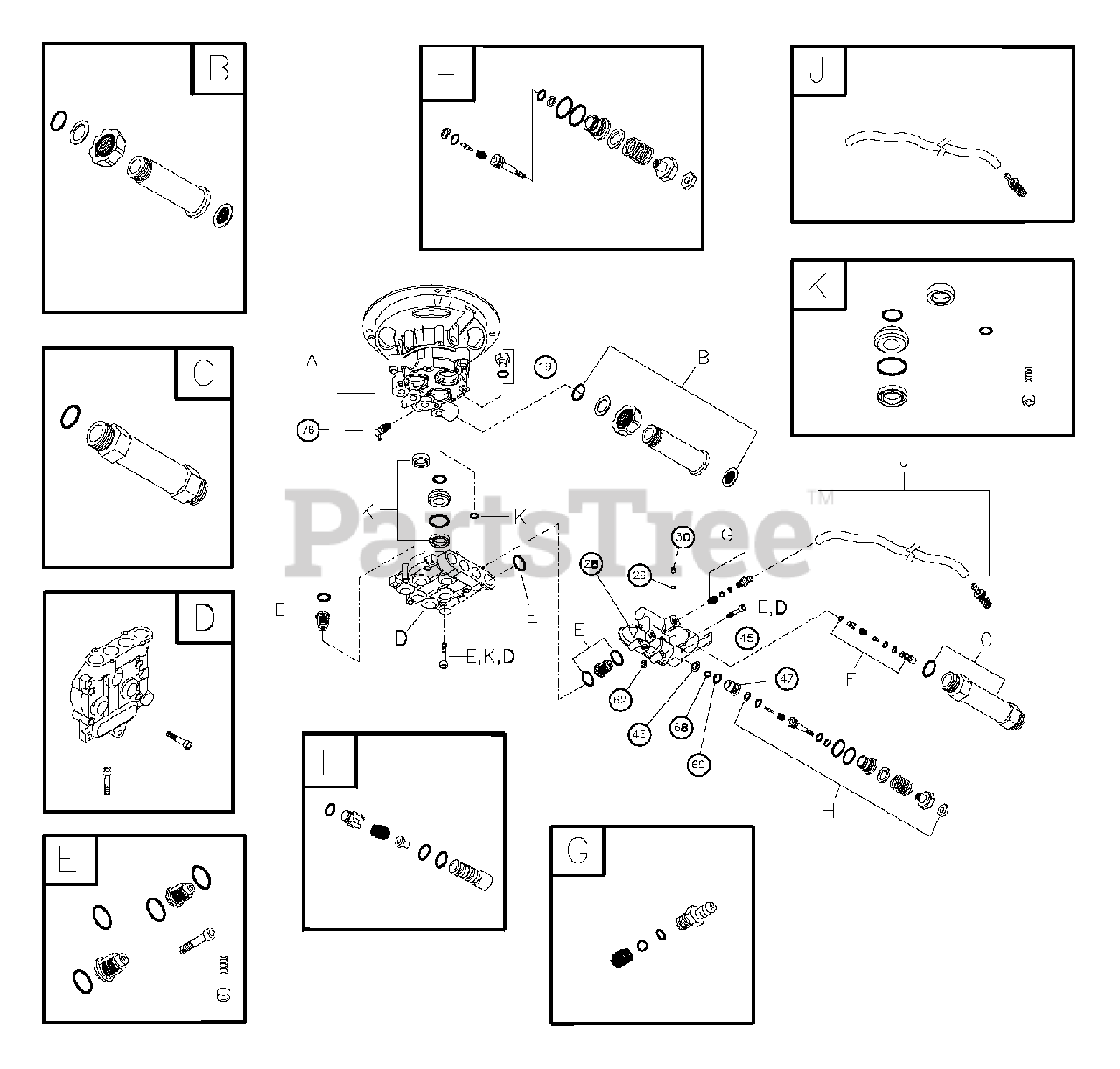

020228-1 - Briggs & Stratton 2,200 PSI Pressure Washer Pump Parts Diagram

2,200 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 190627GS

MANIFOLD

$100.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 190575GS

O-RING, 4 X 2
(Superseded to 193971GS)

$7.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 198105GS

SCREW

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190578GS

PIN

$6.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 190629GS

VALVE, Seat Plate, Plastic

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 190630GS

VALVE, Seat, Plastic

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190582GS

BALL, 7mm SS
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 190584GS

O-RING, 9.25 x 1.78
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

A

NSP

ASSY, CASE,PISTON

$

$

Not available

B

Briggs & Stratton 190632GS

KIT,WATER INLET,ALUM

Note: Service kit includes all parts shown within the box.

$

$

Not available

C

Briggs & Stratton 190634GS

KIT,OUTLET,ALUM
(Superseded to 201497GS)

Note: Service kit includes all parts shown within the box.

$28.99

$

In Stock, Qty 20+

0

D

Briggs & Stratton 198106GS

KIT,HEAD

Note: Service kit includes all parts shown within the box.

$71.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 193806GS

KIT,CHECK VALVES

Note: Service kit includes all parts shown within the box.

$35.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 190592GS

KIT,INLET CHECK

Note: Service kit includes all parts shown within the box.

$20.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 190593GS

KIT,CHEMICAL INJECTION

Note: Service kit includes all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 190628GS

KIT,UNLOADER STEM

Note: Service kit includes all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT,CHEMICAL HOSE

Note: Service kit includes all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 197309GS

KIT,SEAL SET

Note: Service kit includes all parts shown within the box.

$

$

Not available

Briggs & Stratton 190586GS

OIL BOTTLE

Note: Parts Not Illustrated

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Parts Not Illustrated

$4.49

$

In Stock, only 3 left!

0

Briggs & Stratton 186452GS

FILTER, Inlet, Bag of 10

Note: Parts Not Illustrated

$97.99

$

Usually ships in 2-12 days

0
