020245-3 - Troy-Bilt 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

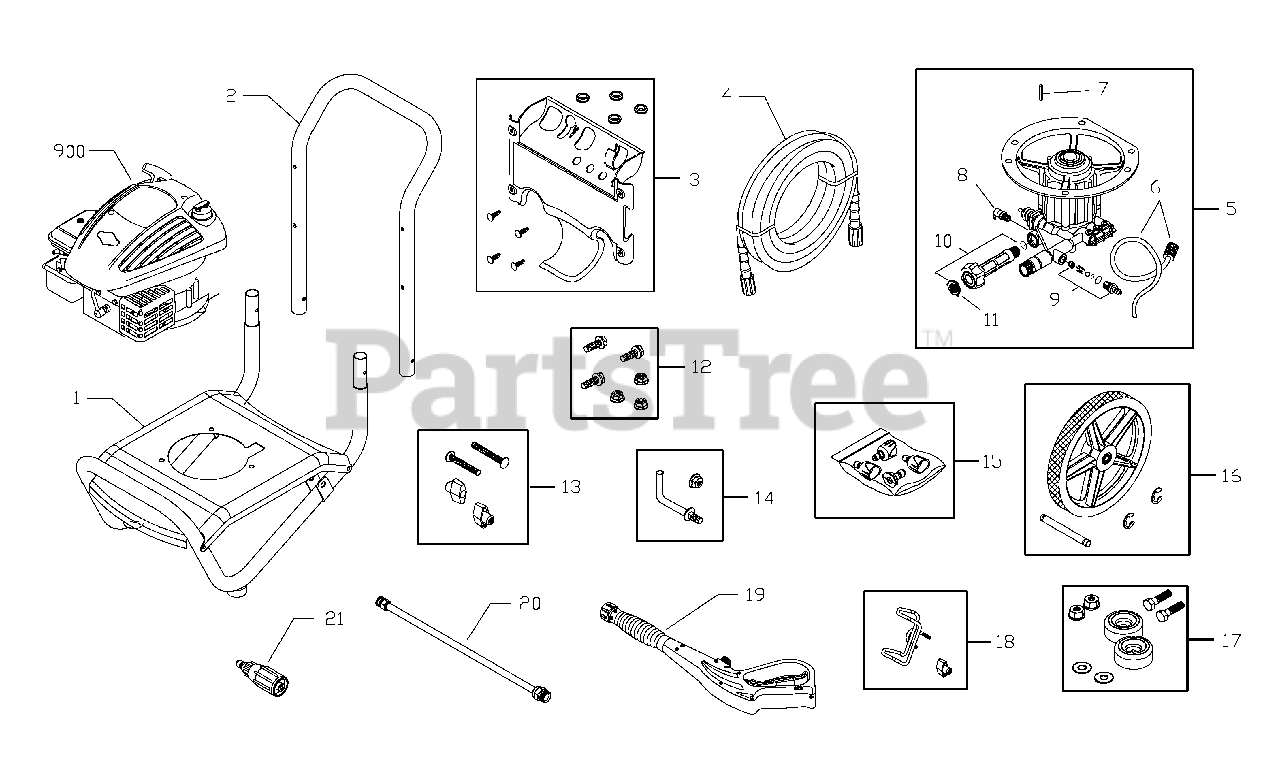

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196471GS

Base, w/Mounts

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P195428GS

Handle

$94.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197122GS

Kit, Billboard w/Decals

$74.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 200200GS

Assy, Pump

$

$

Not available

6

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

7

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 200279GS

Kit, Chemical Injection

$22.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 200278GS

Kit, Water Inlet

$

$

Not available

11

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 192525GS

Kit, Pump Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 192309GS

Kit, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 195943GS

Kit, Nozzles

$48.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 195842AEGS

Nozzle, Project Pro, Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 201580XGS

Nozzle, Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 195842RGS

Nozzle, Project Pro, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196439GS

Kit, Wheel

$75.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 195454GS

Axle

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

17

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 202200GS

Kit, Gun Holder

$31.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 199117GS

Gun
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 200595GS

Wand
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

21

Briggs & Stratton 195854GS

Turbo

$78.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 201619GS

Manual, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton MS5573

Manual, Engine
(Superseded to 277038WST)

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194256GS

Kit, Tag/Warning, Service
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 8

0

900

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Murray 794693

Label, Warning

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 793973

Assy, Shroud Label

Note: Items Not Illustrated

$60.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 196219GS

Decal, Engine Shroud

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

Kit, O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 3 left!

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
