020249-2 - Craftsman 2,200 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,200 PSI Pressure Washer, Canada

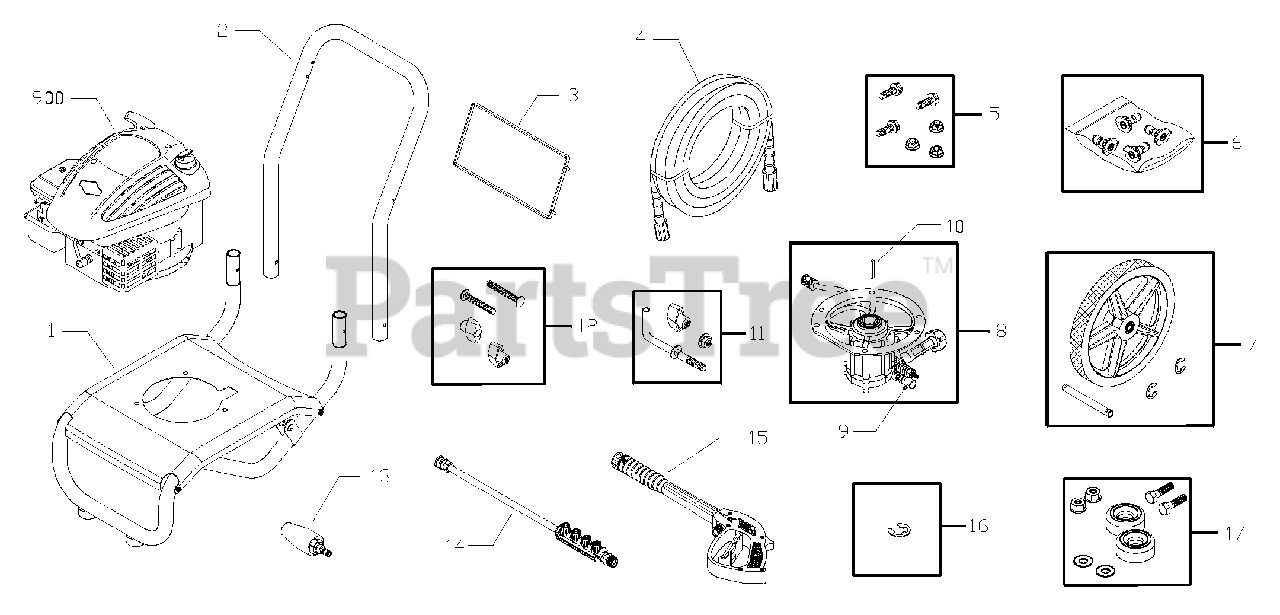

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196614GS

ASSY, Base

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R194718GS

HANDLE

$74.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196252GS

ASSY, Billboard

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 192525GS

KIT, Pump Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 196278GS

KIT, Spray Tips

$44.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Blk
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 195983AEGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 195983AFGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 195983AHGS

NOZZLE, QC, White

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, Qty 5

0

8

Briggs & Stratton 200200GS

ASSY, Pump

Note: (see "Pump")

$

$

Not available

9

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

10

Briggs & Stratton 23139GS

KEY (CLÉ)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 194236CGS

TURBO

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192199GS

ASSY, Extension
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

17

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

900

NSP

ENGINE (10H902-0113-E1)

Note: (see pages 27-29)

$

$

Not available

Briggs & Stratton 199575GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag/Waringot Illustrated
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 275034

DECAL, Warning

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 195454GS

AXLE

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191922GS

KIT, Maintenance, O-Ring

Note: Optional Accessories; Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7167300GS

House Wash Concentrate (makes 4 gallons)

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167301GS

Deck Wash Concentrate (makes 2 gallons)

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167303GS

Degreaser Concentrate (makes 4 gallons)

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable
