020250-0 - Briggs & Stratton 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

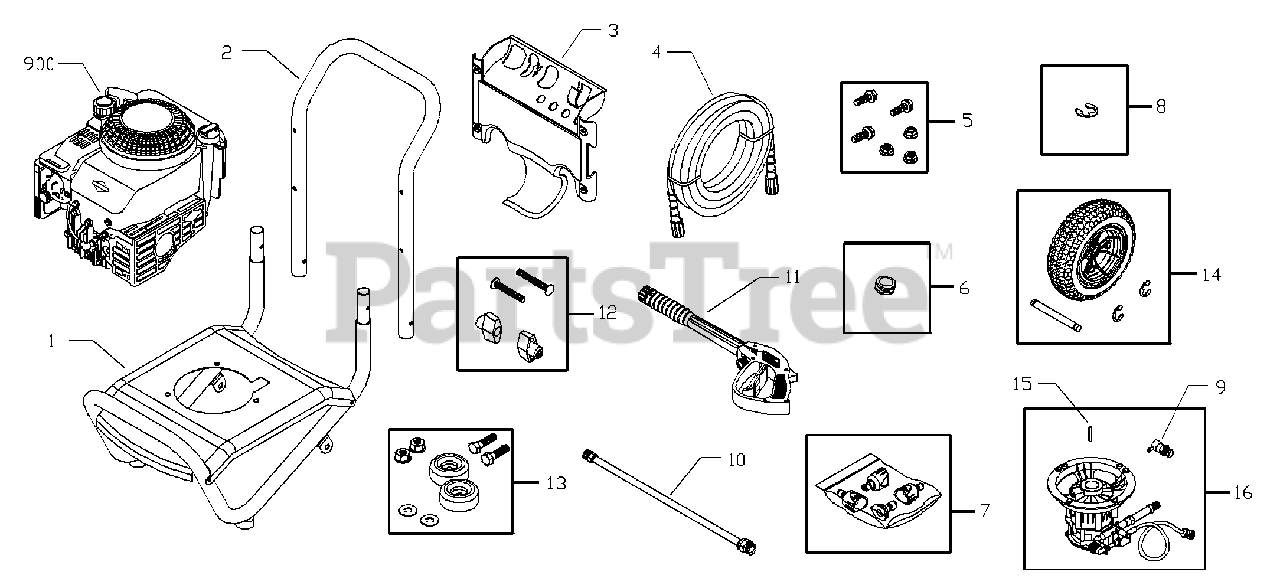

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 197081GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton M195428GS

HANDLE

$94.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196444GS

ASSY, Billboard w/ Clips

$58.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

Clip

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 192645GS

KIT, Pump Mounting Hardware

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195943GS

KIT, Nozzle, QC

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

Nozzle, Plastic Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195842AEGS

Nozzle, QC, Red Proj Pro
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195842XGS

Nozzle, QC, Orange Proj Pro
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 195842RGS

Nozzle, QC,Yellow Proj Pro
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

10

Briggs & Stratton 190779GS

ASSY, Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

11

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 197082GS

KIT,Wheel

$73.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198421GS

ASSY, Pump

Note: (see "Pump")

$328.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 196408GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS6847

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 194256GS

KIT,Tag,Warning with Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100516GS

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Not Illustrated

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 191267MGS

AXLE

Note: Not Illustrated

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
