020252-0 - Briggs & Stratton 3,400 PSI Pressure Washer Main Unit Parts Diagram

3,400 PSI Pressure Washer

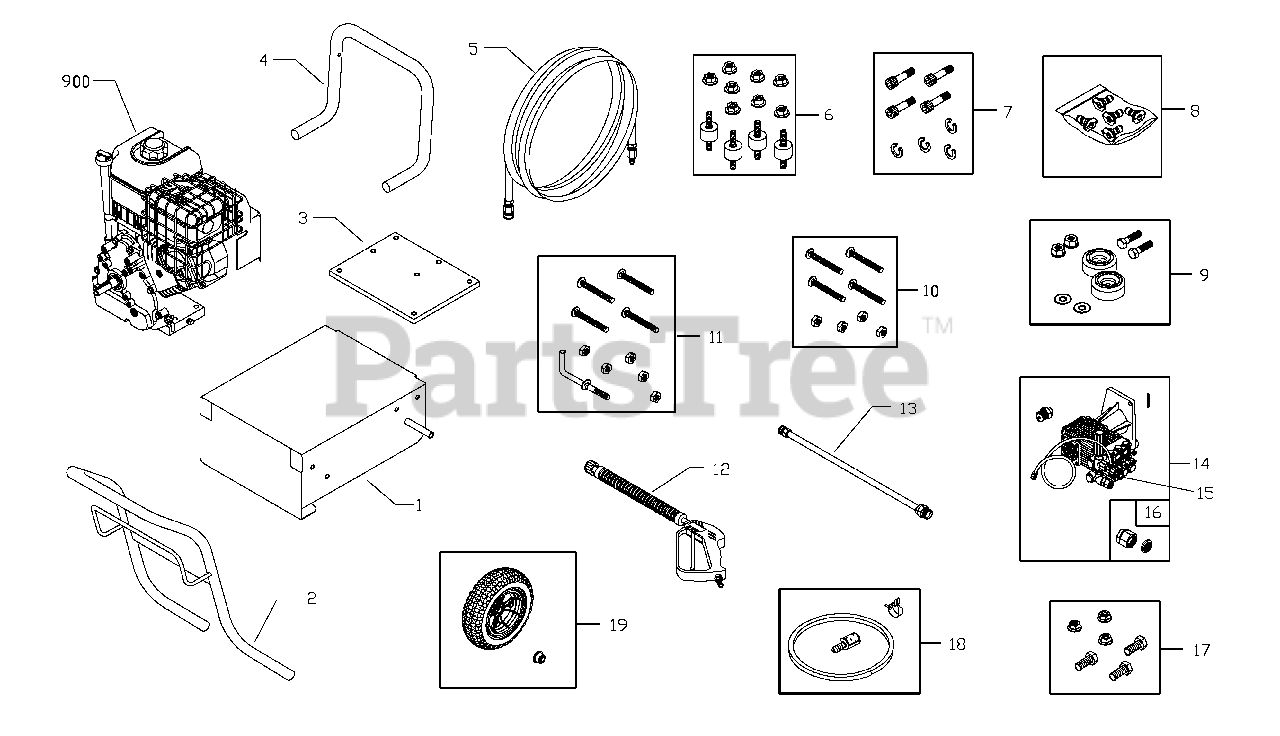

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M192991GS

Base

$

$

Currently unavailable

2

Briggs & Stratton MB3861CGS

Handle

$

$

Currently unavailable

3

Briggs & Stratton M197049GS

Plate

$

$

Currently unavailable

4

Briggs & Stratton MB4105AGS

Bumper

$

$

Currently unavailable

5

Briggs & Stratton B4805GS

Hose
(Superseded to 205734GS)

$

$

Not available

6

Briggs & Stratton 192134GS

Kit, Engine Mounting Hardware

$29.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 192132GS

Kit, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 196987GS

Kit, Nozzles, QC
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195846AGS

Nozzle, QC, Red
(Superseded to 195983AGS)

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195846BGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195846CGS

Nozzle, QC, Green
(Superseded to 195983CGS)

$11.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 195846DGS

Nozzle, QC, White

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195851ZZGS

Nozzle, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192553GS

Kit, Vibration Mount

$16.99

$

In Stock, Qty 8

0

10

Briggs & Stratton B4196GS

Kit, Handle Hardware

$6.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192910GS

Kit, Bumper Mounting Hardware

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1436BGS

Gun
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 193814GS

Assy, Wand
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 194036GS

Assy, Pump
(Superseded to 203046GS)

$731.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 63281GS

Key
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

14

Briggs & Stratton 195016GS

Valve, Thermal Relief

$25.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 95458GS

Quick Connect
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192135GS

Kit, Garden Hose Inlet

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192318GS

Kit, Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192796GS

Kit, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 197020GS

Kit, Wheel

$47.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 194845GS

Pushnut

$3.99

$

In Stock, only 2 left!

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 196981GS

Manual, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton MS3430

Manual, Engine

Note: Items Not Illustrated

$

$

Not available

900

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton B2516GS

Vinyl Cap

Note: Items Not Illustrated

$2.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061GS

Oil Bottle

Note: Items Not Illustrated

$13.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 6048

Kit, O-Ring Maintenance
(Superseded to 705001)

Note: Items Not Illustrated

$18.99

$

In Stock, only 3 left!

0

900

Briggs & Stratton 197021GS

Kit, Decals, Srv

Note: Items Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
