020258-0 - Briggs & Stratton 4,000 PSI Pressure Washer General Assembly Parts Diagram

4,000 PSI Pressure Washer

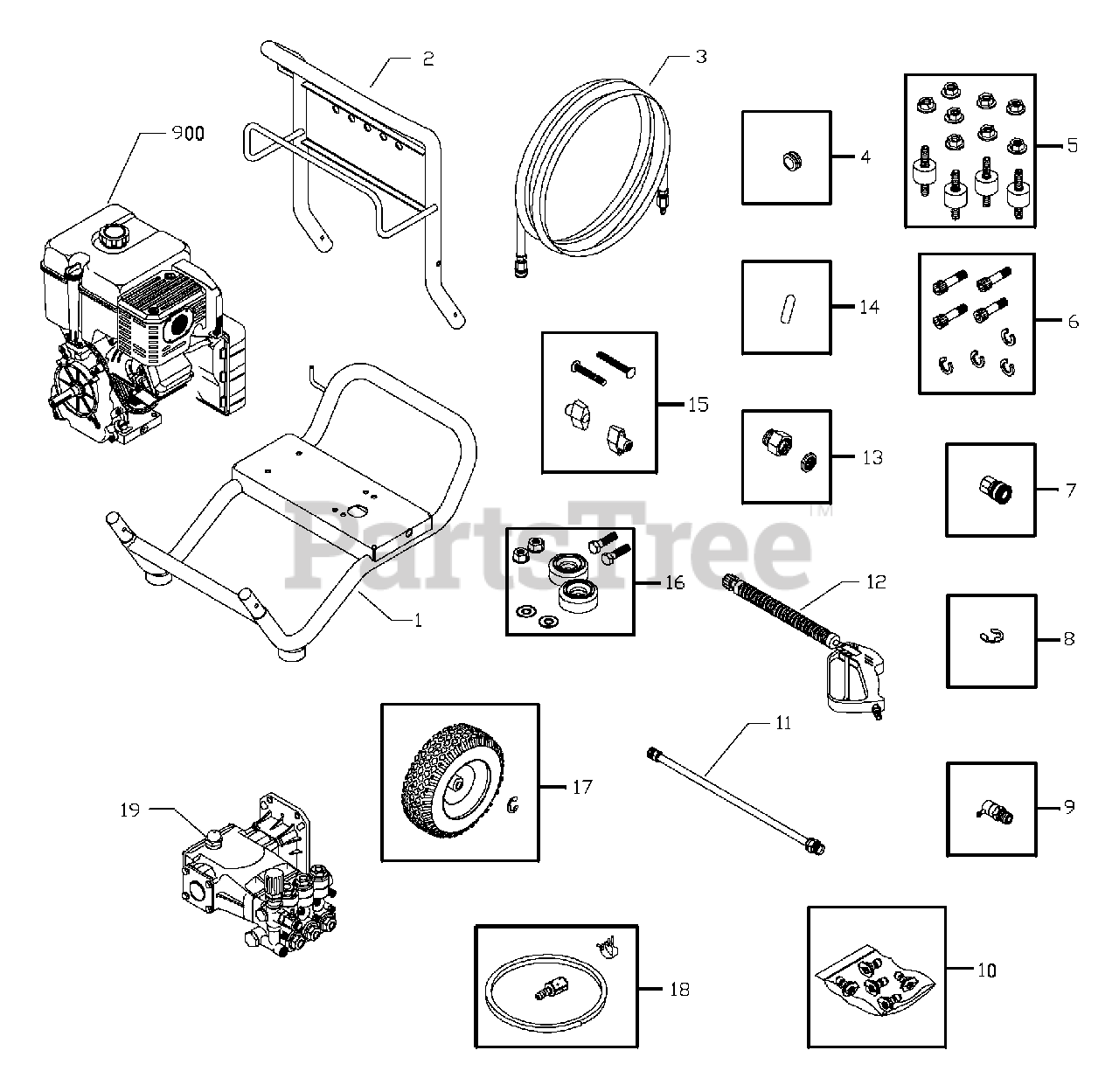

General Assembly Parts Diagram

  • Title

1

Briggs & Stratton B194424GS

BASE

$229.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B196133GS

HANDLE

$164.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4805GS

HOSE, 50'
(Superseded to 205734GS)

$

$

Not available

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 195294GS

KIT, Engine Mounting Hardware

$23.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 192132GS

KIT, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 194513GS

VALVE,Thermal Relief

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 196233GS

KIT, Nozzle
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195851ZZGS

Nozzle, QC Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983AGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983BGS

Nozzle, QC,Yellow

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983CGS

Nozzle, QC, Green

$11.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 195983DGS

Nozzle, QC,White

$11.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 196315GS

ASSY, Extension, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 192135GS

KIT, Garden Hose Inlet

$27.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2516GS

VINYL CAP

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, only 4 left!

0

17

Briggs & Stratton 194411GS

KIT,Wheel

$87.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192796GS

KIT, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

19

ASSY, Pump

Note: Contact Pump Manufacturer

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 199989GS

KIT, DECALS

Note: Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199145GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199850GS

SPACER,Wheel

Note: (required for airbox side of unit); Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6669

MANUAL, Engine
(Superseded to 279775WST)

Note: Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 191267TGS

AXLE

Note: Not Illustrated

$37.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 100516GS

KIT, O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Optional Accessories

$4.49

$

In Stock, only 3 left!

0

Briggs & Stratton 186452GS

FILTER, Inlet, (Bag of 10)

Note: Optional Accessories

$97.99

$

Usually ships in 2-12 days

0
