020263-0 - Briggs & Stratton 3,100 PSI Pressure Washer Main Unit Parts Diagram

3,100 PSI Pressure Washer

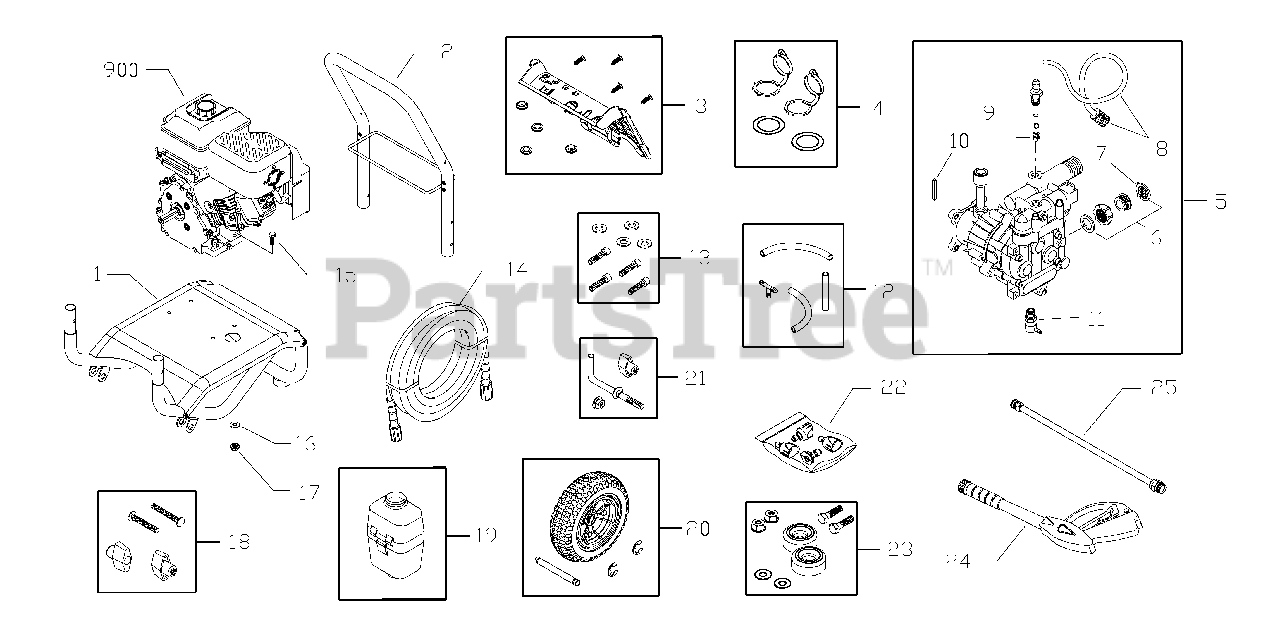

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 195951GS

Base, w/Mounts

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 203714GS

Handle, w/Wireform

$

$

Currently unavailable

3

Briggs & Stratton 196721GS

Kit, Billboard/Decals, w/Clips

$48.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196843GS

Kit, Cap Chemical

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198347GS

Assy, Pump
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 190670GS

Kit, Water Inlet

$40.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

9

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

10

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

12

Briggs & Stratton 197968GS

Kit, Chemical Hoses
(Superseded to 707412)

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192131GS

Kit, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 185877GS

Hose
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

15

HHCS, M8 - 1.25 x 40

Note: (Purchase locally)

$

$

Not available

16

Washer, M8 Flat

Note: (Purchase locally)

$

$

Not available

17

Nut, M8 Lock

Note: (Purchase locally)

$

$

Not available

18

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 195190GS

Assy, Chemical Tank

$27.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192980GS

Kit, Valve

$17.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 197082GS

Kit, Wheel

$73.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 191267MGS

Axle

$19.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 192128GS

Kit, Hook
(Superseded to 194264GS)

$5.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 195889GS

Kit, Nozzle
(Superseded to 202182GS)

$31.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 195842AAGS

Nozzle, QC, Project Pro, Red
(Superseded to 201580AAGS)

$10.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 195842XGS

Nozzle, QC, Project Pro, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 195842RGS

Nozzle, QC, Project Pro, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 196206GS

Gun
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 199097GS

Manual, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton MS3430

Manual, Engine

Note: Items Not Illustrated

$

$

Not available

900

Briggs & Stratton 199409GS

Decal, Air Cleaner

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 196740GS

Decal, Tank Fuel

Note: Items Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 196741GS

Decal, Recoil

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 8

0

900

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

Kit, O-Ring Maintenance
(Superseded to 705001)

Note: Items Not Illustrated

$18.99

$

In Stock, only 3 left!

0

900

Briggs & Stratton 695755

Knob, Throttle

Note: Items Not Illustrated

$11.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 194256GS

Kit, Tag Warning, w/Clip
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, only 2 left!

0
