020266-2 - Craftsman 2,200 PSI Pressure Washer Main Unit (199834) Parts Diagram

2,200 PSI Pressure Washer

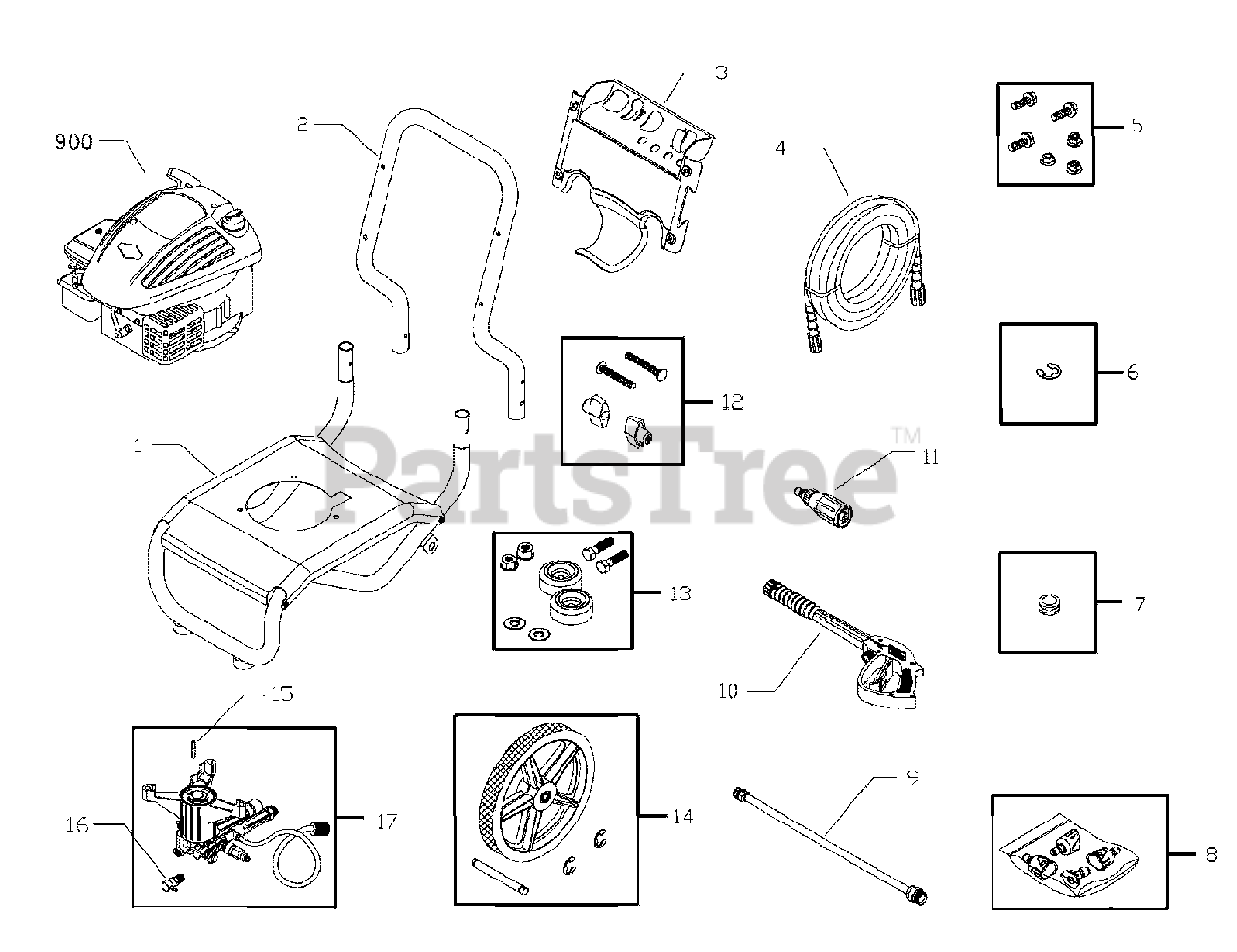

Main Unit (199834) Parts Diagram

  • Title

1

Briggs & Stratton 196614GS

ASSY, Base

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R196526GS

HANDLE

$75.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 199429GS

KIT, Billboard with Clips

$58.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIPS, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 200199GS

KIT, Pump Mounting Hardware

$6.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192050GS

KIT, E-Ring 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195943GS

KIT, Nozzles

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195851ZZGS

Nozzle, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195842AEGS

Nozzle, QC, Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195842XGS

Nozzle, QC, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 195842RGS

Nozzle, QC, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 190779GS

ASSY, Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

10

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195854GS

TURBO

$78.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 3 left!

0

13

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

17

Briggs & Stratton 200303GS

PUMP
(Superseded to 207365GS)

$234.99

$

In Stock, only 2 left!

0

900

Briggs & Stratton 10H902-0113-E1

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 199833GS

MANUAL, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

KIT, Tag/Warning Srv
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 275034

DECAL, Warning

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 87815GS

GOGGLES

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: (Optional Accessory)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175116GS

Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional Accessory)

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175121GS

25' Extension Hose

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: (Optional Accessory)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: (Optional Accessory)

$21.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: (Optional Accessory)

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: (Optional Accessory)

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: (Optional Accessory)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: (Optional Accessory)

$

$

Not available
