020273-1 - Briggs & Stratton 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

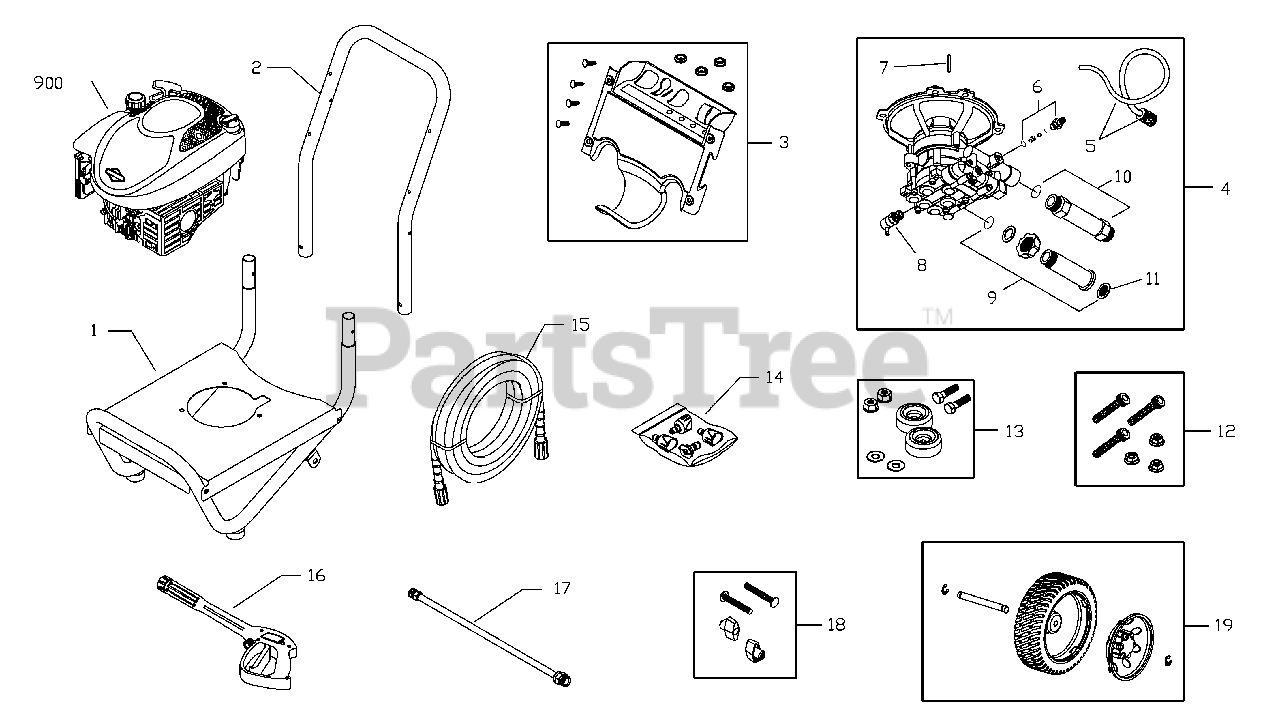

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202791GS

Base, w/Mounts

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton Y199110GS

Handle

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203075GS

Assy, Billboard w/Decals & Clips

$48.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clip

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 202605GS

Assy, Pump

$328.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

6

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

7

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 15

0

9

Briggs & Stratton 190632GS

Kit, Water Inlet

$

$

Not available

10

Briggs & Stratton 190634GS

Kit, Outlet
(Superseded to 201497GS)

$28.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton B2384GS

Filter

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 192529GS

Kit, Pump Mounting Hardware

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 202181GS

Kit, Nozzle
(Superseded to 207471GS)

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580RGS

Nozzle, Project Pro, Yellow

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580XGS

Nozzle, Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 201580AEGS

Nozzle, Project Pro, Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 202017GS

Hose

$

$

Not available

16

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 202483GS

Kit, Wheel

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201313GS

Axle

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200520GS

Hubcap

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

900

Engine

$

$

Not available

Briggs & Stratton 205755GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 87815GS

Goggles

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Murray 794693

Lable, Warning

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 793943

Cover, Static/Label Assy

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 202502GS

Decal, Eng, Shroud

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

Kit, Tag Warning
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 6048

Kit, O-Ring Maintenance
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 2 left!

0
