020275-0 - Briggs & Stratton 3,400 PSI Pressure Washer Main Unit Parts Diagram

3,400 PSI Pressure Washer

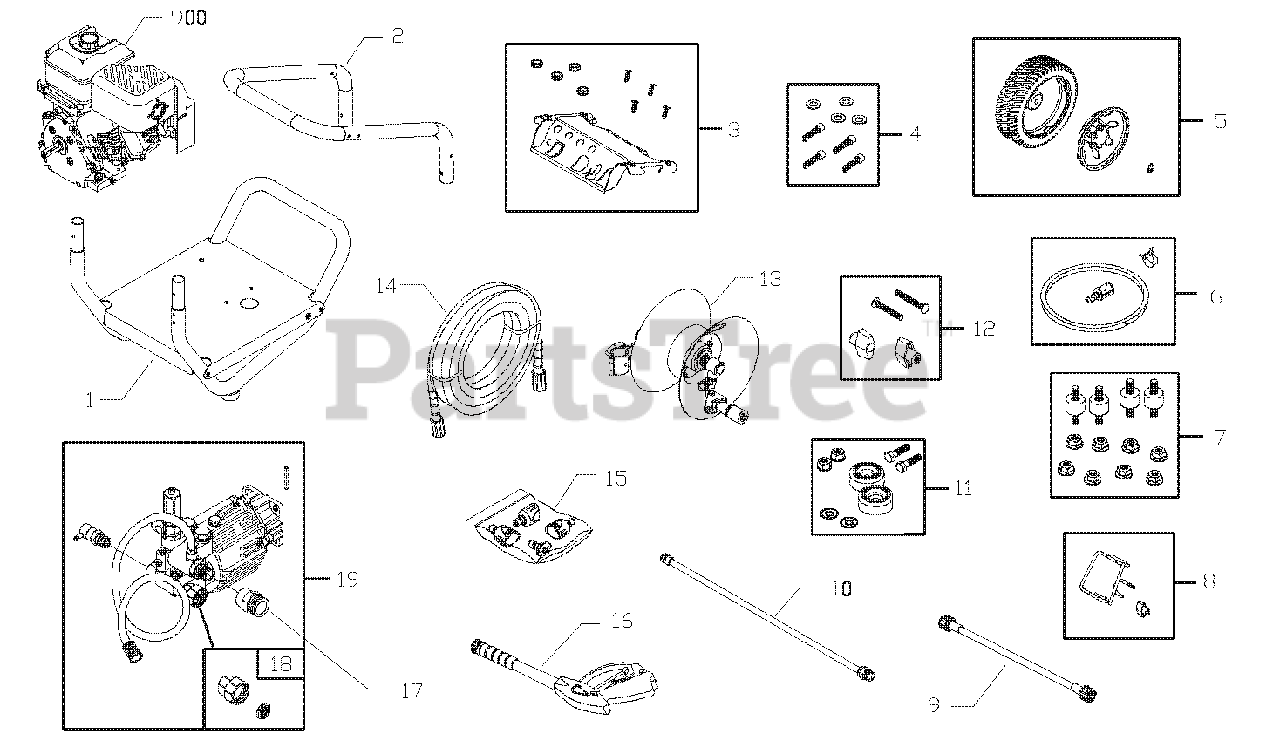

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202862GS

BASE, w/Mounts

$

$

Not available

2

Briggs & Stratton Y201499GS

Handle

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202854GS

Kit, Billboard/Decals, w/Clips

$71.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192050GS

E-RING, Axle, 1/2
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

6

Briggs & Stratton 192796GS

KIT, Chem Hose & Filter

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 201661GS

KIT, Gun Holder, Weldment

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202418GS

Hose, Whip

$39.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193814GS

ASSY, Wand, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 192553GS

KIT, Vibration Mount

$16.99

$

In Stock, Qty 8

0

12

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 202136GS

ASSEMBLY, Hose Reel

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203488GS

Kit, Hardware, Hose Reel

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202419GS

Hose

$211.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 202182GS

KIT, Spray Tips
(Superseded to 207471GS)

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580RGS

Nozzle, QC, Project Pro, Yellow

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580XGS

Nozzle, QC, Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 201580AAGS

Nozzle, QC, Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196206GS

Gun
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 95457GS

CONNECTOR, Garden Hose

$7.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 194004GS

KIT, Inlet, Hose, Garden

$15.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 202005GS

PUMP, Complete

$719.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

VALVE, Thermal Relief (Included in #19)
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 150212-0120-B8

*ENGINE

Note: Contact Engine Manufacturer

$

$

Currently unavailable

Briggs & Stratton 203769GS

Manual, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES (Not shown)

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine (Not shown)
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 201314GS

AXLE

Note: Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 695755

KNOB, Control

Note: Not Illustrated

$11.99

$

In Stock, only 1 left!

0

Briggs & Stratton 202367GS

Kit, Decals

Note: Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Optional Accessory

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 6039

PUMP Saver

Note: Optional Accessory

$12.99

$

In Stock, only 2 left!

0
