020292-2 - Troy-Bilt 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

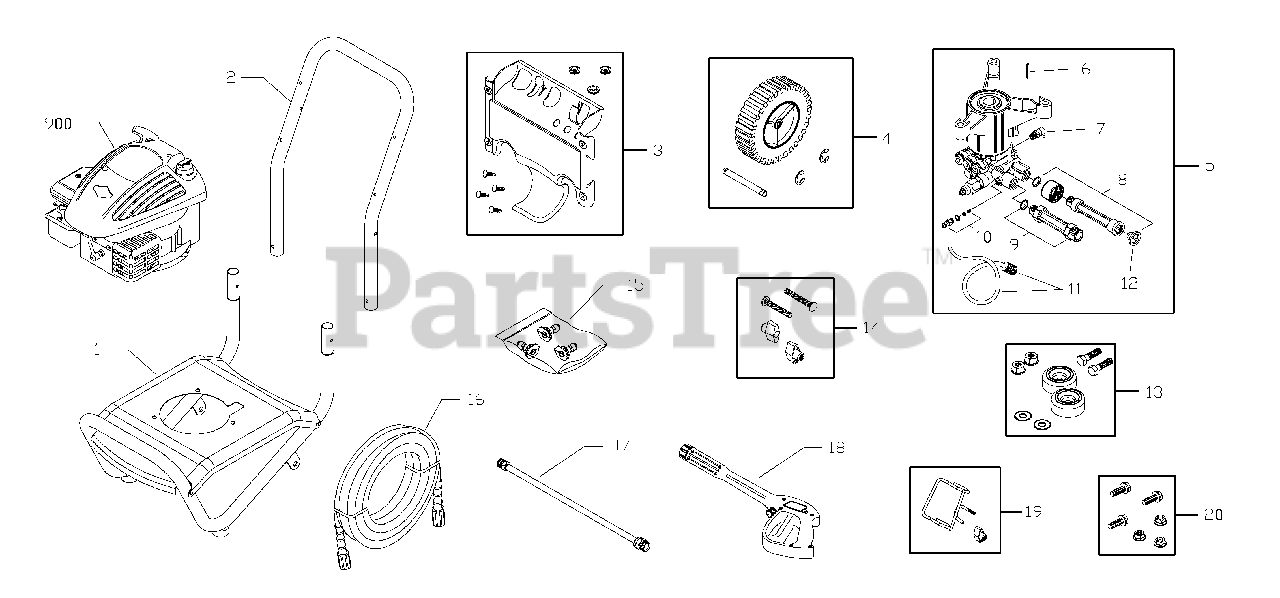

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 201560GS

Base, w/Mounts

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P199110GS

Handle
(Superseded to 199110BVGS)

$85.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 201370GS

Kit, Billboard w/Decals & Clips

$71.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 200730GS

Kit, Wheel

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 192006GS

Axle

$16.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 200303GS

Assy, Pump
(Superseded to 207365GS)

$234.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

8

Briggs & Stratton 201496GS

Kit, Water Inlet

$46.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 201497GS

Kit, Outlet

$28.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 192914GS

Kit, Hose Tail

$24.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

12

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, Qty 6

0

13

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, Qty 5

0

14

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 3 left!

0

15

Briggs & Stratton 201324GS

Kit, Nozzle

$22.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

Nozzle, QC, Green

$10.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 200595GS

Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 201661GS

Kit, Gun Holder

$36.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 200199GS

Kit, Pump Mounting Hardware

$6.49

$

Usually ships in 2-12 days

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 194256GS

Kit, Tag/Warning, Service
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Murray 794693

Decal, Warning

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 793973

Assy, Shroud/Label

Note: Parts Not Illustrated

$60.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 201973GS

Decal, Shroud

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

900

Briggs & Stratton 87815GS

Goggles

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

Kit, O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, Qty 5

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
