020295-0 - Troy-Bilt 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

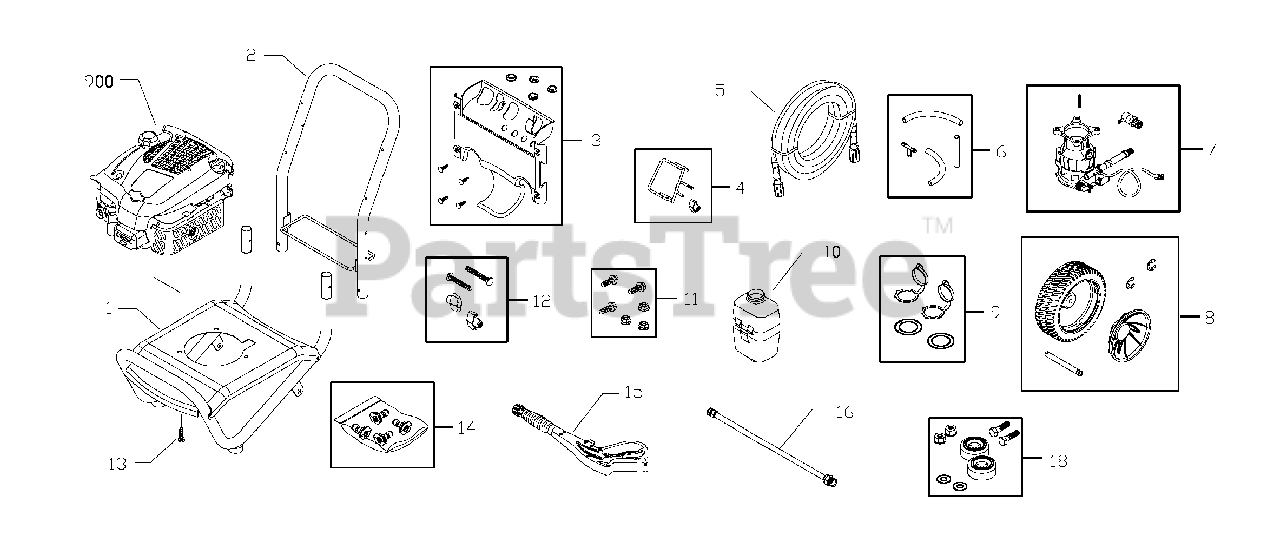

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 201366GS

ASSEMBLY, Base

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204222GS

ASSEMBLY, Handle, Wireform
(Superseded to 208690GS)

$130.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202007GS

KIT, Billboard w/Decals & Clips

$67.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIPS, Tree

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201661GS

KIT, Gun Holder

$36.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 196813GS

KIT, Hose/Tee

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 198164GS

ASSEMBLY, Pump
(Superseded to 206376GS)

$385.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

--

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 201394GS

KIT, Wheel
(Superseded to 202483GS)

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 200519GS

HUBCAP

$19.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 201313GS

AXLE

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202008GS

KIT, Cap Chem Tank

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195190GS

ASSEMBLY, Tank Chemical

$27.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192980GS

KIT, Valve

$17.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 75246GS

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 199098GS

KIT, Nozzles
(Superseded to 313046GS)

$29.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983XGS

NOZZLE, QC, Yellow

$10.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC, White

$10.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 199117GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

900

-----

*ENGINE

$

$

Not available

--

Briggs & Stratton 201837GS

MANUAL, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

KIT, Tag/Warning, Srv
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Murray 794693

LABEL, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 794697

COVER, Static/Label Assembly
(Superseded to 795618)

Note: (Not Illustrated)

$59.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202251GS

GRIP

Note: (Not Illustrated)

$8.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201830GS

DECAL, Shroud

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 87815GS

GOGGLES

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6048

KIT, O-Ring
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
