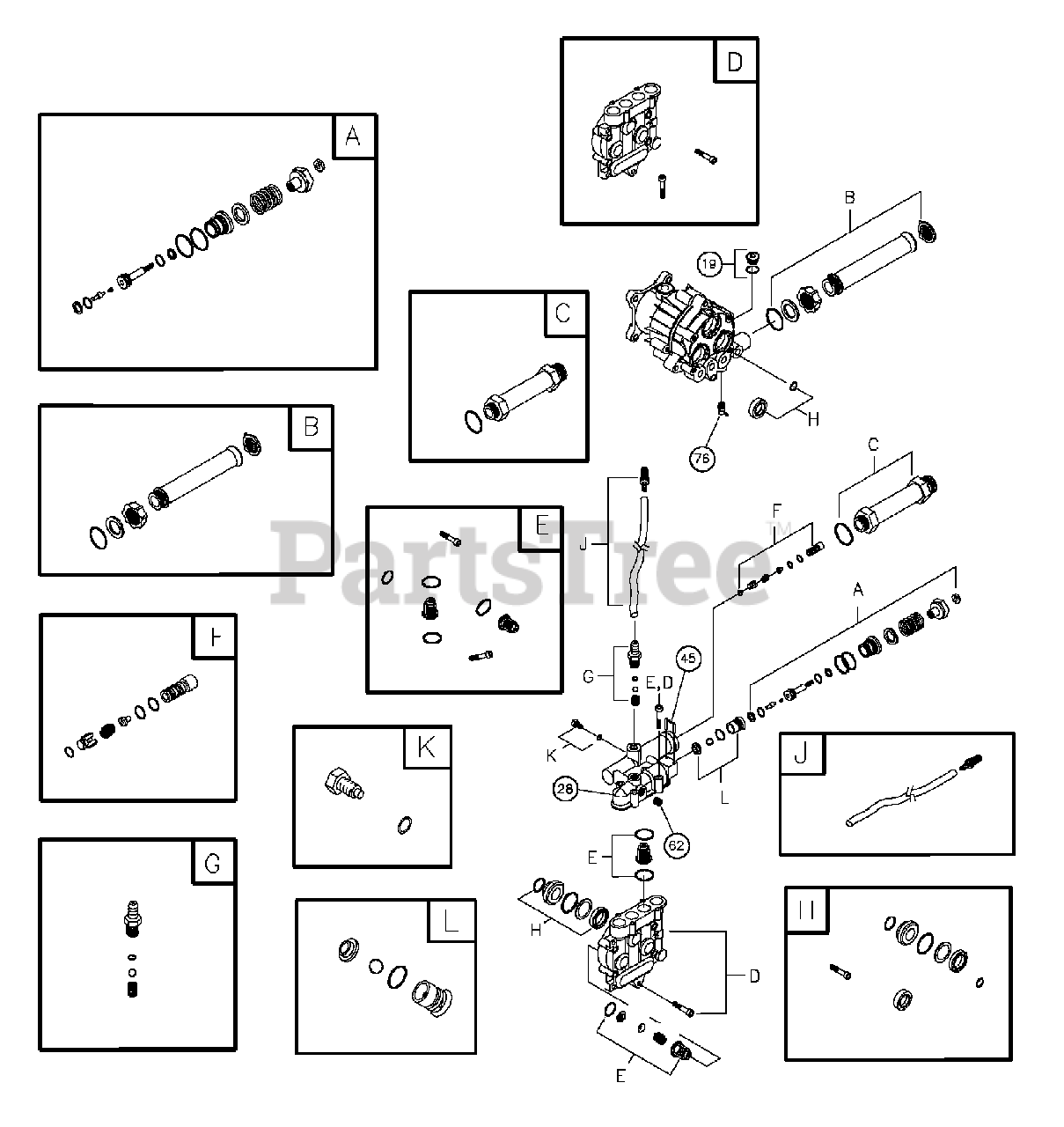

020295-0 - Troy-Bilt 3,000 PSI Pressure Washer Pump Parts Diagram

3,000 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 190574GS

MANIFOLD
(Superseded to 190627GS)

$100.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

62

Briggs & Stratton 190581GS

CAP,1/8

$7.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 15

0

A

Briggs & Stratton 190594GS

*KIT, Unloader

$81.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 190588GS

*KIT, Water Inlet, Anodized

$69.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 190589GS

*KIT, Outlet, Anodized

$41.99

$

In Stock, only 1 left!

0

D

Briggs & Stratton 193808GS

*KIT, Head Brass

$145.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 193806GS

*KIT, Check Valves

$35.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 190592GS

*KIT, Inlet Check

$20.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 190593GS

*KIT, Chemical Injection

$

$

Not available

H

Briggs & Stratton 193807GS

*KIT, Seal Set

$

$

Not available

J

Briggs & Stratton 189971GS

*KIT, Chemical Hose

$

$

Not available

K

Briggs & Stratton 193971GS

*KIT, Pipe Fitting

$7.99

$

In Stock, only 1 left!

0

L

Briggs & Stratton 193972GS

*KIT, Unloader Seat

$62.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 190585GS

OIL BOTTLE

Note: (Not Illustrated)

$15.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton B2384GS

FILTER, Inlet

Note: (Not Illustrated)

$4.49

$

In Stock, only 3 left!

0
