020307-0 - Diamond 3,100 PSI Pressure Washer Main Unit Parts Diagram

3,100 PSI Pressure Washer

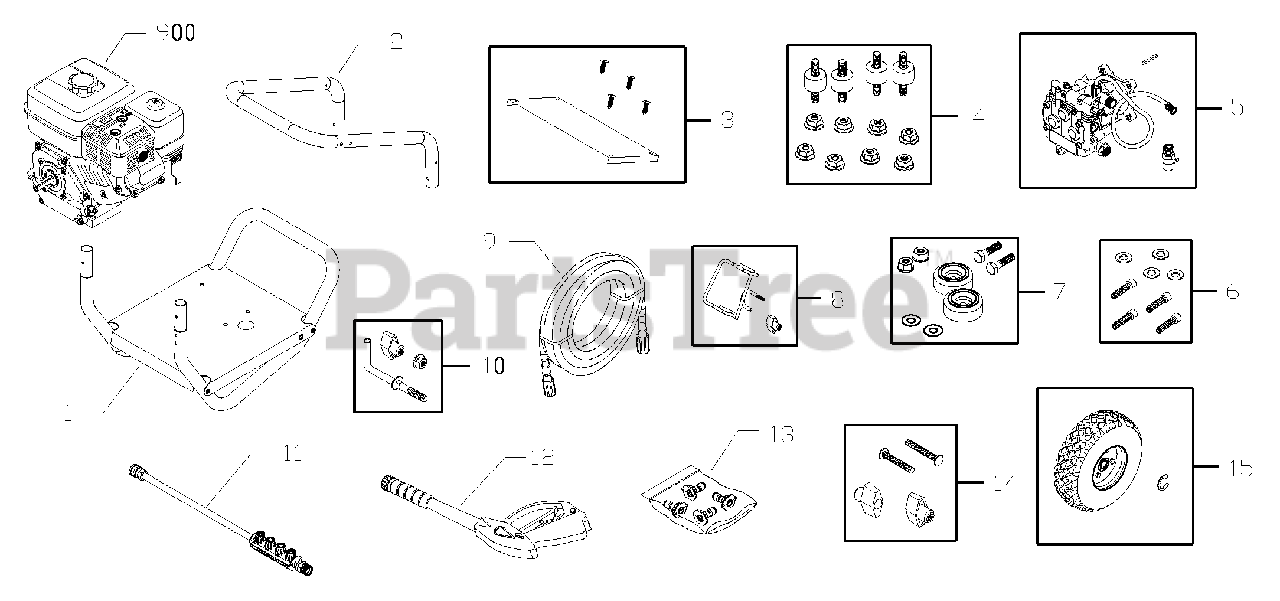

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 203048GS

ASSY, Base

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton K201499GS

HANDLE

$

$

Not available

3

Briggs & Stratton 203047GS

KIT, Billboard w/Decal & Clips

$48.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

KIT, Engine Mounting Hardware

$29.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 198347GS

ASSY, Pump
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

5

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192553GS

KIT, Vibration Mount

$16.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 201661GS

KIT, Gun Holder

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 203022GS

HOSE
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 194264GS

KIT, Hook

$5.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 192198GS

EXTENSION, w/Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 198690GS

KIT, Nozzle

$36.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 198841GS

Nozzle, QC, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 195983AAGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 195983ABGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 195983ADGS

Nozzle, QC, White

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 194509GS

KIT, Wheel

$52.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 203788GS

MANUAL, Operator's

Note: Not Illustrated:

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated:

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated:

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 191267SGS

AXLE

Note: Not Illustrated:

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199571GS

DECAL, Honda Choke

Note: Not Illustrated:

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200672GS

DECAL, Caution Hearing

Note: Not Illustrated:

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 195015GS

KIT, Tag/Warning Srv

Note: Not Illustrated:

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Optional Accessory

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessory

$12.99

$

In Stock, only 2 left!

0
