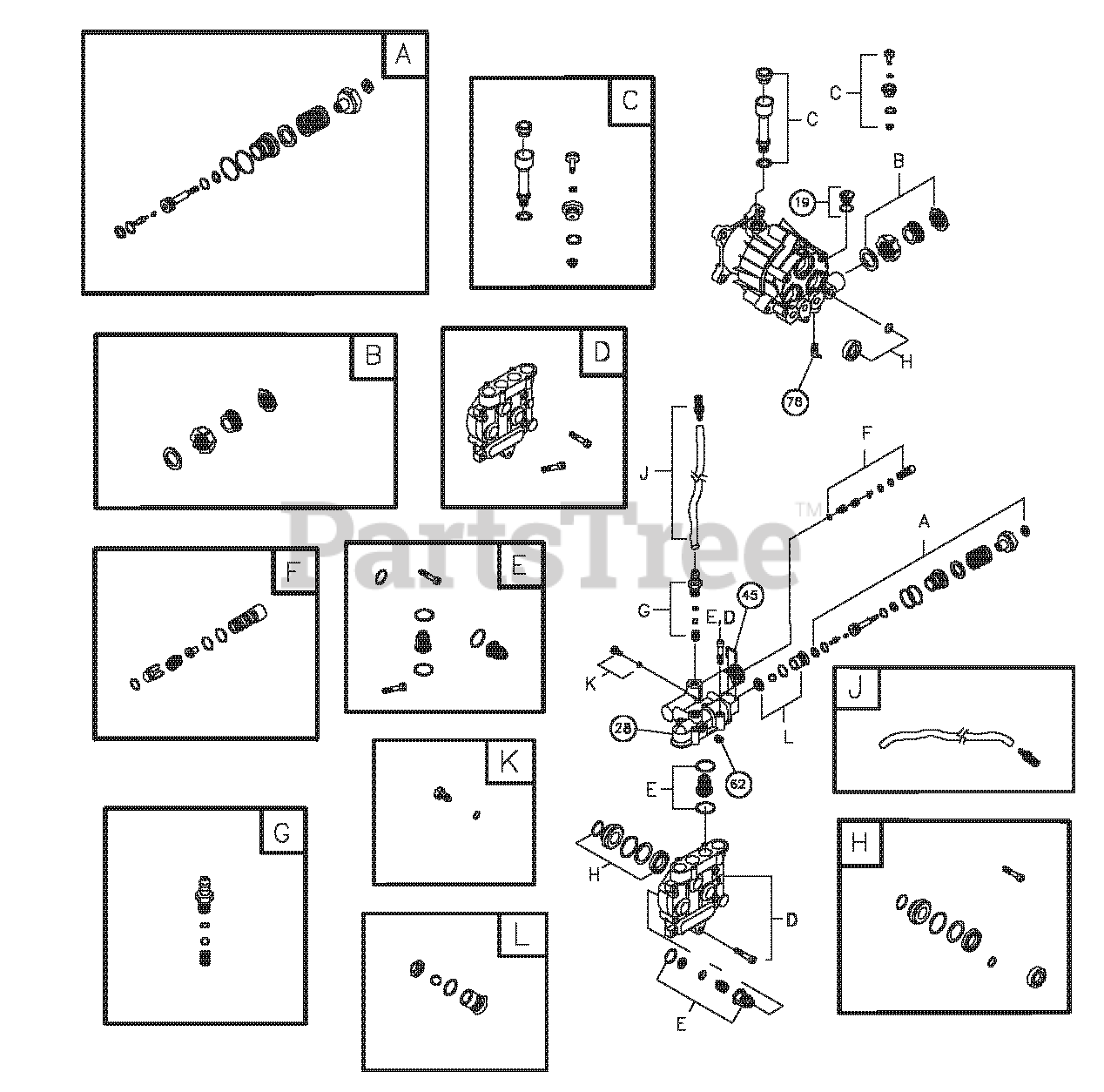

020321-0 - Briggs & Stratton 2,900 PSI Pressure Washer Pump Parts Diagram

2,900 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 198102GS

MANIFOLD
(Superseded to 190673GS)

$

$

Not available

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

62

Briggs & Stratton 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 11

0

A

Briggs & Stratton 190594GS

KIT, Unloader

$81.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 190670GS

KIT, Water Inlet

$40.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 190669GS

KIT, Breather Tube

$47.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 193808GS

KIT, Head Brass

$145.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 193806GS

KIT, Check Valves

$

$

Not available

F

Briggs & Stratton 190592GS

KIT, Inlet Check

$20.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 190593GS

KIT, Chemical Injection

$

$

Not available

H

Briggs & Stratton 193807GS

KIT, Seal Set

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, Chemical Hose

$

$

Not available

K

Briggs & Stratton 193971GS

KIT, Pipe Fitting

$7.99

$

In Stock, only 1 left!

0

L

Briggs & Stratton 193972GS

KIT, Unloader Seat

$62.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 190585GS

OIL BOTTLE

Note: (Not Illustrated)

$15.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton B2384GS

FILTER, Inlet

Note: (Not Illustrated)

$4.49

$

In Stock, only 1 left!

0
