020325-0 - Briggs & Stratton 3,200 PSI Pressure Washer Main Unit Parts Diagram

3,200 PSI Pressure Washer

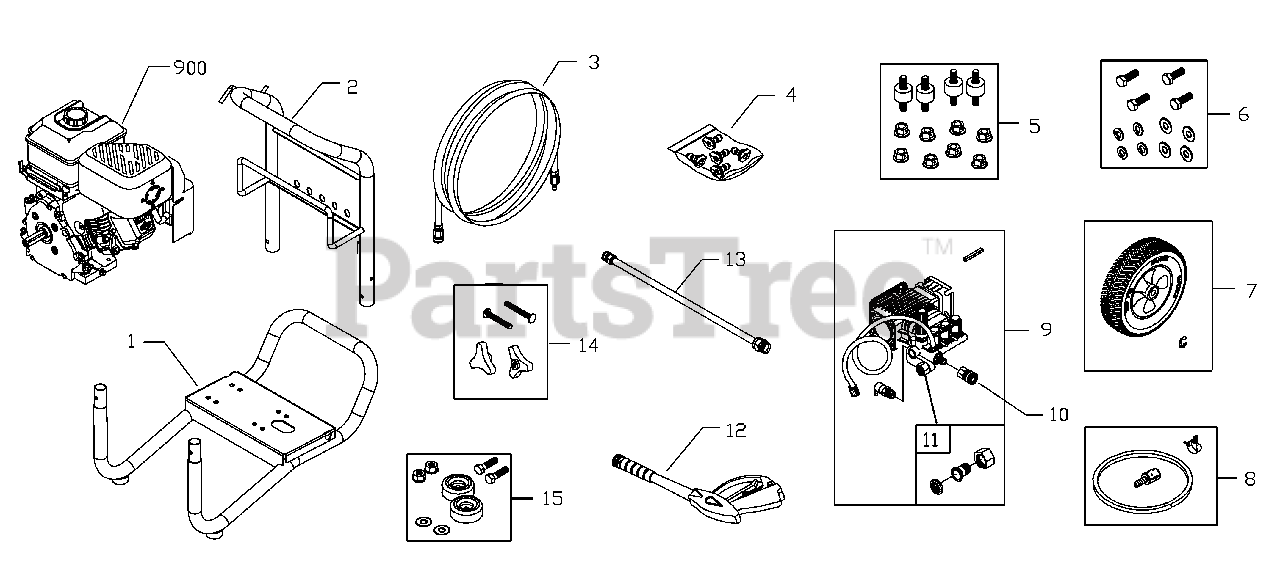

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M204417GS

BASE, w/Mounts

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M201453GS

HANDLE

$161.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203301GS

HOSE

$198.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205380GS

KIT, Spray Tips

$35.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 195983NGS

Nozzle, QC, Red

$9.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 195983PGS

Nozzle, QC, Yellow

$10.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 195983QGS

Nozzle, QC, Green

$10.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 195983RGS

Nozzle, QC, White

$10.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton 195846ZZGS

Nozzle, QC, Black

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192134GS

KIT, Engine Mounting Hardware

$29.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 202771GS

KIT, Pump Mounting Hardware

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 202388GS

KIT, Wheel

$67.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 192796GS

KIT, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202772GS

ASSY, Pump

$682.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194298GS

Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 95458GS

FITTING, Quick Connect
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 199310GS

KIT, Garden Hose Inlet

$12.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 199956GS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 200595GS

WAND, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

14

Briggs & Stratton 203040GS

KIT, Handle Fastening

$6.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

900

§

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 203293GS

MANUAL, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 191267SGS

AXLE

Note: Items Not Illustrated

$36.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 30809GS

GROMMET

Note: Items Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 8

0

900

Briggs & Stratton 87815GS

GOGGLES

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 695755

KNOB, Throttle

Note: Items Not Illustrated

$11.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 203319GS

DECAL, Unit

Note: Items Not Illustrated

$31.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 204060GS

DECAL, Air Cleaner

Note: Items Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 200658GS

DECAL, Recoil

Note: Items Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194256GS

KIT, Tag Warning, w/Clip
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 3 left!

0

900

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
