020330-0 - Briggs & Stratton 3,700 PSI Pressure Washer Main Unit Parts Diagram

3,700 PSI Pressure Washer

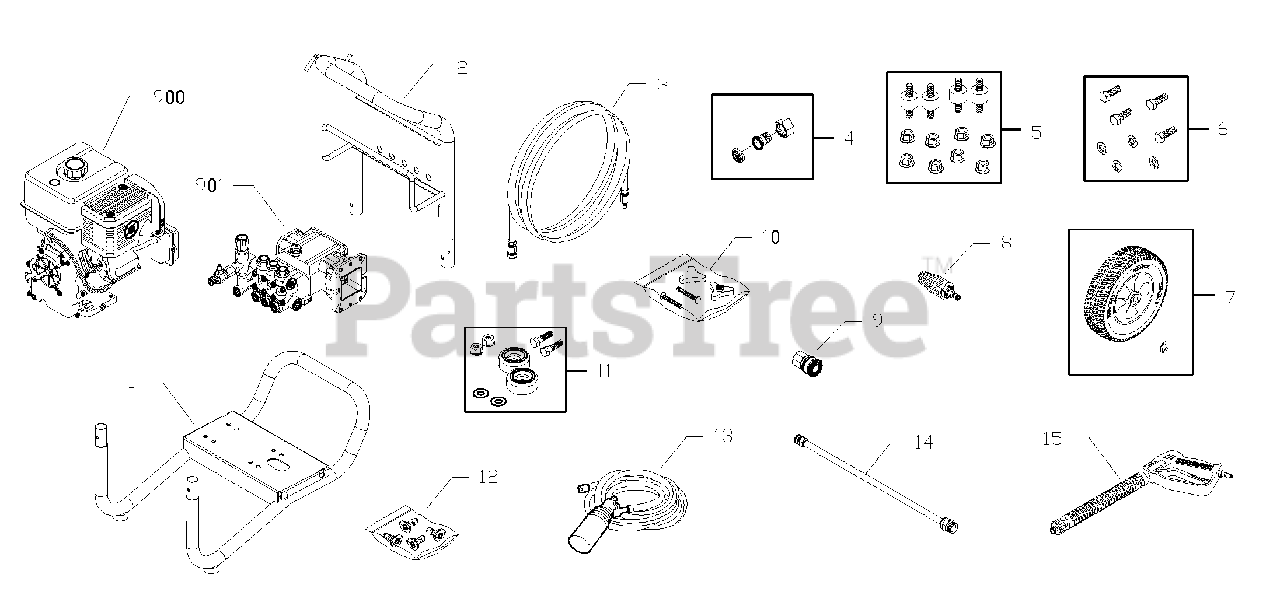

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 204874GS

BASE

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 203620GS

HANDLE

$347.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202016GS

HOSE

$217.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 204886GS

KIT, Connector, Hose, Garden

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B2384GS

Filter, Garden Hose

$4.49

$

In Stock, only 3 left!

0

5

Briggs & Stratton 195294GS

KIT, Engine Hardware

$23.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 192132GS

KIT, Pump Hardware

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 204876GS

KIT, Wheel

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204284GS

E-Ring

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 195891EGS

NOZZLE, Turbo

$113.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 95458GS

FITTING, Quick Connect
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 204288GS

KIT, Handle Fastening

$8.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 204171GS

KIT, Nozzle, QC
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195846AGS

Nozzle, QC, Red
(Superseded to 195983AGS)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195846BGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195846CGS

Nozzle, QC, Green
(Superseded to 195983CGS)

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195846DGS

Nozzle, QC, White

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 203706GS

DISPENSER, Soap

$41.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 193814GS

ASSY, Wand, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

900

-----

** ENGINE

$

$

Not available

901

-----

* PUMP, 66DX40G1I

$

$

Not available

--

Briggs & Stratton 191267GS

AXLE

Note: (Not Illustrated)

$44.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 30809GS

GROMMET

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 87815GS

GOGGLES

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 63281GS

KEY, Square
(Superseded to 703890)

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 194513GS

VALVE, Thermal Relief

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204324GS

FITTING, Tee

Note: (Not Illustrated)

$44.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204326GS

FITTING, Nipple

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203700GS

VALVE, Easy Start

Note: (Not Illustrated)

$57.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204322GS

FITTING, Elbow

Note: (Not Illustrated)

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 791745

KIT, Fuel Line w/Clamps (cut to fit)

Note: (Not Illustrated)

$10.99

$

In Stock, Qty 7

0

--

Briggs & Stratton 194256GS

KIT, Hang, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203676GS

DECAL, Unit

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6048

KIT, O-Ring
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
