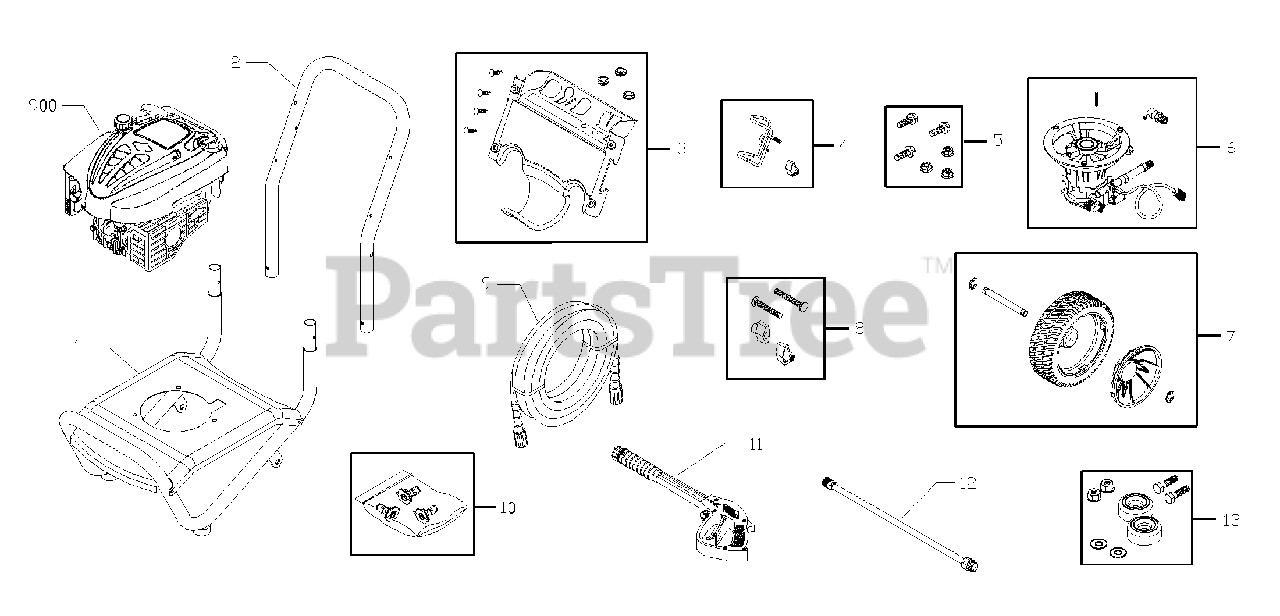

020337-0 - Troy-Bilt 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 201366GS

ASSY, Base

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P199110GS

HANDLE
(Superseded to 199110BVGS)

$85.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 201371GS

KIT, Billboard w/Clips & Decals

$63.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201661GS

KIT, Gun Holder

$36.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192649GS

KIT, Pump Mounting Hardware

$12.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 202605GS

ASSY, Pump

$328.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

7

Briggs & Stratton 201394GS

KIT, Wheel
(Superseded to 202483GS)

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 200519GS

Hubcap

$19.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 201313GS

Axle

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 201324GS

KIT, Nozzles

$22.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

Nozzle, QC, Green

$10.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200595GS

EXTENSION
(Superseded to 706595)

$47.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 203777GS

MANUAL, Operator’s
(Superseded to 206208GS)

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201331GS

DECAL, 6.75HP

Note: Parts Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 790037

COVER, Static/Label Assy

Note: Parts Not Illustrated

$

$

Not available

--

Briggs & Stratton 87815GS

GOGGLES

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

KIT, Tag/Warning Service
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6048

KIT, O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, only 4 left!

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
