020350-0 - Troy-Bilt 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

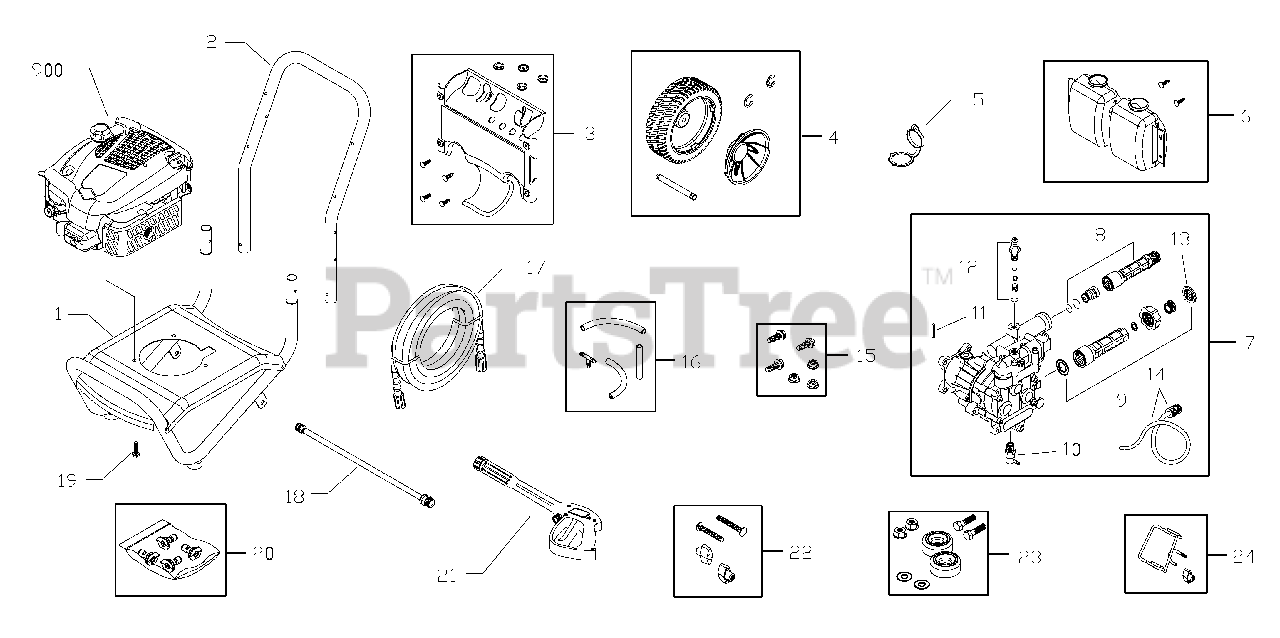

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 201366GS

Base, w/Mounts

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P199110GS

Handle
(Superseded to 199110BVGS)

$85.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202007GS

Kit, Billboard w/Decals & Clips

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201394GS

Kit, Wheel
(Superseded to 202483GS)

$31.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 200519GS

Hubcap

$19.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 201313GS

Axle

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3222AGS

Cap, Chemical Tank, A

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3222BGS

Cap, Chemical Tank, B

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205366GS

Kit, Assy, Chemical Tank w/Clips

$96.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192980GS

Kit, Valve

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 206376GS

Assy, Pump, Complete

$385.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 206375GS

Kit, Outlet

$120.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 206374GS

Kit, Water Inlet

$23.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

11

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

13

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

14

Briggs & Stratton 189971GS

Kit, Chemical

$

$

Not available

15

Briggs & Stratton 192131GS

Kit, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196813GS

Kit, Hose/Tee

$9.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 196138GS

Hose
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 200595GS

Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

19

Briggs & Stratton 75246GS

HHS, Trilobular, 3/8-16 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 199098GS

Kit, Nozzles
(Superseded to 313046GS)

$29.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195983AAGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195983XGS

Nozzle, QC, Yellow

$10.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 195983RGS

Nozzle, QC, White

$10.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 201661GS

Kit, Gun Holder, Weldment

$36.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 205312GS

Manual, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194256GS

Kit, Tag/Warning. Service
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

900

Murray 794693

Label, Warning

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 206791GS

Decal, Shroud

Note: Parts Not Illustrated

$19.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 87815GS

Goggles

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

Kit, O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, Qty 7

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0
