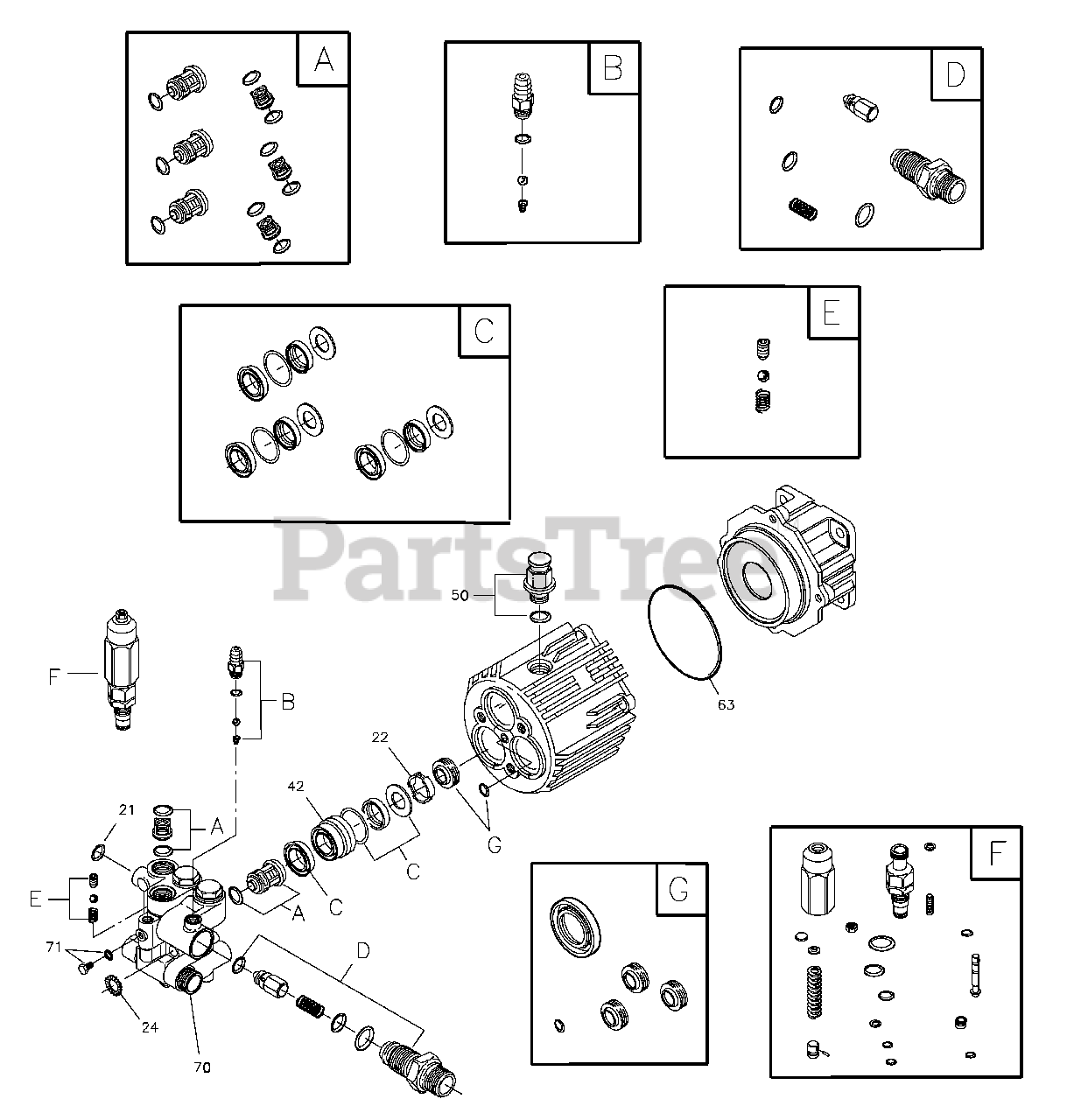

020364-1 - Briggs & Stratton 3,400 PSI Pressure Washer Pump Parts Diagram

3,400 PSI Pressure Washer

Pump Parts Diagram

  • Title

21

Briggs & Stratton 194434GS

O-Ring

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 190639GS

Spacer

$6.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 190640GS

Washer

$4.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 190646GS

Piston, Guide

$42.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198160GS

Vent Cap, with O-Ring

$10.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 194435GS

O-Ring

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 190654GS

Pump Head

$296.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 190655GS

Grub Screw & Washer

$8.49

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 190657GS

Kit, Check Valve

Note: Service kits include all parts shown within the box.

$103.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 192914GS

Kit, Chemical Inject

Note: Service kits include all parts shown within the box.

$26.99

$

In Stock, Qty 5

0

C

Briggs & Stratton 190660GS

Kit, Seal Water

Note: Service kits include all parts shown within the box.

$120.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 194426GS

Kit, Injector

Note: Service kits include all parts shown within the box.

$117.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 194427GS

Kit, Ball & Spring

Note: Service kits include all parts shown within the box.

$9.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 193126GS

Kit, Unloader

Note: Service kits include all parts shown within the box.

$161.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 194425GS

Kit, Seal Oil

Note: Service kits include all parts shown within the box.

$62.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 190656GS

Oil Bottle

Note: Parts Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton B2384GS

Filter, Inlet

Note: Parts Not Illustrated

$4.99

$

In Stock, Qty 9

0
