020378-02 - Briggs & Stratton 2,500 PSI Pressure Washer Main Unit (314019) Parts Diagram

2,500 PSI Pressure Washer

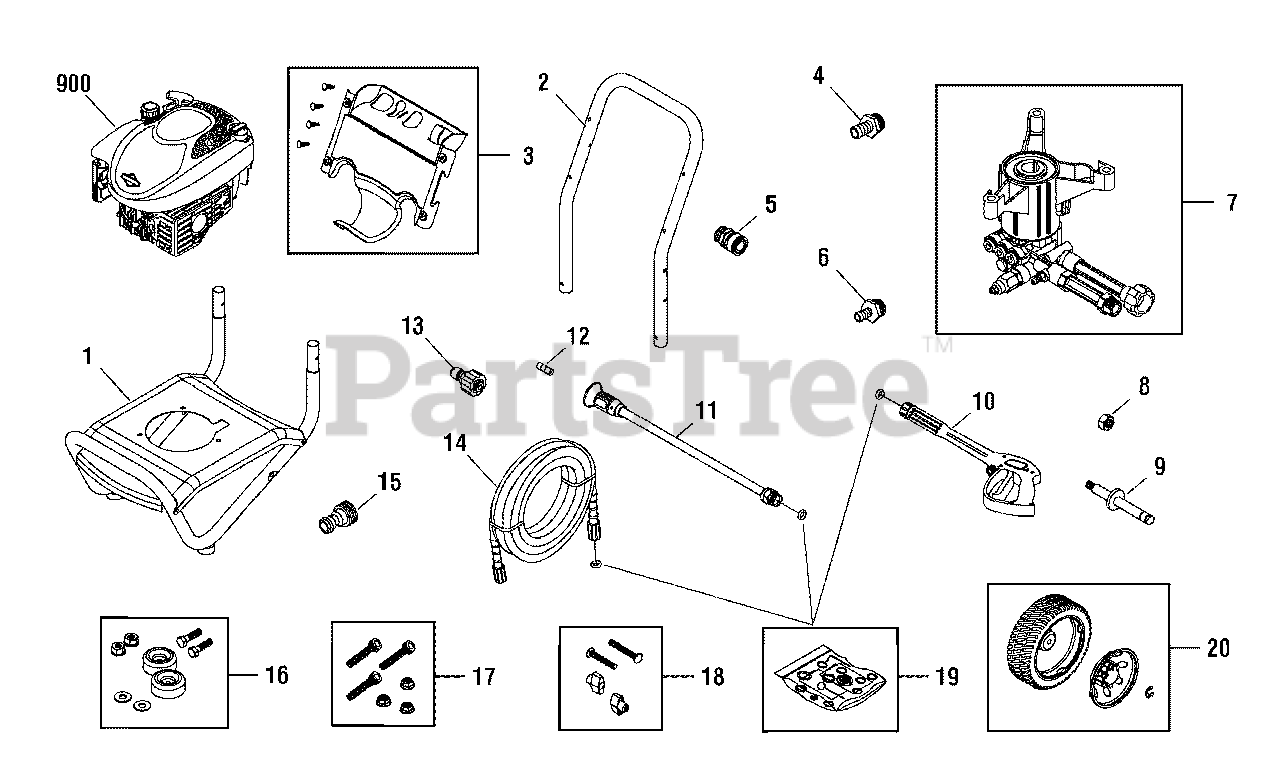

Main Unit (314019) Parts Diagram

  • Title

1

Briggs & Stratton 312028GS

BASE

$

$

Not available

2

Briggs & Stratton 199110BRGS

HANDLE

$80.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206442GS

BILLBOARD

$56.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 192015GS

FITTING

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 95518GS

QUICK CONNECT
(Superseded to 312981GS)

$42.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192014GS

FITTING

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 705445

PUMP

$241.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 703347

NUT

$4.99

$

In Stock, Qty 12

0

9

Briggs & Stratton 313032GS

AXLE
(Superseded to 315134GS)

$30.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 319853GS

GUN
(Superseded to 84003228)

$

$

Not available

11

Briggs & Stratton 205015CGS

WAND, Adjustable

$71.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton B1236DGS

ORIFICE

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 95519GS

QUICK CONNECT
(Superseded to 312981GS)

$42.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202017GS

HOSE

$

$

Not available

15

Briggs & Stratton 95456GS

QUICK CONNECT
(Superseded to 7175187GS)

$17.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 192310GS

KIT, Vibration Mount

$10.99

$

In Stock, Qty 5

0

17

Briggs & Stratton 315139GS

KIT Hardware, Pump Mounting

$10.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.99

$

In Stock, Qty 9

0

19

Briggs & Stratton 705002

KIT, O-Ring

$27.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 203083GS

KIT, Wheel

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 704293

E-RING

$4.49

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 705076

HOSE, Chemical

Note: (Not Illustrated)

$13.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207398GS

DECAL, Shroud

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200171GS

TAG, Warning

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0
