020387-0 - Briggs & Stratton 2,200 PSI Pressure Washer Main Unit (209132) Parts Diagram

2,200 PSI Pressure Washer

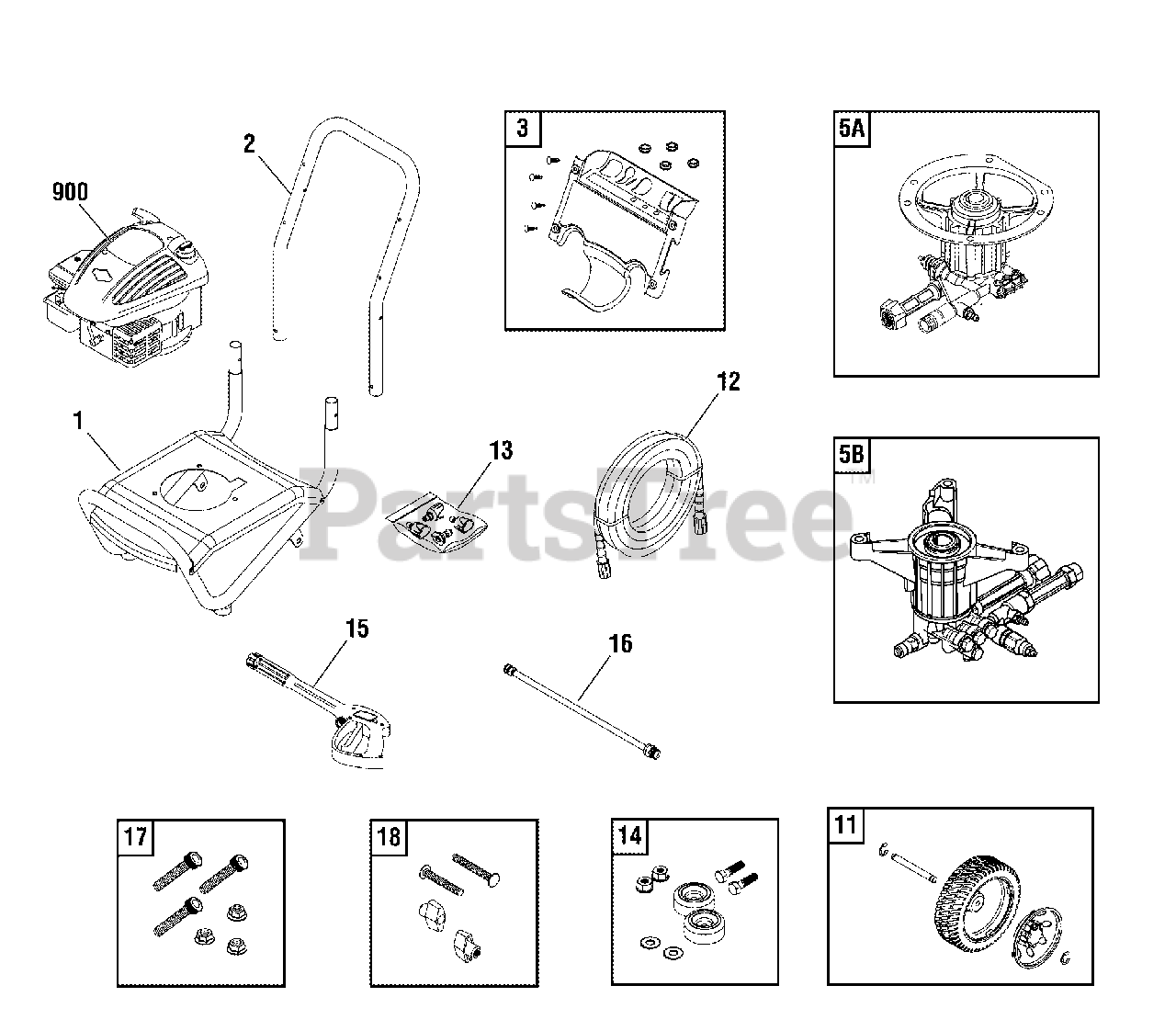

Main Unit (209132) Parts Diagram

  • Title

1

Briggs & Stratton 209570GS

BASE, w/Mounts

$314.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton J199110GS

HANDLE
(Superseded to 199110BRGS)

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209590GS

BILLBOARD, w/Decals & CLIPS

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIPS, Tree

$4.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 206383GS

PUMP

Note: (NLA - Order Ref. No. 5B)

$

$

Not available

5B

Briggs & Stratton 706384

PUMP

$271.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 209568GS

KIT, Wheel
(Superseded to 203083GS)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205413GS

AXLE
(Superseded to 312393GS)

$40.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 204971GS

KIT, NOZZLES

$35.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC, White

$10.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 195983XGS

NOZZLE, QC, Yellow

$10.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

17

Briggs & Stratton 192525GS

KIT, Pump Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 194256GS

KIT, Tag/Warning, Service
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 794693

DECAL, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 793973

ASSEMBLY, Shroud/Label

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 209121GS

DECAL, Shroud

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 6048

PUMP SAVER
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 6039

KIT, O-Ring Maintainence

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
