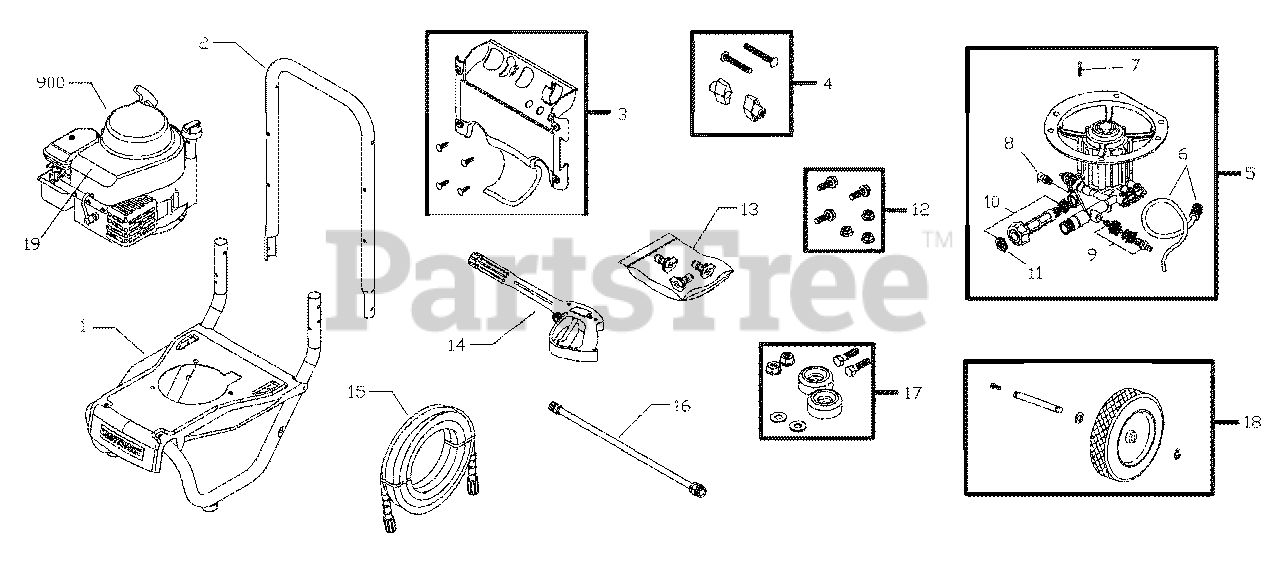

020412-0 - Craftsman 2,200 PSI Pressure Washer Main Unit (310396) Parts Diagram

2,200 PSI Pressure Washer

Main Unit (310396) Parts Diagram

  • Title

1

Briggs & Stratton 206033GS

BASE (BASE)

$

$

Not available

2

Briggs & Stratton R204650GS

HANDLE (POIGNÉE)

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 310392GS

BILLBOARD (PANNEAU D’AFFICHAGE)

$100.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS (AGRAFES)

$3.99

$

In Stock, Qty 8

0

4

Briggs & Stratton B2203GS

KIT-HARDWARE HANDLE (ENSEMBLE-QUINCAILLERIE DE POIGNÉE)

$5.49

$

In Stock, only 2 left!

0

5

Briggs & Stratton 206383GS

PUMP (POMPE)

$

$

Not available

6

Briggs & Stratton 189971GS

KIT-CHEMICAL HOSE (ENSEMBLE-BOYAU DE PRODUITS CHIMIQUES)

$

$

Not available

7

Briggs & Stratton 23139GS

KEY (CLÉ)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 208673GS

VALVE-THERMAL RELIEF (SOUPAPE-DÉCHARGE THERMIQUE)

$14.99

$

In Stock, Qty 15

0

9

Briggs & Stratton 200279GS

KIT-CHEMICAL INJ (ENSEMBLE-INJECTION DE PRODUITS CHIMIQUES)

$22.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 200278GS

KIT-WATER INLET (ENSEMBLE-ENTRÉE D’EAU)

$

$

Not available

11

Briggs & Stratton B2384GS

FILTER-GARDEN HOSE (FILTRE-BOYAU D’ARROSAGE)

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 192525GS

KIT-HARDWARE, ENGINE MOUNTING (ENSEMBLE-QUINCAILLERIE, MONTAGE DE MOTEUR)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 201324GS

KIT-QC NOZZLES (ENSEMBLE-BUSES RACCORDS RAPIDES)

$22.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 195983AEGS

NOZZLE-QC RED (BUSE-RACCORDS RAPIDES ROUGE)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

NOZZLE-QC GREEN (BUSE-RACCORDS RAPIDES VERT)

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK (BUSE-RACCORDS RAPIDES NOIRE)

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204627GS

GUN (PISTOLET)
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196006GS

HOSE (BOYAU)
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 200595GS

EXTENSION-QC (RALLONGE-RACCORDS RAPIDES)
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

17

Briggs & Stratton 192310GS

MOUNT-VIBRATION (MONTANT-ANTIVIBRATILE)

$9.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 208402GS

KIT-WHEEL (ENSEMBLE-ROUE)

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7026257MA

WASHER-WAVE (RONDELLE-ONDULÉE)

$4.49

$

In Stock, only 2 left!

0

--

Briggs & Stratton 192050GS

E-RING (ANNEAU EN E)
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 310386GS

DECAL (DÉCALQUE)

$31.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 10T702-0114-B1

* ENGINE (MOTEUR)

$

$

Currently unavailable

--

Briggs & Stratton 310389GS

MANUAL-OPERATOR’S (MANUEL-UTILISATION)

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061BGS

OIL BOTTLE (BOUTEILLE D’HUILE)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 200658GS

DECAL-RECOIL (DÉCALQUE, RECULER)

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Murray 794693

LABEL-WARNING (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195015GS

TAG-WARNING (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191922GS

O-RING MAINTENANCE (ENTRETIEN DU JOINT TORIQUE)

Note: (Optional Accessory)

$18.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 7167300GS

House Wash Concentrate (Concentré de nettoyant ménager)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167301GS

Deck Wash Concentrate (Concentré de nettoyant de pont)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (Concentré de nettoyant de véhicule/bateau)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167303GS

Degreaser Concentrate (Concentré de dégraissant)

Note: (Optional Accessory)

$

$

Currently unavailable
