020412-1 - Craftsman 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

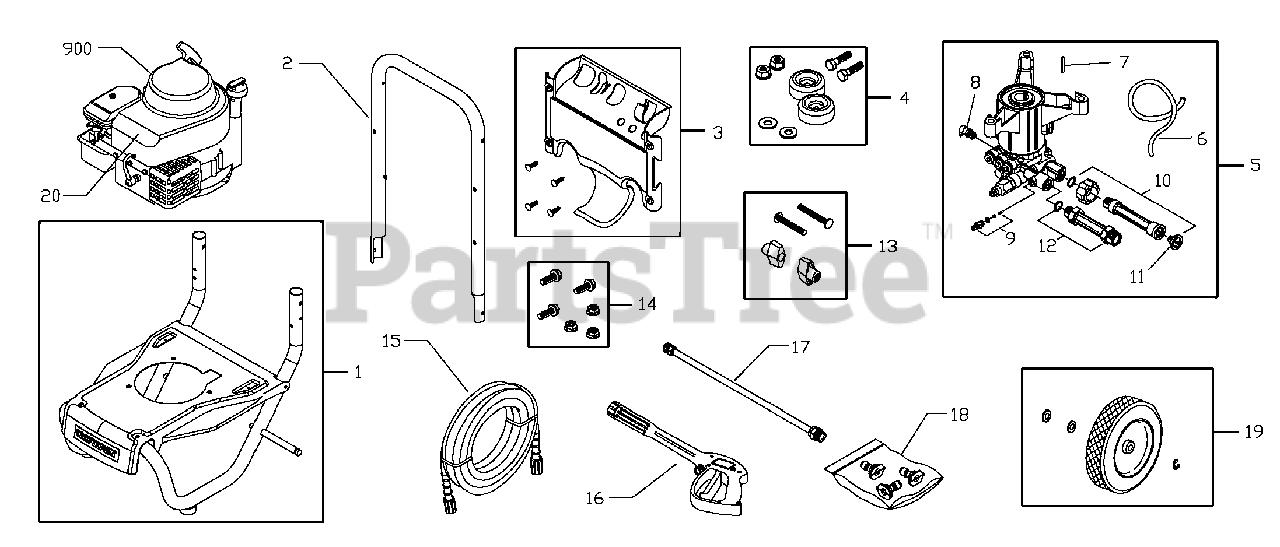

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 312011GS

BASE (BASE)

$

$

Not available

--

Briggs & Stratton 205411GS

AXLE (GLISSER)

$2.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204650BUGS

HANDLE (POIGNÉE)

$69.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 310392GS

BILLBOARD (PANNEAU D’AFFICHAGE)

$100.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS (AGRAFES)

$3.99

$

In Stock, Qty 8

0

4

Briggs & Stratton 192310GS

MOUNT, Vibration (MONTANT-ANTIVIBRATILE)

$9.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 202274GS

PUMP (POMPE)
(Superseded to 207365GS)

$234.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 310975GS

HOSE, Chemical (BOYAU-CHIMIQUES)
(Superseded to 705076)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23139GS

KEY (CLÉ)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 208673GS

VALVE, Thermal Relief (SOUPAPE-DÉCHARGE THERMIQUE)

$14.99

$

In Stock, Qty 15

0

9

Briggs & Stratton 192914GS

KIT, Chemical Injection (ENSEMBLE-INJECTION DE PRODUITS CHIMIQUES)

$24.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 201496GS

KIT, Water Inlet (ENSEMBLE-ENTRÉE D’EAU)

$46.99

$

In Stock, Qty 6

0

11

Briggs & Stratton B2384GS

FILTER, Garden Hose (FILTRE-BOYAU D’ARROSAGE)

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 201497GS

FITTING (RACCORD)

$28.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton B2203GS

KIT, Hardware, Handle (ENSEMBLE-QUINCAILLERIE DE POIGNÉE)

$5.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 203526GS

KIT, Hardware, Pump Mounting (ENSEMBLE-QUINCAILLERIE, MONTAGE DE POMPE)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196006GS

HOSE (BOYAU)
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 204627GS

GUN (PISTOLET)
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200595GS

EXTENSION, QC (RALLONGE, RACCORDS RAPIDES)
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 201324GS

KIT, QC Nozzles (ENSEMBLE-BUSES RACCORDS RAPIDES)

$22.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 195983AEGS

NOZZLE, QC Red (BUSE-RACCORDS RAPIDES ROUGE)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

NOZZLE, QC, Green (BUSE-RACCORDS RAPIDES VERT)

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE, QC, Black (BUSE-RACCORDS RAPIDES NOIRE)

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 208402GS

KIT, Wheel (ENSEMBLE-ROUE)

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7026257MA

WASHER, Wave (RONDELLE-ONDULÉE)

$4.49

$

In Stock, only 2 left!

0

--

Briggs & Stratton 192050GS

E-RING (ANNEAU EN E)
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 310386GS

DECAL (DÉCALQUE)

$31.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 10T702-0114-B1

* ENGINE (MOTEUR)

$

$

Currently unavailable

--

Briggs & Stratton 312535GS

MANUAL, Operator's (MANUEL-UTILISATION)

Note: (Not Illustrated) (Articles non illustrés)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061BGS

OIL BOTTLE (BOUTEILLE D’HUILE)

Note: (Not Illustrated) (Articles non illustrés)

$

$

Not available

--

Briggs & Stratton 200658GS

DECAL, RECOIL (DÉCALQUE, RECULER)

Note: (Not Illustrated) (Articles non illustrés)

$8.99

$

Usually ships in 2-12 days

0

--

Murray 794693

LABEL, Warning (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated) (Articles non illustrés)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195015GS

TAG, Warning (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated) (Articles non illustrés)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191922GS

O-RING MAINTENANCE (ENTRETIEN DU JOINT TORIQUE)

Note: (Optional Accessory) (Accessoires en option non illustrés)

$18.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 7167300GS

HOUSE WASH CONCENTRATE (Concentré de nettoyant ménager)

Note: (Optional Accessory) (Accessoires en option non illustrés)

$

$

Currently unavailable

--

Briggs & Stratton 7167301GS

DECK WASH CONCENTRATE (Concentré de nettoyant de pont)

Note: (Optional Accessory) (Accessoires en option non illustrés)

$

$

Currently unavailable

--

Briggs & Stratton 7167302GS

VEHICLE / BOAT WASH CONCENTRATE (Concentré de nettoyant de véhicule/bateau)

Note: (Optional Accessory) (Accessoires en option non illustrés)

$

$

Currently unavailable

--

Briggs & Stratton 7167303GS

DEGREASER CONCENTRATE (Concentré de dégraissant)

Note: (Optional Accessory) (Accessoires en option non illustrés)

$

$

Currently unavailable
